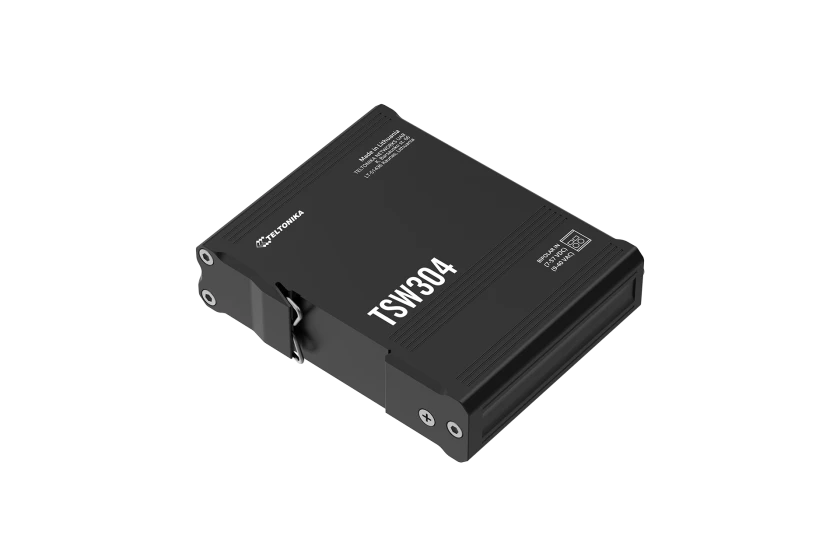

TSW304

Description

ETHERNET
4 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover.

IEEE 802.3 SERIES STANDARDS
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az.

INDUSTRIAL PROTOCOLS
Profinet. Profinet Class A conformance (available with optional order code).

PERFORMANCE SPECIFICATIONS
Bandwidth (Non-blocking) 8 Gbps.
Packet buffer 128 KB.
MAC address table size 2K entries.
Jumbo frame support 9216 bytes.

POWER
Connector 2-pin industrial DC power socket.
Input voltage range 7 – 57 VDC; 9 – 40 VAC.
PoE (passive) Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 – 30 VDC.
Power consumption Idle: 0.26 W / Max: 1.44 W.

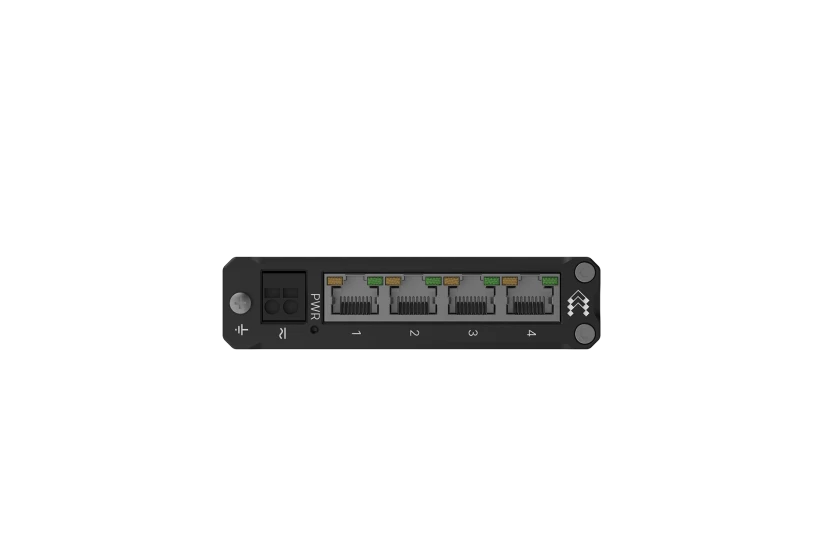

PHYSICAL INTERFACES
Ethernet 4 x RJ45 ports, 10/100/1000 Mbps.
Status LEDs 8 x ETH status LEDs, 1 x Power LED.
Power 1 x 2-pin industrial DC power socket.
Other 1 x Grounding screw.

PHYSICAL SPECIFICATION
Casing material Aluminium housing.
Dimensions (W x H x D) 102 x 25 x 81.5 mm.
Weight 210 g.

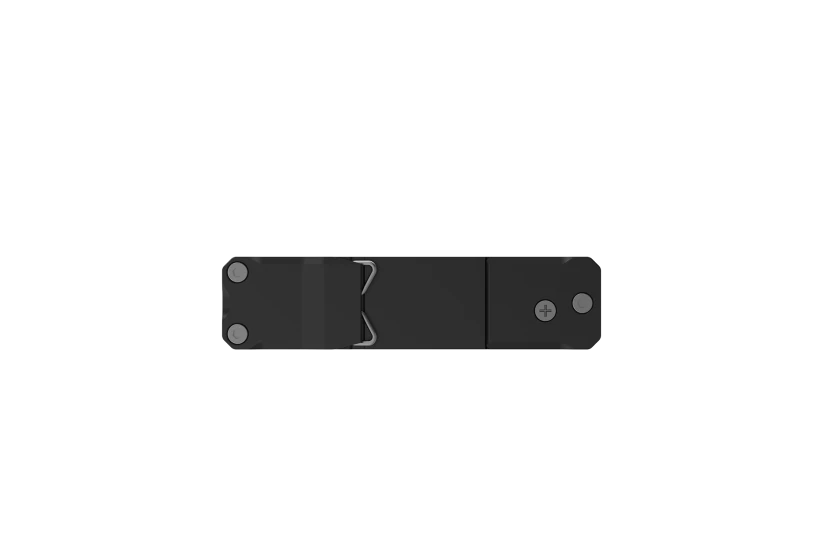

Mounting options Integrated DIN rail bracket; wall mount and flat surface (additional kit needed).

OPERATING ENVIRONMENT
Operating temperature -40 °C to 75 °C.
Operating humidity 5% to 95% non-condensing.
Ingress Protection Rating IP30.

REGULATORY & TYPE APPROVALS
Regulatory CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM.

SAFETY STANDARDS
EN IEC 62368-1:2020+A11:2020.
IEC 60068-2-6:2007 Environmental testing – Part 2-6.
IEC 60068-2-27:2008 Environmental testing – Part 2-27.
IEC 60068-2-31:2008 Environmental testing – Part 2-31.
