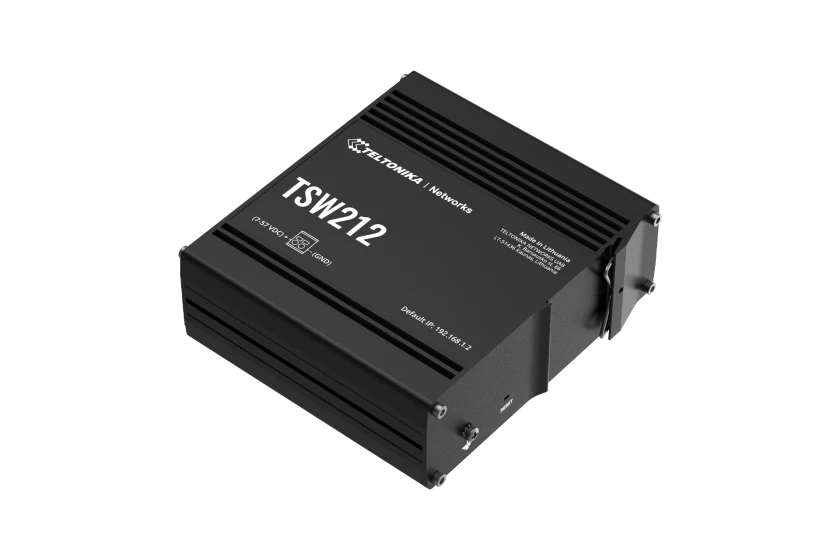

TSW212

Description

ETHERNET
Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover.

FIBRE
2 x SFP ports.

IEEE 802.3 SERIES STANDARDS
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az.

INDUSTRIAL PROTOCOLS
Profinet Class B conformance (available with optional order code).

SERVICES
EtherNet/IP: Yes.

SNMP V2, V3
Yes.

LLDP
Yes.

NETWORK MANAGEMENT
802.1p class of service, 802.1x port-based network access control, 802.1Q VLAN.

NETWORK
MRP client role, MRP manager role.

L2 FEATURES
Loop protection, Forwarding table, VLAN, STP/RSTP.

DHCP
DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards.

PORT SETTINGS
Enable/disable, link speed control, port isolation, EEE (802.3az) management, Port Mirroring.

L3 FEATURES
Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address.

SECURITY
Authentication: PAM — preshared key, Radius & TACACS+, IP & login attempts block.

MAC FILTERING SUPPORT
Allow specific MAC addresses to connect through specified ports, ignore unauthorized or disable the port if an unauthorized MAC address is detected.

QOS
Port priority, DSCP priority, 802.1p priority, TOS.

SCHEDULING METHOD
SP/WFQ/WRR.

BANDWIDTH CONTROL
Rate limiting, storm control.

TRAFFIC SHAPER
Port-based shaping.

DIAGNOSTICS
Cable diagnostic, ping, traceroute, nslookup.

API
Teltonika Networks Web API (beta) support. Expand your device’s possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com.

SYSTEM CHARACTERISTICS
RAM: 128MB, DDR3.
FLASH storage: 16 MB serial flash.

FIRMWARE / CONFIGURATION
WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup.
FOTA: Update FW.
RMS: Update FW/configuration for multiple devices at once.
Keep settings: Update FW without losing current configuration.

FIRMWARE CUSTOMISATION
Operating system: TSWOS (OpenWrt based Linux OS).
Supported languages: Busybox shell, Lua, C, C++.
Development tools: SDK package with build environment provided.

PERFORMANCE SPECIFICATIONS
Bandwidth (Non-blocking): 20 Gbps.
Forwarding rate: 14.88 Mpps.
Packet buffer: 512 KB.
MAC address table size: 8K entries.
Jumbo frame support: 10000 bytes.

POWER
Connector: 2-pin industrial DC power socket.
Input voltage range: 7 – 57 VDC.
Power consumption: Idle: < 2.5 W / Max: 6 W.

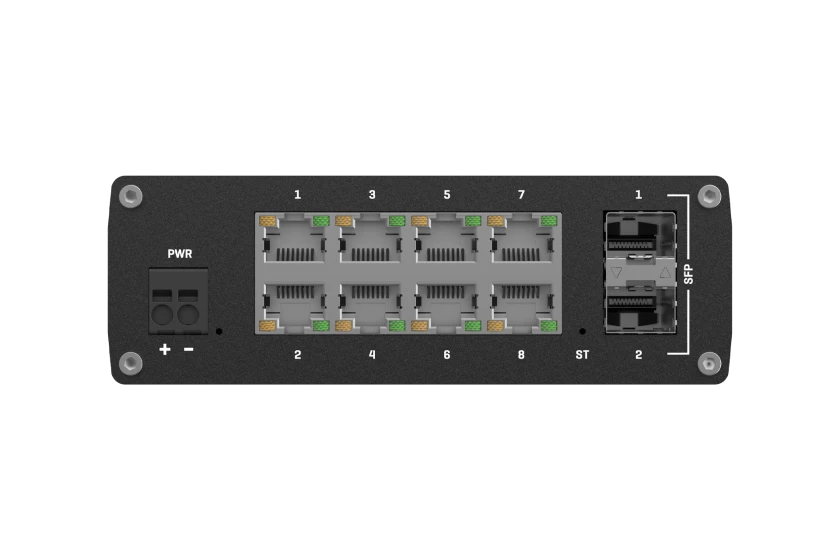

PHYSICAL INTERFACES
Ethernet: 8 x RJ45 ports, 10/100/1000 Mbps.
Fibre: 2 x SFP ports.
Status LEDs: 1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs.
Power: 1 x 2-pin industrial DC power socket.

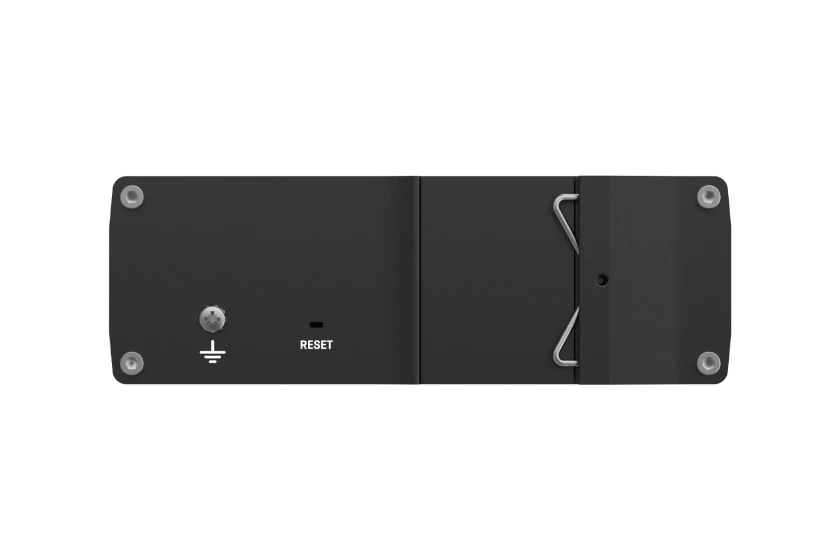

Reset: Software reset button.
Other: 1 x Grounding screw.

PHYSICAL SPECIFICATION
Casing material: Anodized aluminum housing and panels.
Dimensions (W x H x D): 132 x 44.2 x 122.2 mm.
Weight: 615 g.
Mounting options: Integrated DIN rail bracket; wall mount and flat surface (additional kit needed).

OPERATING ENVIRONMENT
Operating temperature: -40 °C to 75 °C.
Operating humidity: 5% to 95% non-condensing.
Ingress Protection Rating: IP30.

REGULATORY & TYPE APPROVALS
Regulatory: CE, UKCA, RCM, ANRT, FCC, IC, CB, WEEE, RoHS, REACH, SDPPI (POSTEL), JATE, Kenya, ICASA, Giteki, NBCT, ICASA, PROFINET, UL Safety.

EMC EMISSIONS & IMMUNITY
Standards: EN 55032:2015 + A11:2020 + A1:2020, EN 55035:2017 + A11:2020, EN IEC 61000-3-2: 2019 + A1:2021, EN 61000-3-3: 2013 + A1:2019 + A2:2021.
ESD: EN 61000-4-2:2009.
Radiated Immunity: EN IEC 61000-4-3:2020.
EFT: EN 61000-4-4:2012.
Surge Immunity (AC Mains Power Port): EN 61000-4-5:2014 + A1:2017.
CS: EN 61000-4-6:2014.
DIP: EN 61000-4-11:2020.

SAFETY
Standards: CE: EN IEC 62368-1:2020 + A11:2020, RCM: AS/NZS 62368.1:2022, CB: IEC 62368-1:2018.

SAFETY (ORDINARY LOCATIONS)
Standards: UL/CSA Safety: UL 62368-1 (3rd Ed., Rev. December 13, 2019), C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019).
