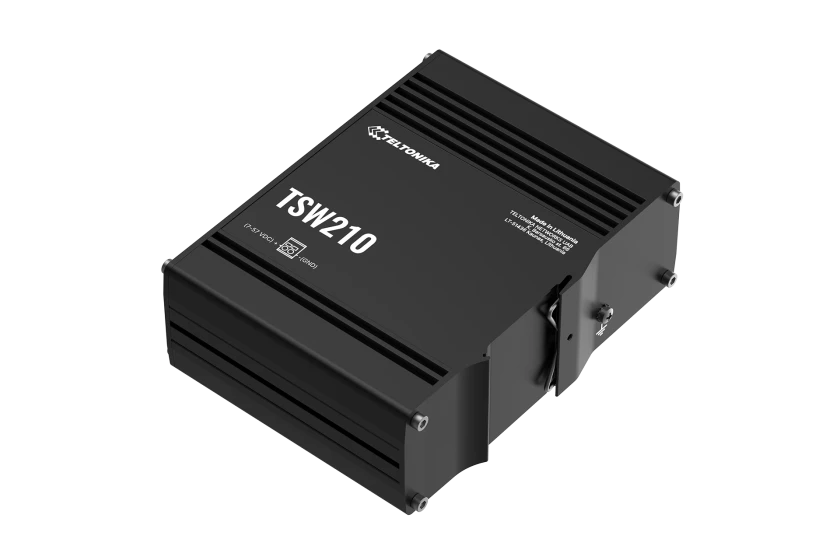

TSW210

Description

ETHERNET
8 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover

FIBRE
2 x SFP ports

IEEE 802.3 SERIES STANDARDS
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

INDUSTRIAL PROTOCOLS
Profinet
Profinet Class A conformance (available with optional order code)

PERFORMANCE SPECIFICATIONS
Bandwidth (Non-blocking)
20 Gbps

Packet Buffer
128 KB

MAC Address Table Size
2K entries

Jumbo Frame Support
9216 bytes

POWER
Connector
2-pin industrial DC power socket

Input Voltage Range
7 – 57 VDC

Power Consumption
Idle: ~1.03 W / Max: 3.71 W

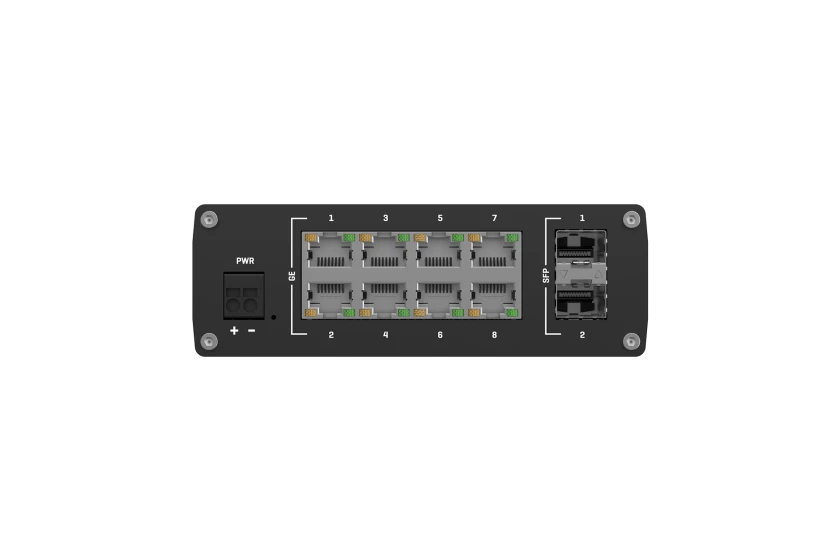

PHYSICAL INTERFACES
Ethernet
8 x RJ45 ports, 10/100/1000 Mbps

Fibre
2 x SFP ports

Status LEDs
1 x Power LED, 16 x ETH status LEDs, 2 x SFP status LEDs

Power
1 x 2-pin industrial DC power socket

Other
1 x Grounding screw

PHYSICAL SPECIFICATION
Casing Material
Full aluminum housing

Dimensions (W x H x D)
132 x 44.2 x 95.1 mm

Weight
500 g

Mounting Options

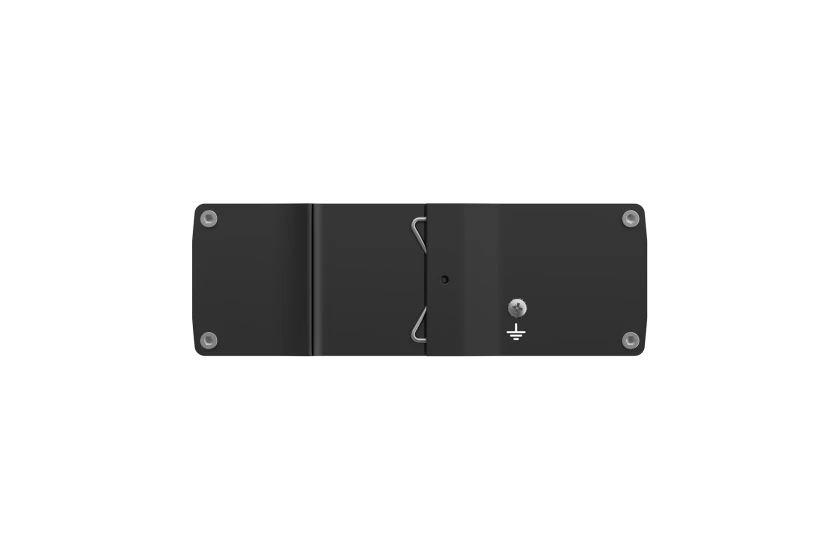

Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)

OPERATING ENVIRONMENT
Operating Temperature
-40 °C to 75 °C

Operating Humidity
10% to 90% non-condensing

Ingress Protection Rating
IP30

REGULATORY & TYPE APPROVALS
Regulatory
CE, UKCA, CITC, ANRT, FCC, IC, RCM, CB, EAC, Kenya, NOM, UL/CSA, Japan, SDPPI (POSTEL)

EMC Emissions & Immunity
Standards
EN 55032:2015 + A1:2020
EN 55035:2017 + A11:2020
EN IEC 61000-3-2:2019 + A1:2021
EN 61000-3-3:2013 + A1:2019

ESD
EN 61000-4-2:2009

EFT
EN 61000-4-4:2012

Surge Immunity (AC Mains Power Port)
EN 61000-4-5:2014 + A1:2017

CS
EN 61000-4-6:2014

DIP
EN IEC 61000-4-11:2020

SAFETY
Standards
IEC 62368-1:2018
EN IEC 62368-1:2020+A11:2020

Safety (Hazardous Locations)
Standards
UL 62368-1
CAN/CSA C22.2 No. 62368-1-19
