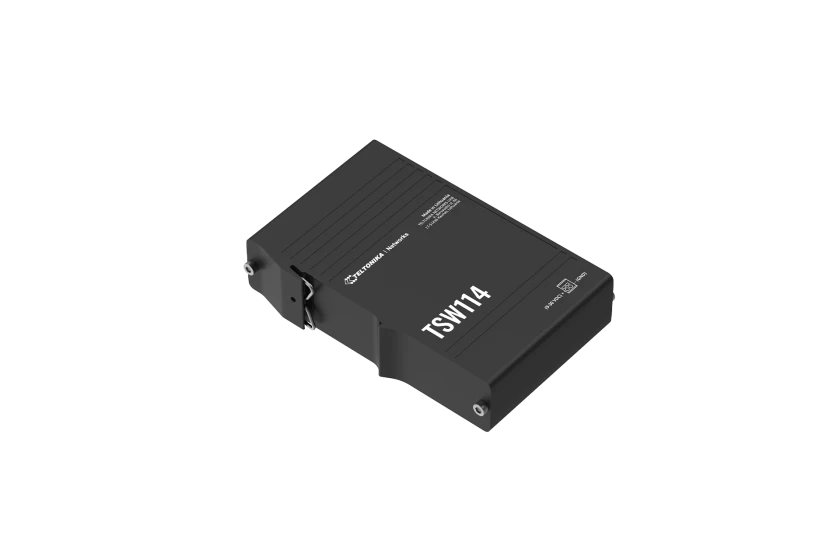

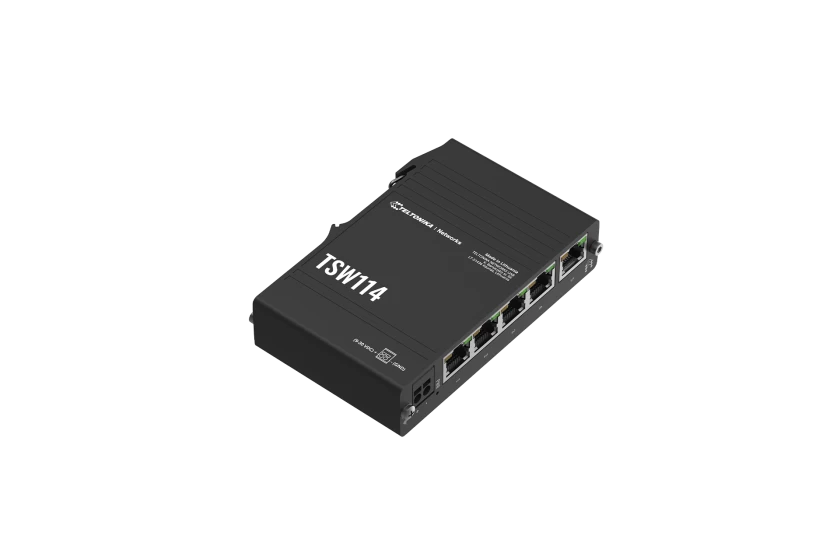

TSW114

Description

ETHERNET
5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover

IEEE 802.3 SERIES STANDARDS
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

INDUSTRIAL PROTOCOLS
Profinet Class A conformance (available with optional order code)

PERFORMANCE SPECIFICATIONS
Bandwidth (Non-blocking): 10 Gbps
Packet buffer: 128 KB
MAC address table size: 2K entries
Jumbo frame support: 9216 bytes

POWER
Connector: 2-pin industrial DC power socket
Input voltage range: 9 – 30 VDC
PoE (passive): Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 – 30 VDC
Power consumption: Idle 0.3 W / Max 2.3 W

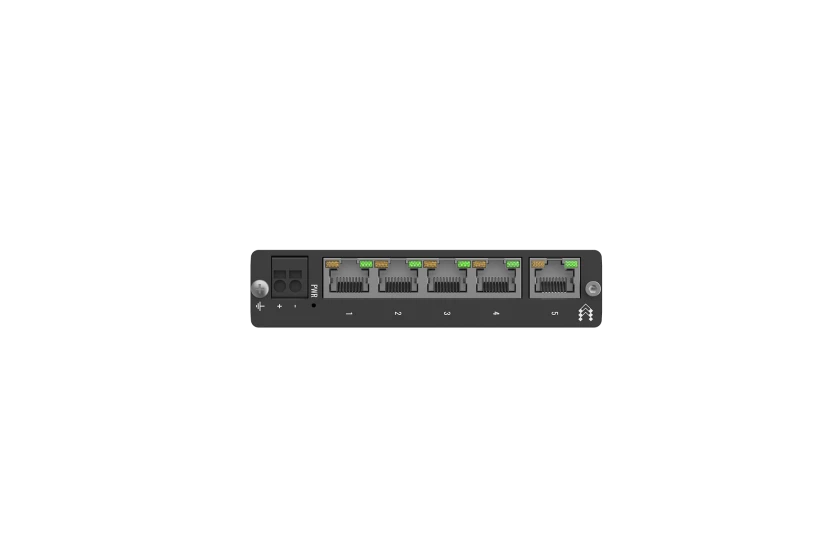

PHYSICAL INTERFACES
Ethernet: 5 x RJ45 ports, 10/100/1000 Mbps
Status LEDs: 1 x Power LED, 10 x ETH status LEDs
Power: 1 x 2-pin industrial DC power socket
Other: 1 x Grounding screw

PHYSICAL SPECIFICATION
Casing material: Anodized aluminum housing and panels
Dimensions (W x H x D): 113.1 x 27.4 x 80.5 mm
Weight: 174 g
Mounting options: Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)

OPERATING ENVIRONMENT
Operating temperature: -40 °C to 75 °C
Operating humidity: 5% to 95% non-condensing
Ingress protection rating: IP30

REGULATORY & TYPE APPROVALS
Regulatory: CE, UKCA, FCC, IC, CB, RCM, CITC, REACH, RoHS, WEEE

EMC EMISSIONS & IMMUNITY STANDARDS
EN 55032:2015 + A11:2020 + A1:2020
EN 55035:2017 + A11:2020
ESD: EN 61000-4-2:2009
Radiated immunity: EN IEC 61000-4-3:2020
EFT: EN 61000-4-4:2012
Surge immunity (AC mains power port): EN 61000-4-5:2014 + A1:2017
CS: EN 61000-4-6:2014

SAFETY STANDARDS
CE: EN IEC 62368-1:2020 + A11:2020
RCM: AS/NZS 62368.1:2022
CB: IEC 62368-1:2018
