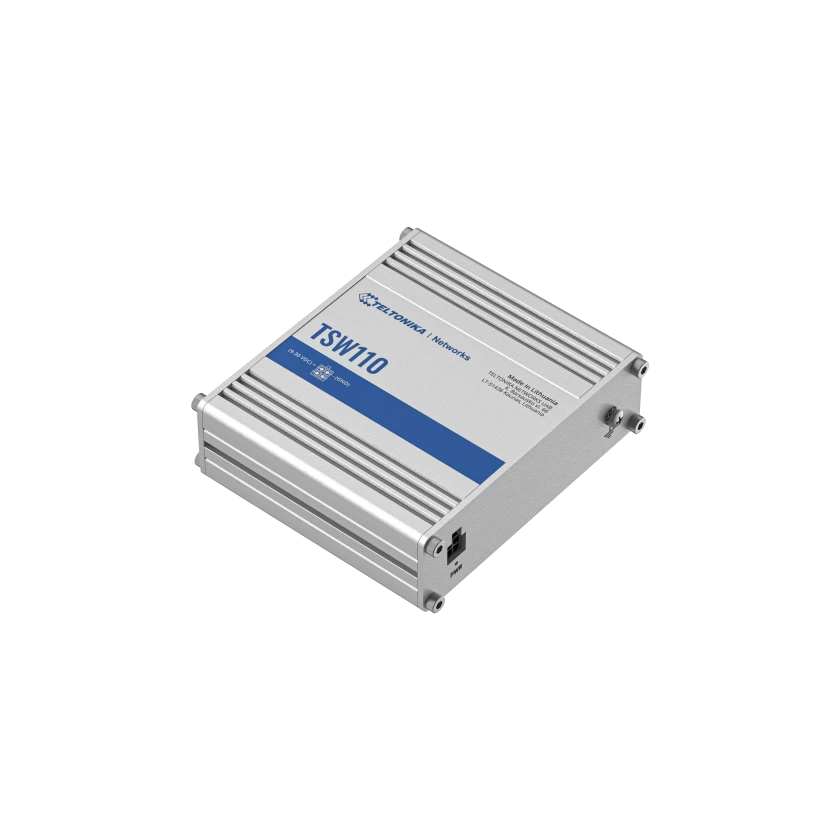

TSW110

Description

ETHERNET
5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover.

IEEE 802.3 SERIES STANDARDS
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az.

INDUSTRIAL PROTOCOLS
Profinet Class A conformance (available with optional order code).

PERFORMANCE SPECIFICATIONS
Bandwidth (Non-blocking): 10 Gbps.
Packet buffer: 128 KB.
MAC address table size: 2K entries.
Jumbo frame support: 9216 bytes.

POWER
Connector: 4-pin industrial DC power socket.
Input voltage range: 9 – 30 VDC.
PoE (passive): Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at, and 802.3bt standards, Mode B, 9 – 30 VDC.
Power consumption: < 0.4 W / < 1.8 W.

PHYSICAL INTERFACES

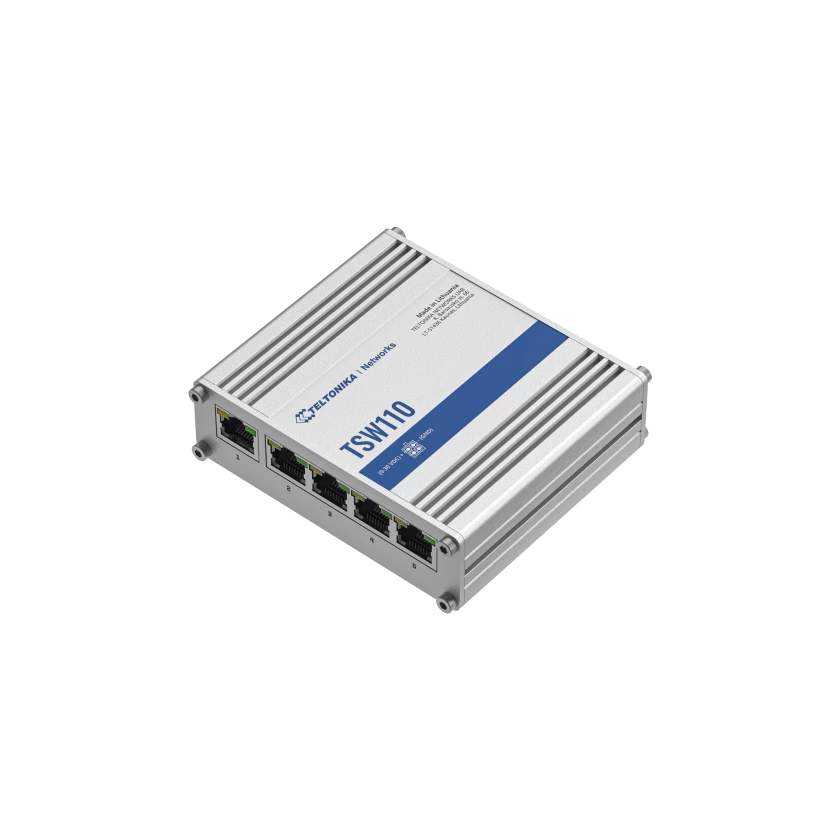

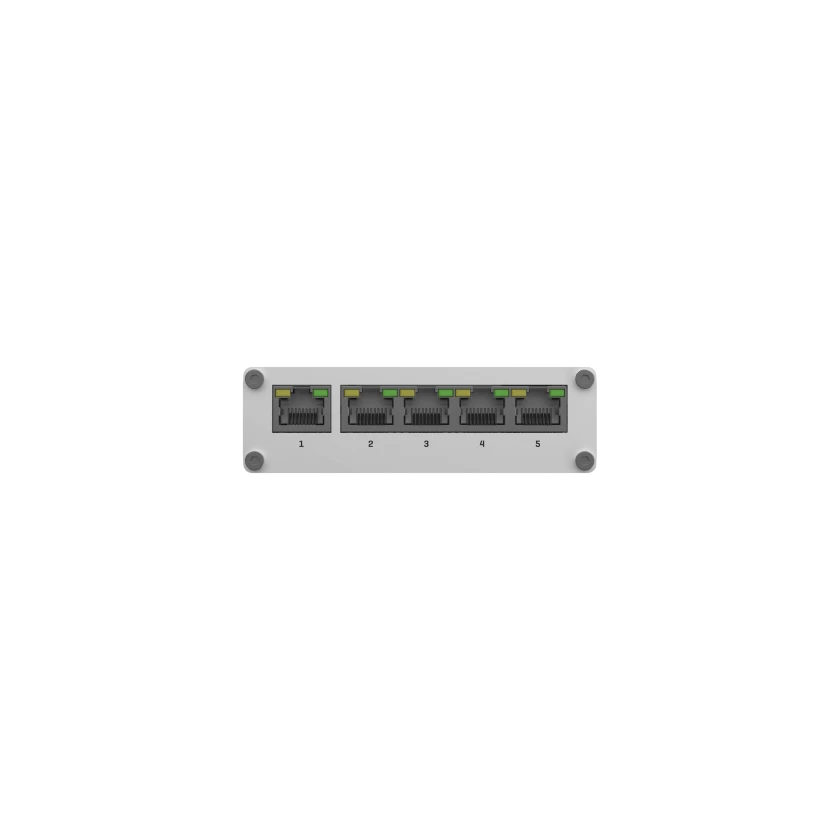

Ethernet: 5 x RJ45 ports, 10/100/1000 Mbps.
Status LEDs: 1 x Power LED, 10 x ETH status LEDs.
Power: 1 x 4-pin power connector.
Other: 1 x Grounding screw.

PHYSICAL SPECIFICATION
Casing material: Full aluminum housing.
Dimensions (W x H x D): 100 x 30 x 85 mm.
Weight: 227 g.
Mounting options: DIN rail, wall mount, flat surface (all require additional kit).

OPERATING ENVIRONMENT
Operating temperature: -40 °C to 75 °C.
Operating humidity: 5% to 95% non-condensing.
Ingress Protection Rating: IP30.

REGULATORY & TYPE APPROVALS
Regulatory: CE, UKCA, EAC, UCRF, ANRT, CITC, Kenya, FCC, IC, NOM, RCM, BSMI, CB.

EMC EMISSIONS & IMMUNITY
Standards: EN 55032:2015 + A11:2020, EN 61000-3-3:2013 + A1:2019, EN IEC 61000-3-2:2019, EN 55035:2017.
ESD: EN 61000-4-2:2009.
Radiated Immunity: EN IEC 61000-4-3:2006 + A1:2008 + A2:2010.
EFT: EN 61000-4-4:2012.
Surge Immunity (AC Mains Power Port): EN 61000-4-5:2014 + A1:2017.
CS: EN 61000-4-6:2014.
DIP: EN 61000-4-11:2004 + A1:2017.

SAFETY STANDARDS
IEC 62368-1:2018.
EN IEC 62368-1:2020 + A11:2020.
