TSW030

Description

ETHERNET
8 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover

IEEE 802.3 SERIES STANDARDS
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

INDUSTRIAL PROTOCOLS
Profinet Class A conformance (available with optional order code)

PERFORMANCE SPECIFICATIONS
Bandwidth (Non-blocking): 20 Gbps
Packet buffer: 128 KB
MAC address table size: 2K entries
Jumbo frame support: 9216 bytes

POWER
Connector: 2-pin industrial DC power socket
Input voltage range: 7 – 57 VDC, overvoltage protection: 60V max, reverse polarity protection: 80V max, surge protection: min 64.4V/max 71.2V breakdown voltage, 93.6V maximum reverse voltage @4.3A maximum reverse surge current, 1-Vin, 2-PGND
Power consumption: Idle 0.5 W / Max 1.5 W

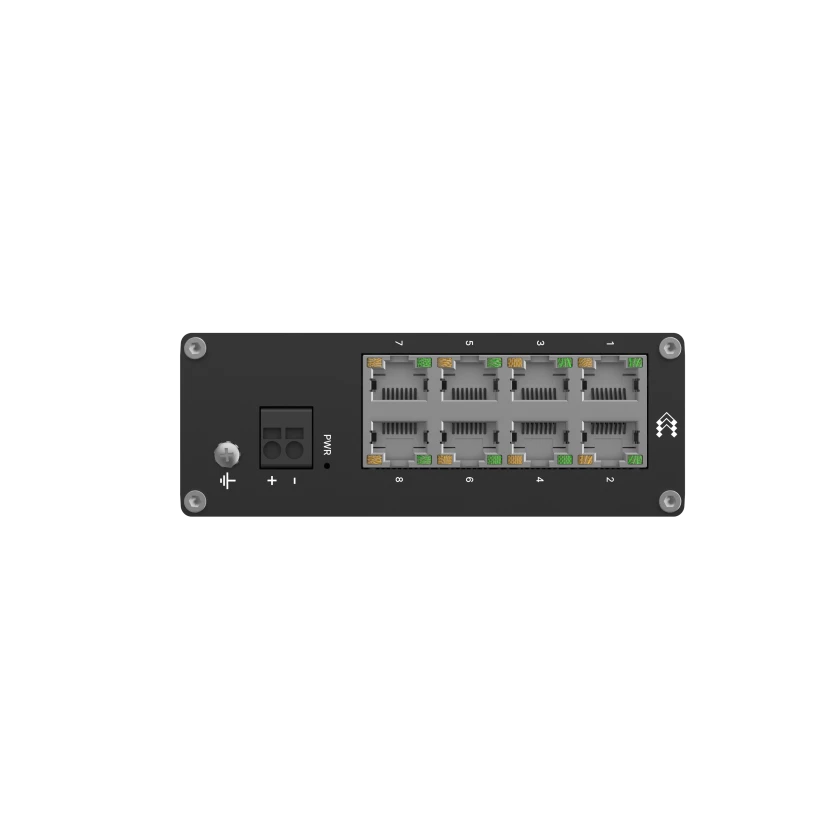

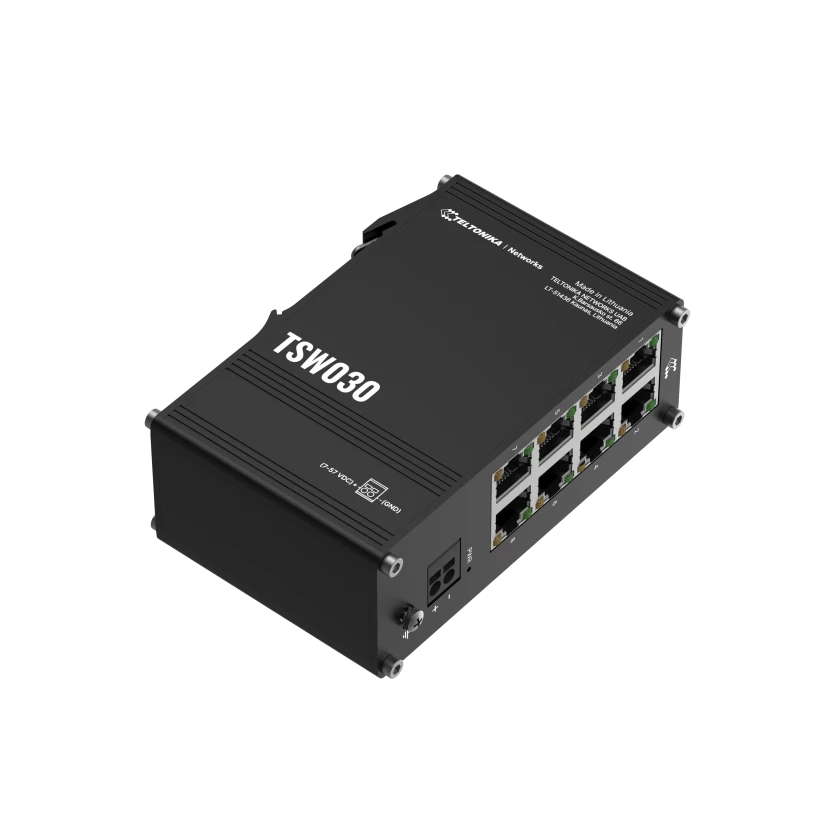

PHYSICAL INTERFACES
Ethernet: 8 x RJ45 ports, 10/100 Mbps
Status LEDs: 1 x Power LED, 16 x ETH status LEDs
Power: 1 x 2-pin industrial DC power socket
Other: 1 x Grounding screw

PHYSICAL SPECIFICATION
Casing material: Anodized aluminum housing and panels
Dimensions (W x H x D): 113.1 x 41.2 x 74.6 mm
Weight: 256 g

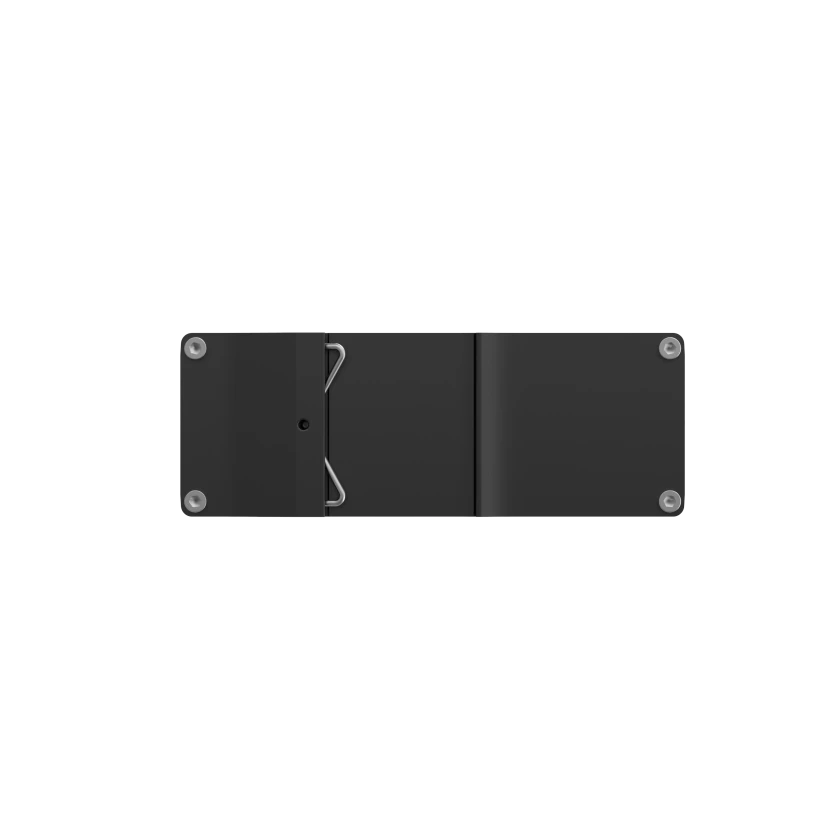

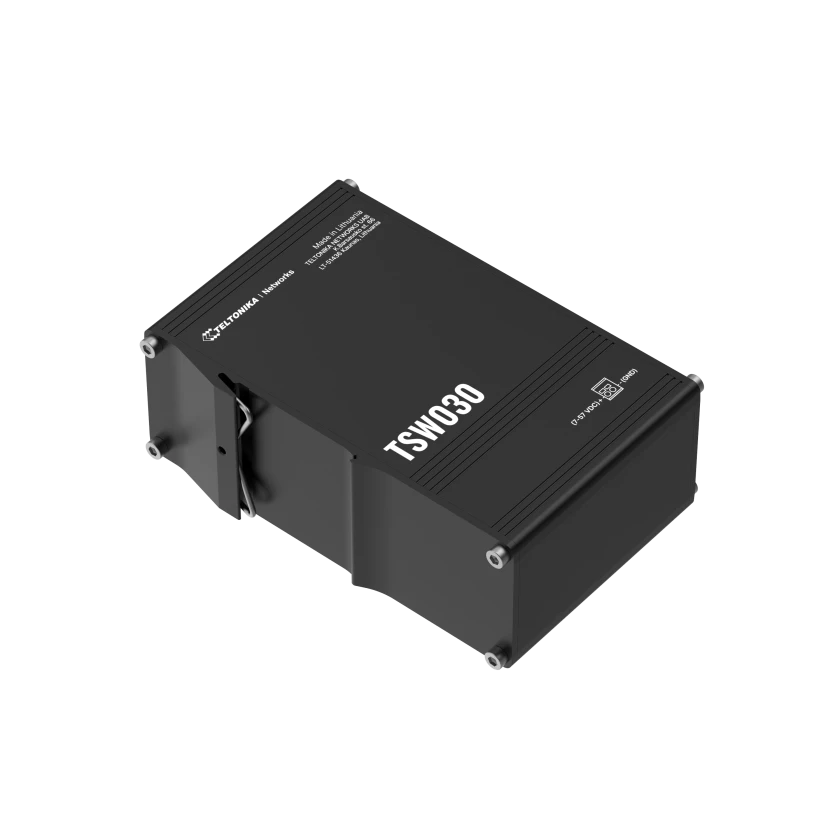

Mounting options: Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)

OPERATING ENVIRONMENT
Operating temperature: -40 °C to 75 °C
Operating humidity: 5% to 95% non-condensing

INGRESS PROTECTION RATING
IP30

REGULATORY & TYPE APPROVALS
Regulatory: UL Safety
Safety (Ordinary Locations) Standards: UL/CSA Safety: UL 62368-1 (3rd Ed., Rev. December 13, 2019), C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019)
