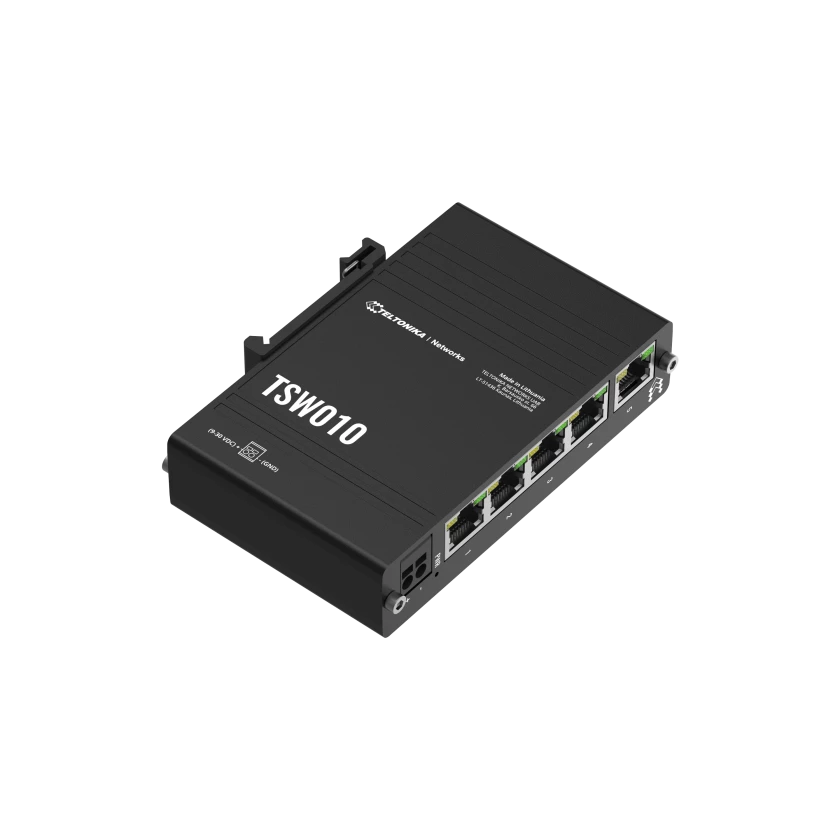

TSW010

Description

ETHERNET
5 x ETH port, 10/100 Mbps, supports auto MDI/MDIX crossover.

IEEE 802.3 SERIES STANDARDS
802.3i, 802.3u, 802.3x, 802.3az.

INDUSTRIAL PROTOCOLS
Profinet Class A conformance (available with optional order code).

PERFORMANCE SPECIFICATIONS
Bandwidth (Non-blocking): 1 Gbps.
MAC address table size: 2K entries.
Jumbo frame support: 2048 bytes.

POWER
Connector: 2-pin industrial DC power socket.
Input voltage range: 9 – 30 VDC.
PoE (passive): Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 – 30 VDC.
Power consumption: Idle: 0.3 W / Max: 0.9 W.

PHYSICAL INTERFACES

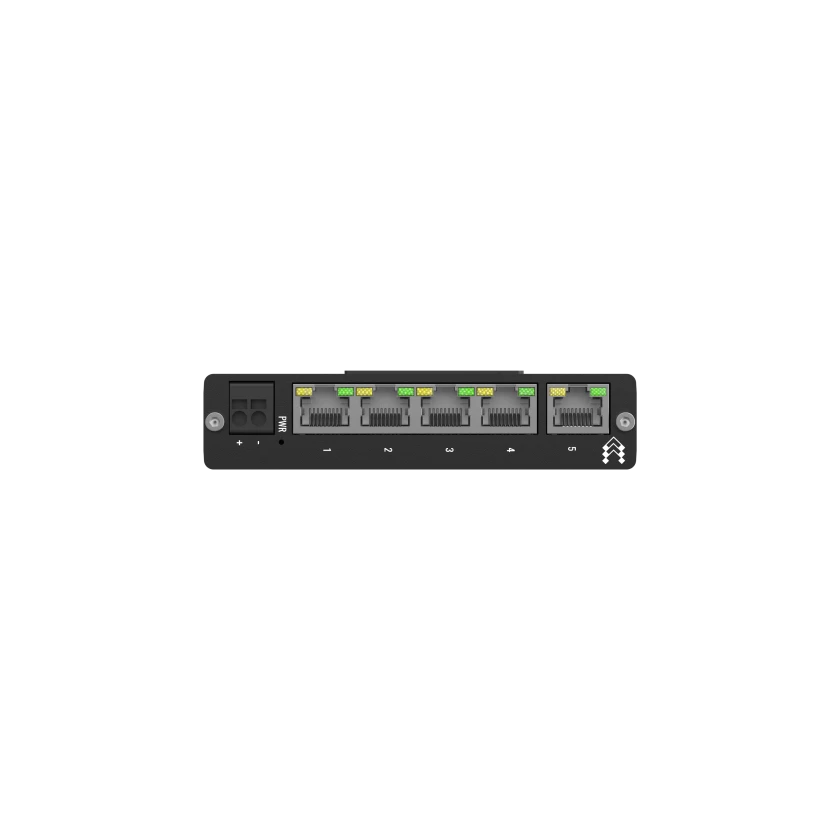

Ethernet: 5 x RJ45 ports, 10/100 Mbps.
Status LEDs: 1 x Power LED, 10 x ETH status LEDs.
Power: 1 x 2-pin industrial DC power socket.

PHYSICAL SPECIFICATION
Casing material: Aluminium housing.
Dimensions (W x H x D): 113.1 x 27.4 x 80.5 mm.
Weight: 146.5 g.

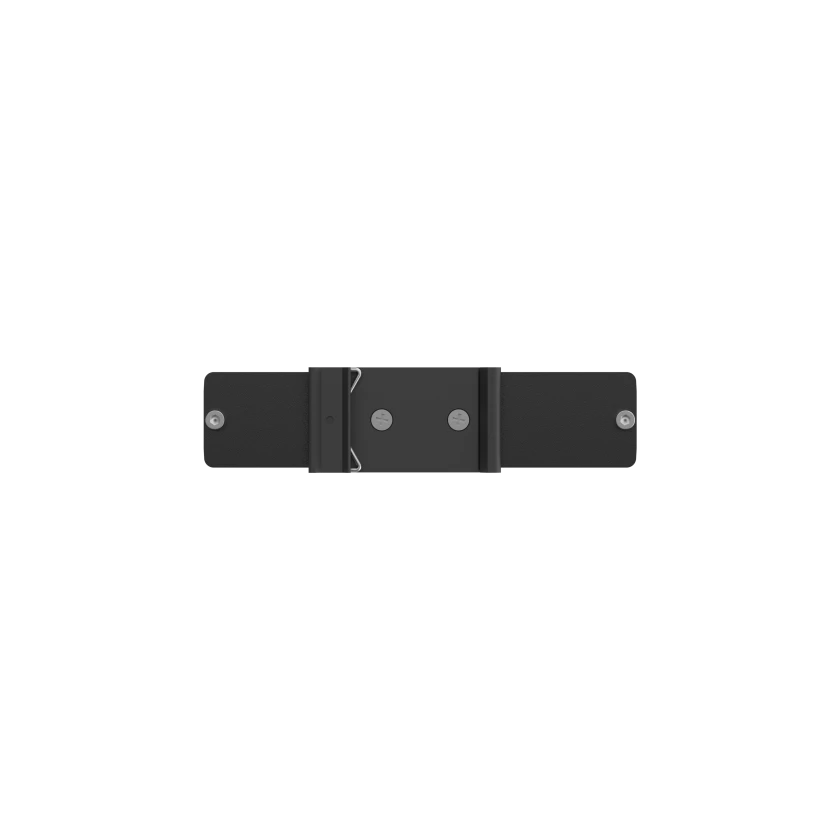

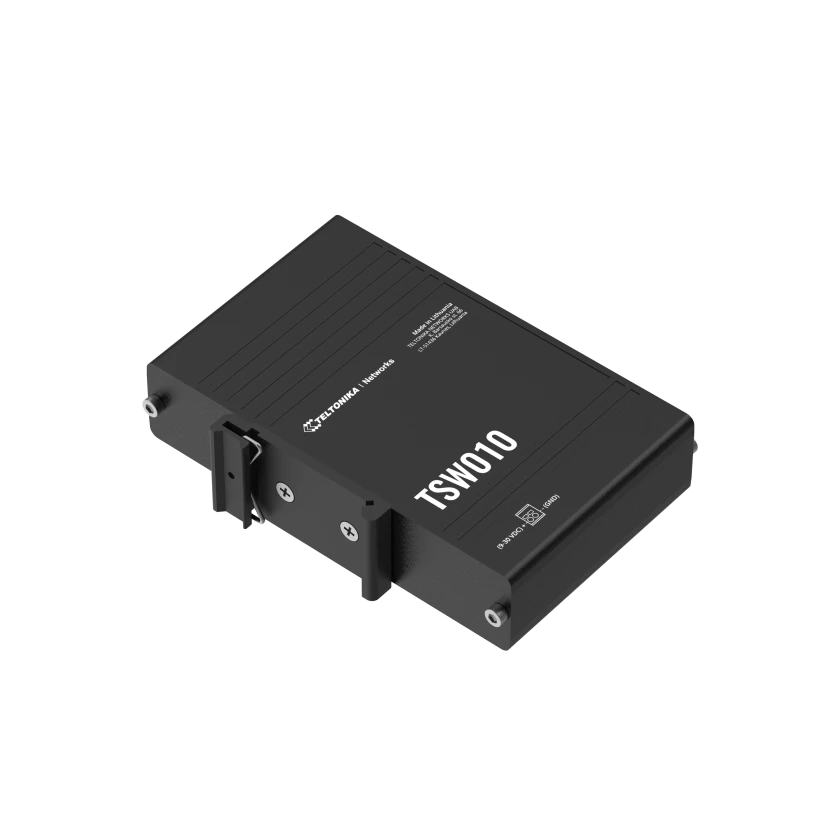

Mounting options: Integrated DIN rail bracket; wall mount and flat surface (additional kit needed).

OPERATING ENVIRONMENT
Operating temperature: -40 °C to 75 °C.
Operating humidity: 5% to 95% non-condensing.
Ingress Protection Rating: IP30.

REGULATORY & TYPE APPROVALS
Regulatory: CE, UKCA, EAC, FCC, IC, CB, RCM, CITC, ANRT, SDPPI (POSTEL), Kenya, REACH, RoHS, WEEE, UL Safety.

EMC EMISSIONS & IMMUNITY
Standards: EN 55032:2015 + A11:2020 + A1:2020, EN 55035:2017 + A11:2020.
ESD: EN 61000-4-2:2009.
Radiated Immunity: EN IEC 61000-4-3:2020.
EFT: EN 61000-4-4:2012.
Surge Immunity (AC Mains Power Port): EN 61000-4-5:2014 + A1:2017.
CS: EN 61000-4-6:2014.

SAFETY
Standards:
CE: EN IEC 62368-1:2020 + A11:2020.
RCM: AS/NZS 62368.1:2022.
CB: IEC 62368-1:2018.

SAFETY (ORDINARY LOCATIONS)
Standards: UL/CSA Safety: UL 62368-1 (3rd Ed., Rev. December 13, 2019), C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019).
