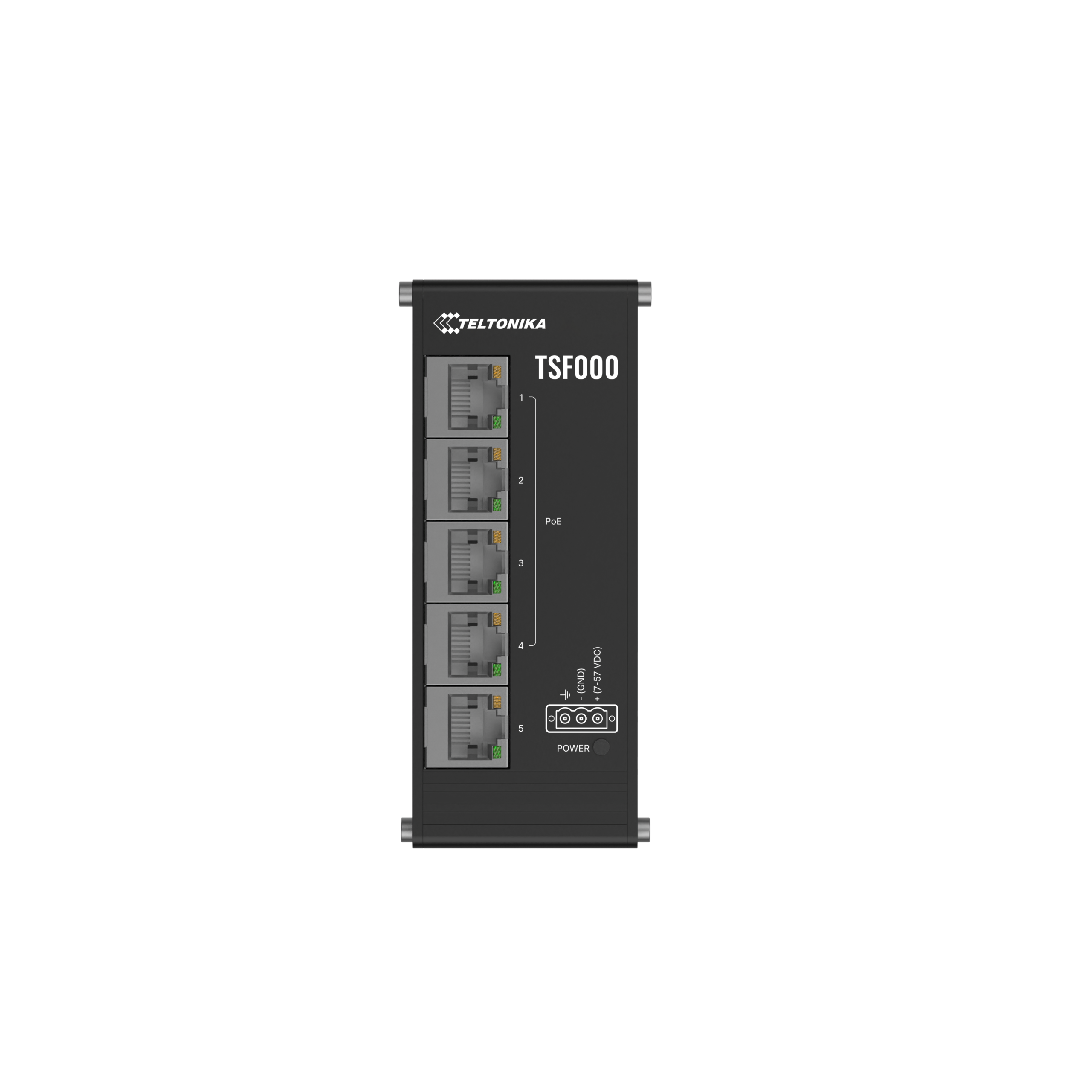

TSF000

Description

ETHERNET
5 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover

IEEE 802.3 SERIES STANDARDS
802.3i, 802.3u, 802.3x, 802.3az, 802.3p, 802.3Q

INDUSTRIAL PROTOCOLS
Profinet
Profinet Class A conformance (available with optional order code)

POE OUT
PoE ports: Ports 1–4
PoE standards: IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A
PoE max power per port (at PSE): 30 W
Total PoE power budget (at PSE): 120 W

PERFORMANCE SPECIFICATIONS
Bandwidth (Non-blocking): 10 Gbps
Packet buffer: 128 KB
MAC address table size: 2K entries
Jumbo frame support: 9216 bytes

POWER

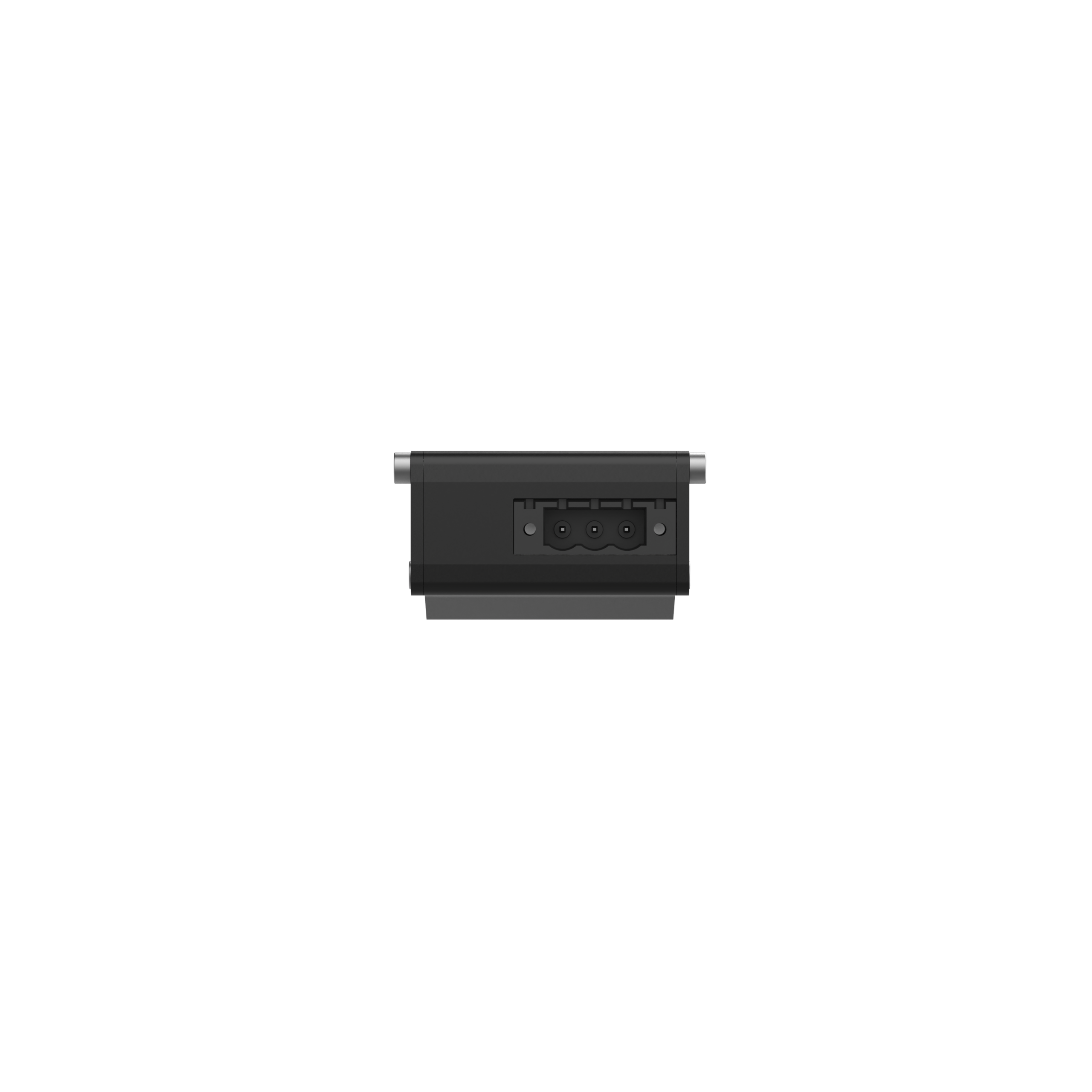

Connector: 3-pin industrial DC power socket
Input voltage range: 7 – 57 VDC, overvoltage protection: 60 V max, reverse polarity protection: 80 V max, surge protection: min 64.4 V / max 71.2 V breakdown voltage, 93.6 V maximum reverse voltage @ 4.3 A maximum reverse surge current
PoE-Out input voltage range: 44 – 57 VDC
Power consumption: Idle 1 W / Max 1.5 W / PoE Max 121 W

PHYSICAL INTERFACES
Ethernet: 5 x RJ45 ports, 10/100 Mbps
Status LEDs: 1 x Power LED, 10 x ETH status LEDs
Power: 1 x 3-pin industrial DC power socket
Other: Grounding terminal on power connector

PHYSICAL SPECIFICATION
Casing material: Anodized aluminum housing and panels
Dimensions (W x H x D): 113 x 28 x 50 mm
Weight: 142 g

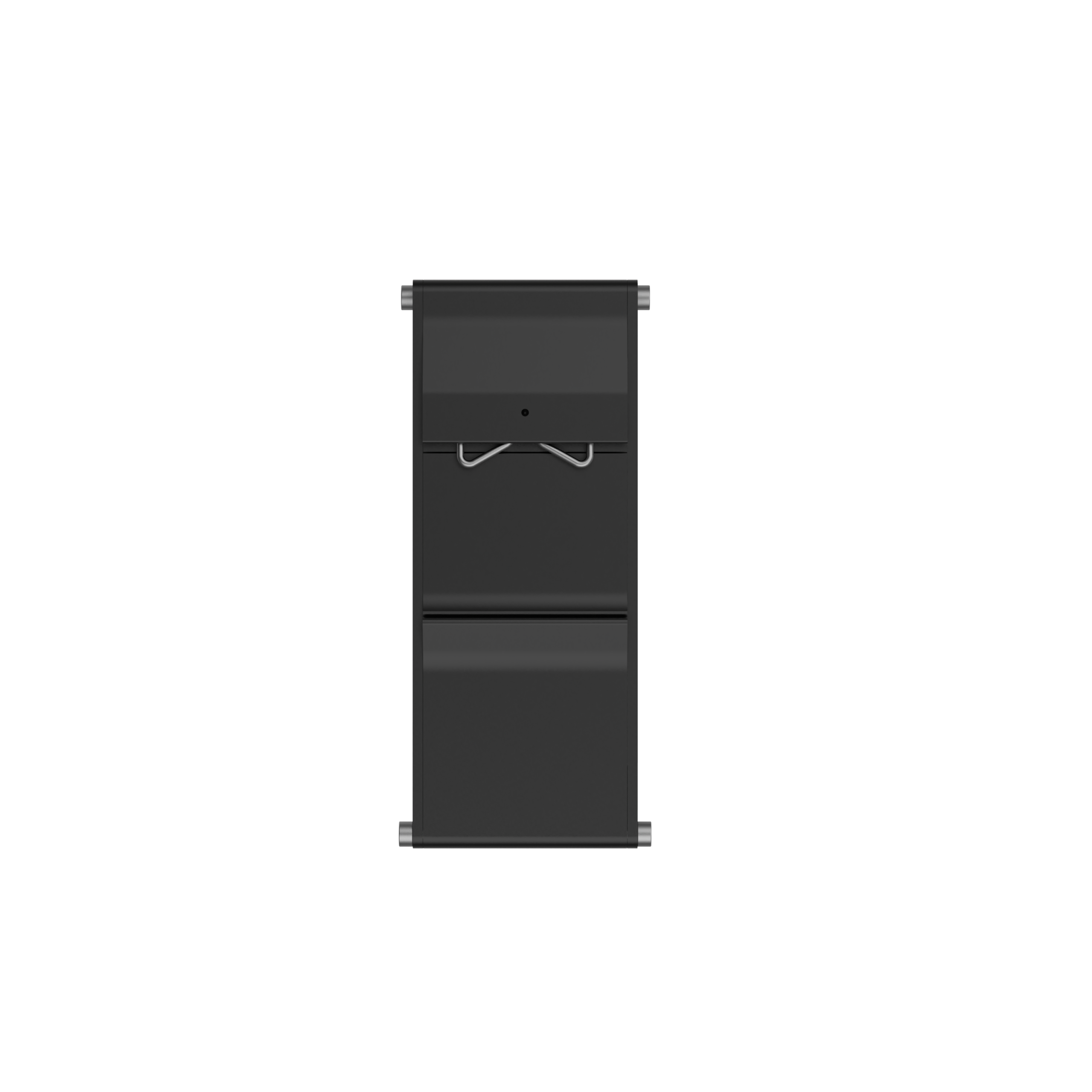

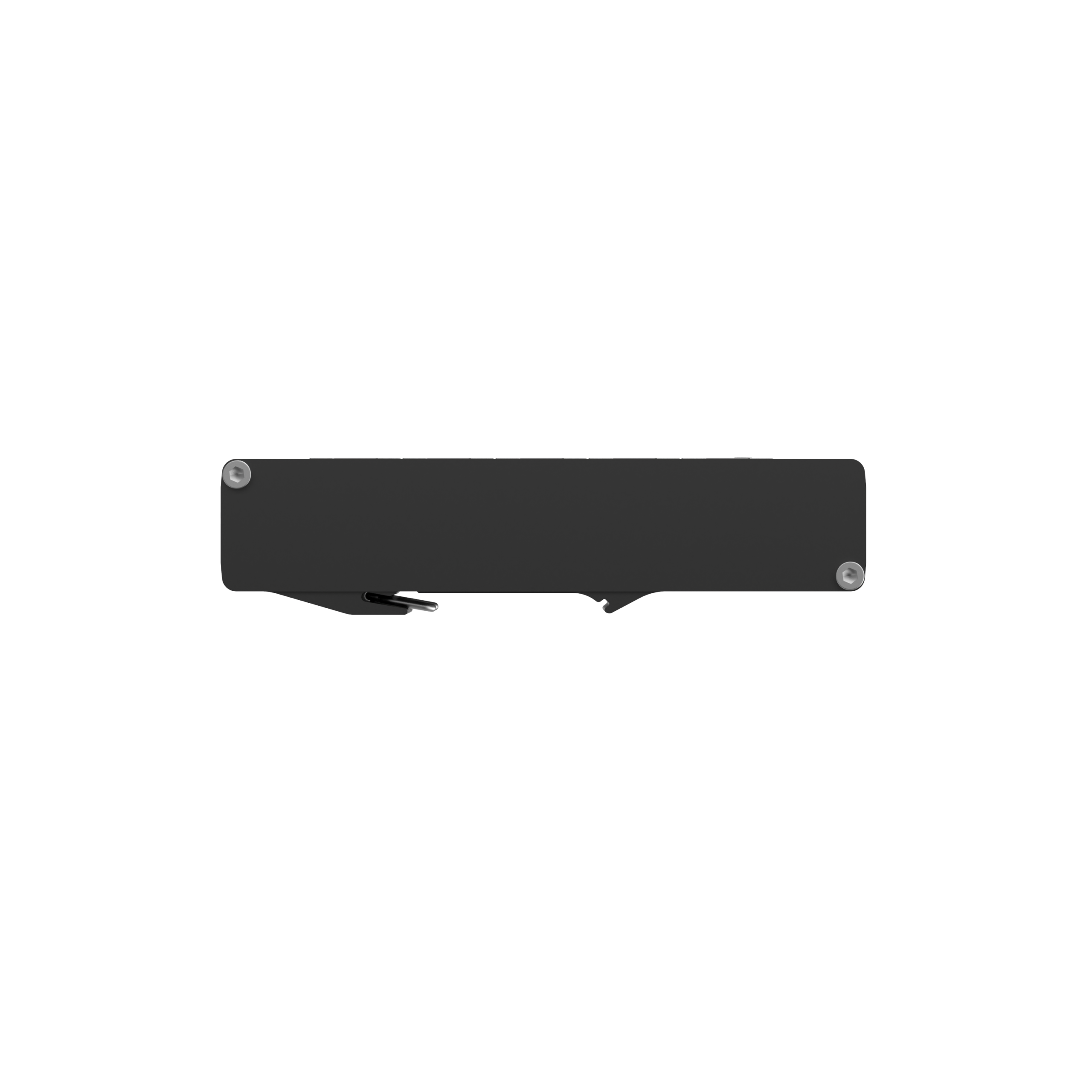

Mounting options: Integrated DIN rail bracket

OPERATING ENVIRONMENT
Operating temperature: -40 °C to 75 °C
Operating humidity: 5% to 95% non-condensing

INGRESS PROTECTION RATING
IP30

REGULATORY & TYPE APPROVALS
Regulatory: CE, UKCA, RCM, CB, FCC, IC, WEEE
