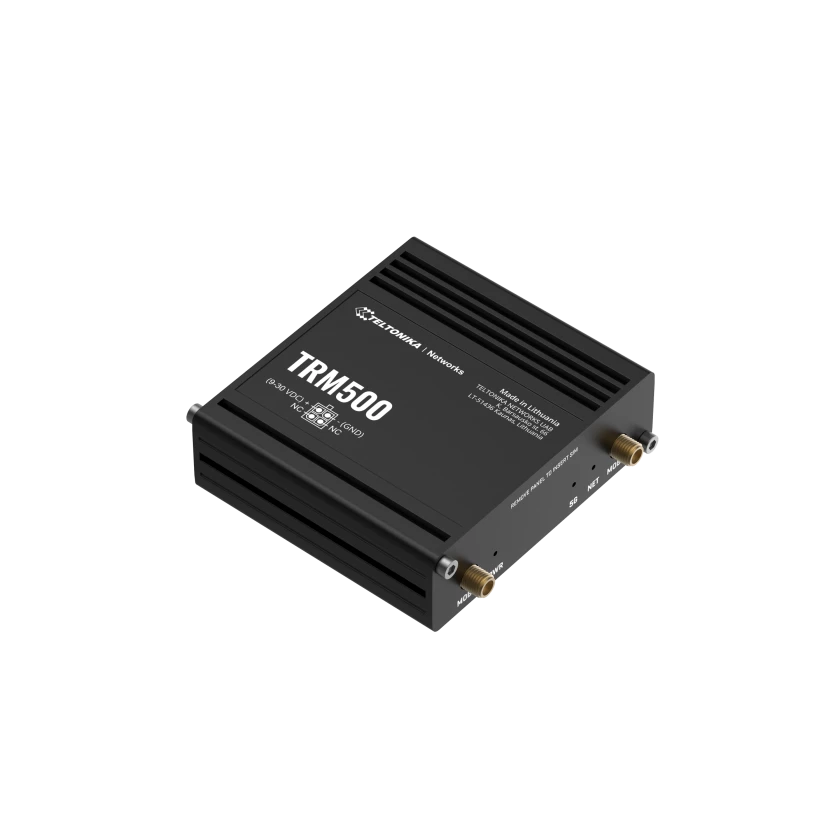

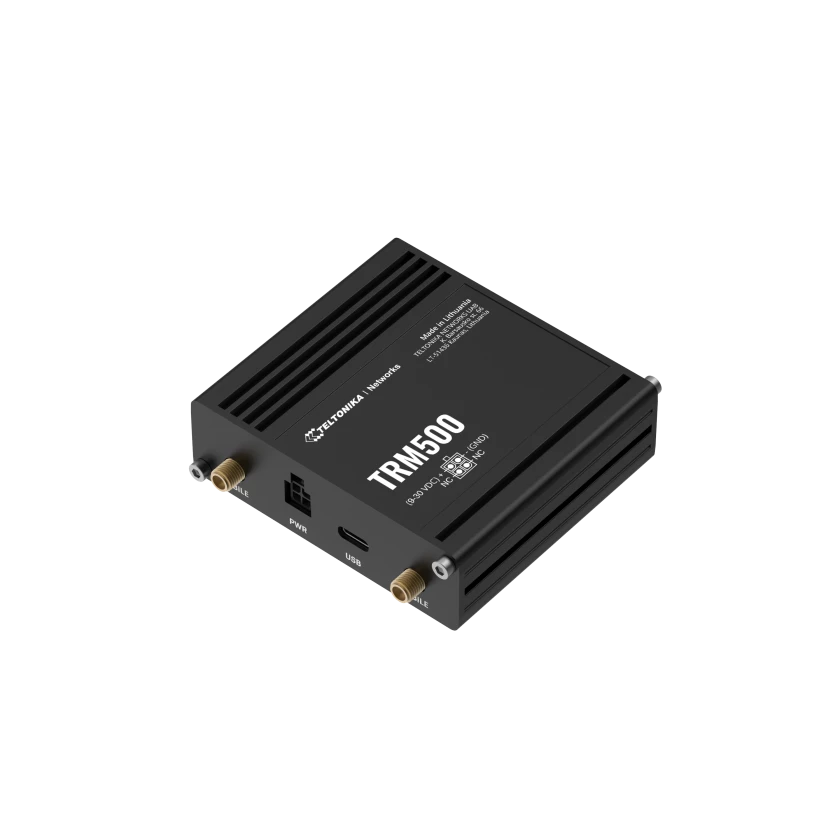

TRM500

Description

MOBILE MODULE
The device supports 5G Sub-6 GHz SA/NSA with download speeds of 2.4 / 3.4 Gbps (4×4 MIMO) and upload speeds of 900 / 550 Mbps (2×2 MIMO). 4G LTE provides downlink up to 1.6 Gbps (Cat 19) and uplink up to 200 Mbps (Cat 18). 3G connectivity offers 42 Mbps downlink and 5.76 Mbps uplink.

3GPP RELEASE
Release 16.

POWER
Connector: The device includes one 4-pin industrial DC power socket and one USB Type-C port. The USB host must provide 5 V at 3 A to power the device via the USB Type-C port.
Input voltage range: The 4-pin connector supports 9–30 VDC with overvoltage protection, reverse polarity protection, and surge protection up to 35 VDC for 10 µs maximum. The USB Type-C port supports 5 VDC.
Power consumption: Idle power consumption is less than 5 W, and maximum consumption is less than 12 W.

PHYSICAL INTERFACES
Status LEDs: Includes one power LED, one 5G LED, and one network LED.
SIM: One Mini SIM (2FF) slot supporting 1.8 V and 3 V SIM cards.

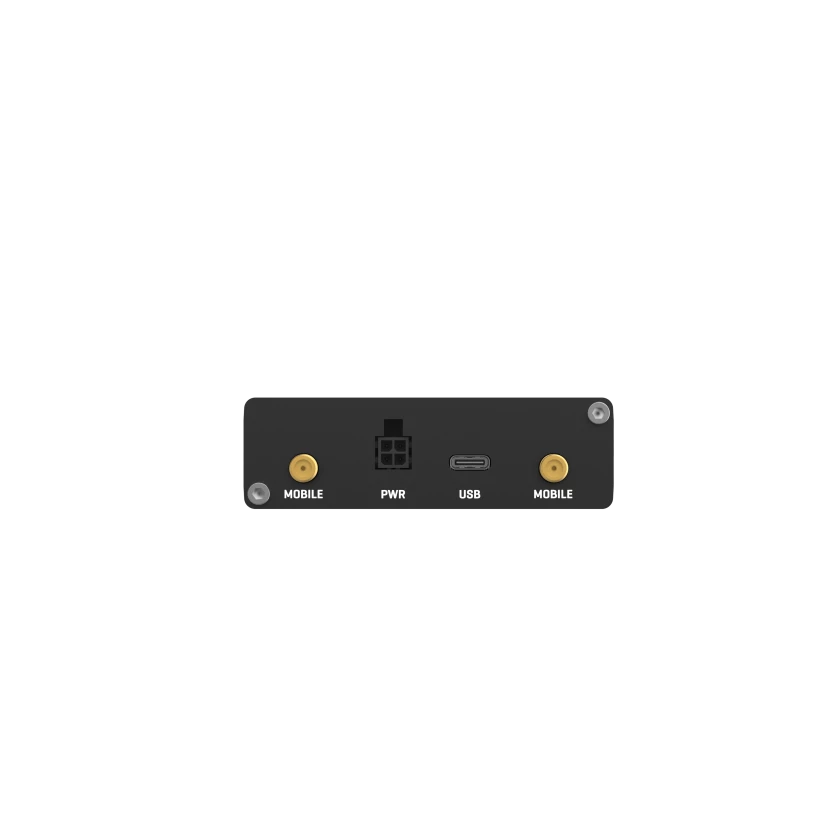

Power: One 4-pin power connector and one USB Type-C port (5 V @ 3 A).
Antennas: Four SMA connectors for mobile connectivity.
Other: One virtual network interface via USB Type-C for power and network data.

PHYSICAL SPECIFICATION
Casing material: Anodized aluminum housing and panels.
Dimensions (W x H x D): 83 × 25 × 85.4 mm.
Weight: 94.5 g.
Mounting options: DIN rail, wall mount, or flat surface (all require additional kit).

OPERATING ENVIRONMENT
Operating temperature: -40 °C to +75 °C.
Operating humidity: 10% to 90% non-condensing.
Ingress Protection Rating: IP30.

TRM SOFTWARE
Management Software: Windows Connection Manager, Modem Manager for Linux.
USB Serial Driver: Supports Windows 7/8/8.1/10/11 and Linux 2.6–6.3.
GNSS Driver: Supports Android 4.x–13.
RIL Driver: Supports Android 4.x–13.
NDIS Driver: Supports Windows 7/8/8.1/10/11.
MBIM Driver: Supports Windows 8/8.1/10/11 and Linux 3.18–6.3.
Gobinet Driver: Supports Linux 2.6/3.x/4.1–4.14.
QMI_WWAN Driver: Supports Linux 3.4–6.3.

REGULATORY & TYPE APPROVALS
Regulatory: CE, UKCA, RCM, CB, and WEEE certified.

EMC EMISSIONS & IMMUNITY
Standards: EN 55032:2015+A1:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021, EN 301 489-1 V2.2.3, EN 301 489-52 V1.2.1, AS/NZS CISPR 32:2015+A1:2020.
ESD: EN 61000-4-2:2009.
Radiated Immunity: EN IEC 61000-4-3:2020.
EFT: EN 61000-4-4:2012.
Surge Immunity (AC Mains Power Port): EN 61000-4-5:2014+A1:2017.
CS: EN 61000-4-6:2014.
DIP: EN IEC 61000-4-11:2020.

RF STANDARDS
EN 301 908-1 V15.2.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.2.1, EN 301 908-25 V15.1.1, AS/CA S042.1:2022, AS/CA S042.4:2022, AS/CA S042.5:2022+A1:2022, FCC Part 22, Draft EN 301 908-25 V15.1.1_0.0.21.

SAFETY STANDARDS
CE: EN IEC 62368-1:2020+A11:2020, EN IEC 62311:2020.
RCM: AS/NZS CISPR 32:2015+A1:2020.
CB: EN IEC 62368-1:2020+A11:2020.
