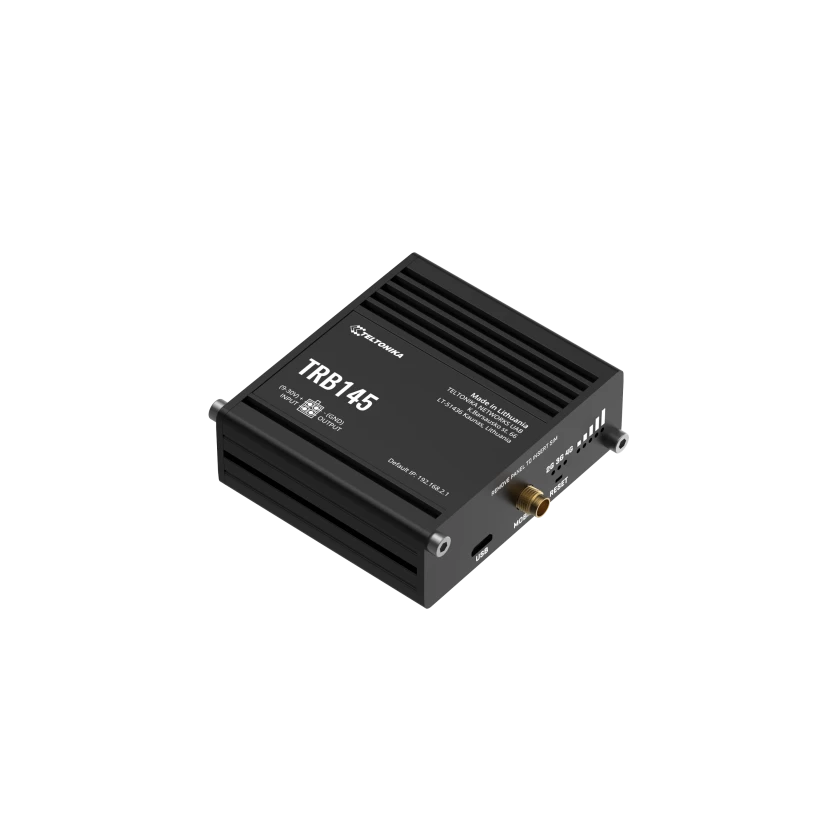

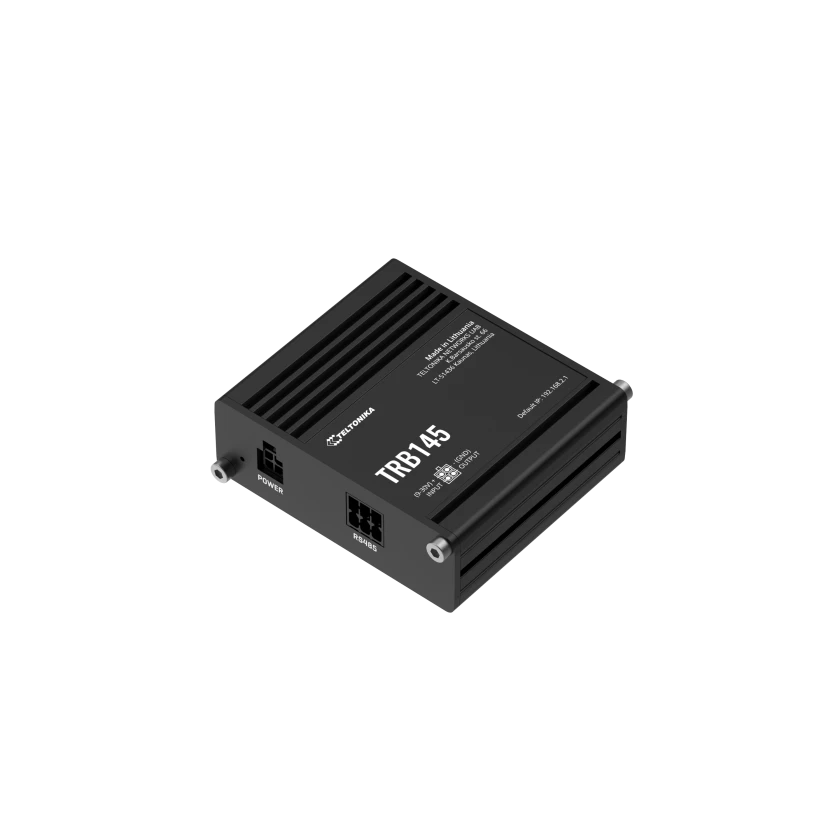

TRB145

Description

MOBILE MODULE
The device supports 4G LTE Cat 1 with download speeds up to 10 Mbps and upload speeds up to 5 Mbps. 3G connectivity offers 384 kbps downlink and uplink, while 2G supports 296 kbps downlink and 236.8 kbps uplink.

3GPP RELEASE
Release 12.

STATUS
Includes IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, and signal strength parameters (RSSI, SINR, RSRP, RSRQ, EC/IO, RSCP). Additional metrics include data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC.

SMS
Supports SMS status, SMS configuration, Email to SMS, SMS to Email, SMS to HTTP, SMS to SMS, scheduled SMS, SMS auto-reply, and SMPP.

USSD
Supports sending and reading Unstructured Supplementary Service Data (USSD) messages.

BLOCK/ALLOW LIST
Supports operator block and allow list by country or individual operators.

MULTIPLE PDN
Allows the use of different PDNs for multiple network access and services.

BAND MANAGEMENT
Includes band lock and used band status display.

SIM PIN CODE MANAGEMENT
Enables setting, changing, or disabling the SIM card’s PIN.

APN
Supports automatic APN detection and configuration.

BRIDGE
Provides a direct connection (bridge) between the mobile ISP and a device on LAN.

PASSTHROUGH
Assigns the mobile WAN IP address to another device on LAN.

NETWORK

ROUTING
Supports static routing.

NETWORK PROTOCOLS
Includes TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, SMPP, SNMP, and MQTT.

VOIP PASSTHROUGH SUPPORT
Supports H.323 and SIP-ALG protocol NAT helpers for proper routing of VoIP packets.

CONNECTION MONITORING
Includes Ping Reboot, Wget Reboot, Periodic Reboot, LCP, and ICMP link inspection.

FIREWALL
Supports port forwarding, traffic rules, custom rules, and TTL target customization.

FIREWALL STATUS PAGE
Displays all firewall statistics, rules, and counters.

PORT MANAGEMENT
Allows viewing and managing device ports, enabling or disabling them, turning auto-configuration on or off, and changing transmission speed.

NETWORK TOPOLOGY
Provides a visual representation of the network showing connected devices.

DHCP
Supports static and dynamic IP allocation, DHCP relay, server configuration, status monitoring, and static leases with MAC wildcards.

QOS / SMART QUEUE MANAGEMENT (SQM)
Enables traffic prioritization by source, destination, service, protocol, or port. Supports WMM and 802.11e.

DDNS
Supports over 77 service providers with manual configuration options.

DNS OVER HTTPS
Provides secure DNS resolution by routing DNS queries over HTTPS.

NETWORK BACKUP
Supports Mobile, VRRP, and Wired options for automatic failover.

SSHFS
Allows mounting of remote file systems via SSH protocol.

TRAFFIC MANAGEMENT
Includes real-time monitoring, wireless signal charts, and traffic usage history.

SECURITY

AUTHENTICATION
Supports pre-shared keys, digital certificates, X.509, TACACS+, internal and external RADIUS authentication, IP blocking, login attempt blocking, time-based login blocking, and a random password generator.

FIREWALL (ADVANCED)
Preconfigured rules can be enabled via WebUI with unlimited configuration via CLI. Supports DMZ, NAT, NAT-T, and NAT64.

ATTACK PREVENTION
Provides DDoS protection (SYN flood, SSH, HTTP/HTTPS), and port scan prevention (SYN-FIN, SYN-RST, Xmas, NULL flags, FIN scans).

VLAN
Supports port and tag-based VLAN separation.

MOBILE QUOTA CONTROL
Allows setting mobile data limits with customizable periods, start times, warning limits, and phone number association.

WEB FILTER
Supports blacklist and whitelist for website access control.

ACCESS CONTROL
Enables flexible control over SSH, web interface, CLI, and Telnet access.

CERTIFICATE MANAGER
Provides tools for creating CA, server, client, Let’s Encrypt, and SCEP certificates.

VPN

OPENVPN
Supports multiple clients and server instances simultaneously with 27 encryption methods.

OPENVPN ENCRYPTION
DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256.

IPSEC
Supports XFRM, IKEv1, and IKEv2 with 14 encryption methods (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16).

GRE
Supports GRE tunnel and GRE tunnel over IPsec.

PPTP / L2TP
Client and server instances can run simultaneously with support for L2TPv3 and L2TP over IPsec.

STUNNEL
Provides TLS encryption for existing clients and servers without code modification.

DMVPN
Supports scalable IPsec VPNs with Phase 2, Phase 3, and Dual Hub.

SSTP
Supports SSTP client instances.

ZEROTIER
Supports ZeroTier VPN client.

WIREGUARD
Supports WireGuard VPN client and server.

TINC
Provides encryption, authentication, and compression in tunnels with client and server support.

BACNET
Router mode supporting RS485 and TCP. Allows multiple BACnet/IP interfaces, network number assignment, and preconfigured BDT entries for BBMD.

OPC UA
Supports client and server modes over TCP.

MODBUS
Supports server and client modes over TCP and RTU (RS485). Includes custom register block requests and multiple data formats (8-bit, 16-bit, 32-bit INT/UINT, float, HEX, ASCII).

DATA TO SERVER
Supports HTTP(S), MQTT, and Azure MQTT protocols. Extracts parameters from various sources and sends them to a single server using custom LUA scripting.

MQTT GATEWAY
Allows communication with Modbus Server through MQTT broker.

DNP3
Supports Station and Outstation modes over TCP and RTU (RS485).

DLMS/COSEM
Supports DLMS protocol for utility meter data exchange in Client mode via TCP or RTU (RS485).

API
Supports Teltonika Networks Web API (beta) for data retrieval and control.

MONITORING & MANAGEMENT
Includes WebUI (HTTP/HTTPS), firmware updates, SSH, SMS control, call control, TR-069, MQTT, SNMP, JSON-RPC, and Teltonika RMS.

IOT PLATFORMS
Supports ThingWorx, Cumulocity, Azure IoT Hub, and AWS IoT Core for monitoring, management, and cloud integration.

SYSTEM CHARACTERISTICS
Powered by an ARM Cortex-A7 1.2 GHz CPU with 128 MB DDR2 RAM and 512 MB SPI Flash storage.

FIRMWARE / CONFIGURATION
Supports WebUI, FOTA, and RMS for firmware and configuration management. Includes configuration backup, factory reset, and GPL customization options with SDK tools.

INPUT / OUTPUT
Includes two configurable I/Os (0–5 V logic low, 8–30 V logic high) with max output 30 V, 300 mA. Supports HTTP POST/GET control, scheduling, and event-based triggers via email, RMS, or SMS.

POWER

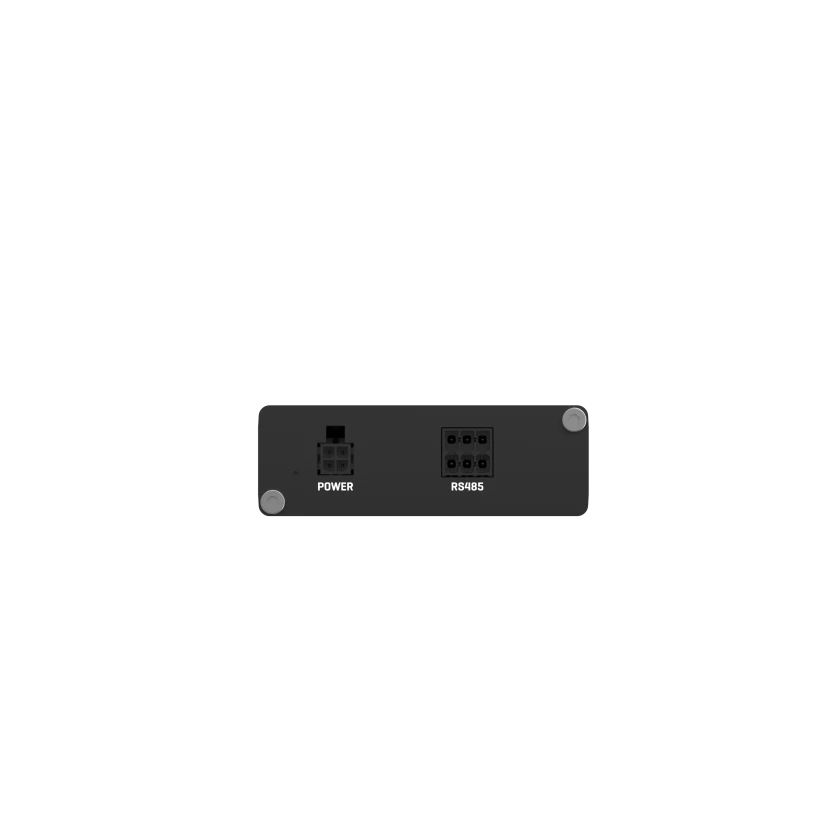

4-pin industrial DC connector with input voltage range 9–30 VDC and protection features. Power consumption <5 W.

PHYSICAL INTERFACES

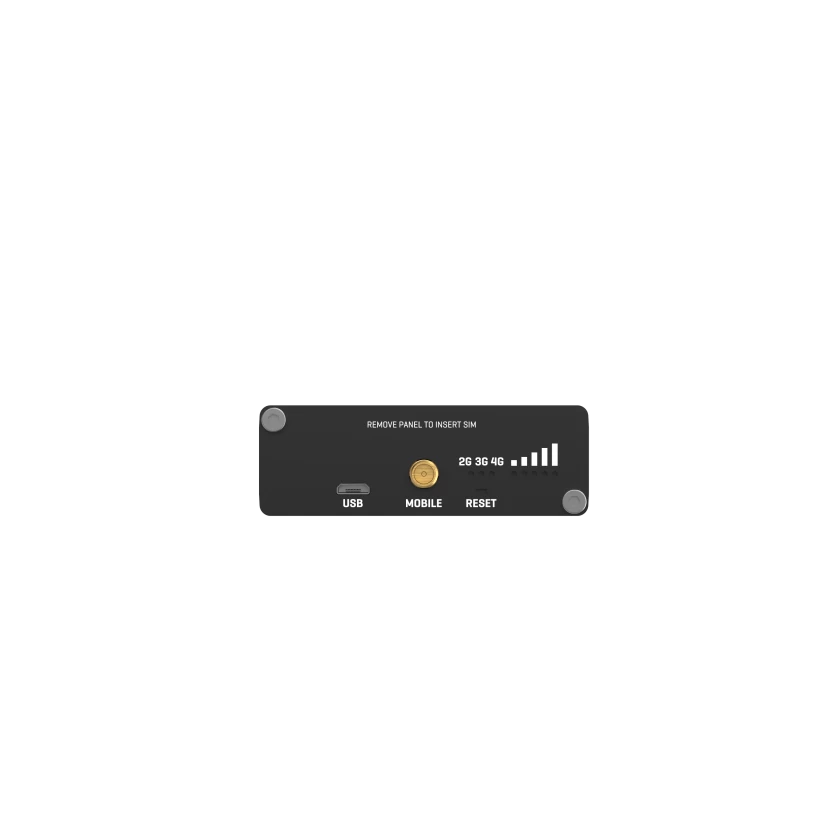

Includes 2 configurable I/Os, 3 status LEDs, 5 signal strength LEDs, 1 power LED, 1 Mini SIM slot, SMA antenna, RS485 interface, reset button, and USB micro port.

PHYSICAL SPECIFICATIONS
Aluminium housing, 74.5 × 25 × 64.4 mm, 130 g. Mountable via DIN rail, wall, or flat surface.

OPERATING ENVIRONMENT
Temperature range -40 °C to +75 °C. Humidity 10–90% non-condensing. IP30 protection rating.

REGULATORY & TYPE APPROVALS
Certified for CE, UKCA, EAC, UCRF, ANRT, Kenya, ICASA, Anatel, Arcotel, NOM, RCM, Giteki, NTC, E-mark, CB, RoHS, and REACH.

OPERATOR
Deutsche Telekom AG.

EMC EMISSIONS & IMMUNITY STANDARDS
Draft EN 301 489-1 V2.2.0
Draft EN 301 489-52 V1.1.0
EN 61000-4-2:2009
EN IEC 61000-4-3:2006 + A1:2008 + A2:2010
EN 61000-4-4:2012
EN 61000-4-5:2014
EN 61000-4-6:2014
EN 61000-4-11:2004

RF STANDARDS
EN 301 511 V12.5.1
EN 301 908-1 V13.1.1
EN 301 908-2 V13.1.1
EN 301 908-13 V13.1.1

SAFETY STANDARDS
CE: EN 62368-1:2014 + A11:2017, EN IEC 62232:2017, EN 50385:2017
RCM: AS/NZS 62368.1:2018
