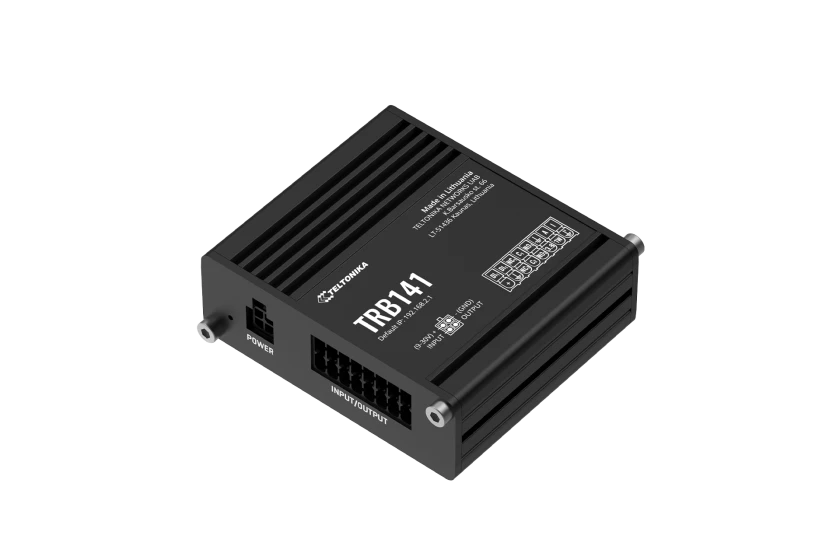

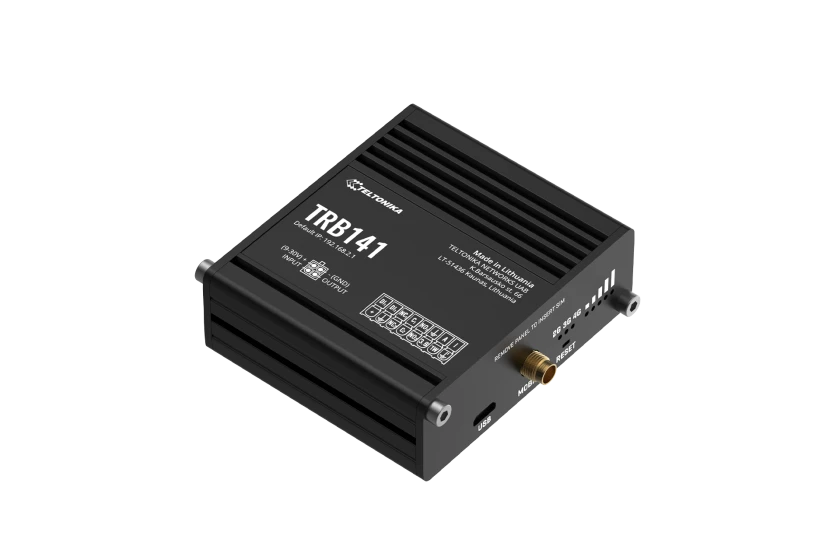

TRB141

Description

MOBILE MODULE
The device supports 4G LTE Cat 1 with download speeds up to 10 Mbps and upload speeds up to 5 Mbps. It also supports 3G with speeds up to 384 kbps for both download and upload, and 2G with up to 296 kbps download and 236.8 kbps upload.

3GPP RELEASE
Release 12.

STATUS
Includes IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI, SINR, RSRP, RSRQ, EC/IO, RSCP), data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC.

SMS
Supports SMS status, SMS configuration, Email to SMS, SMS to Email, SMS to HTTP, SMS to SMS, scheduled SMS, SMS auto-reply, and SMPP.

USSD
Supports sending and reading Unstructured Supplementary Service Data (USSD) messages.

BLOCK / ALLOW LIST
Operator block or allow list by country or individual operators.

MULTIPLE PDN
Supports different PDNs for multiple network access and services.

BAND MANAGEMENT
Includes band lock and used band status display.

SIM PIN CODE MANAGEMENT
Enables setting, changing, or disabling the SIM card’s PIN.

APN
Supports automatic APN detection and configuration.

BRIDGE
Provides a direct connection between the mobile ISP and a LAN device.

PASSTHROUGH
Gateway assigns its mobile WAN IP address to a LAN device.

NETWORK

ROUTING
Supports static routing.

NETWORK PROTOCOLS
Supports TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, SMPP, SNMP, and MQTT.

VOIP PASSTHROUGH SUPPORT
Supports H.323 and SIP-ALG NAT helpers for proper VoIP packet routing.

CONNECTION MONITORING
Includes Ping Reboot, Wget Reboot, Periodic Reboot, LCP, and ICMP link inspection.

FIREWALL
Supports port forwarding, traffic rules, custom rules, and TTL target customization.

FIREWALL STATUS PAGE
Provides firewall statistics, rules, and rule counters for monitoring.

PORT MANAGEMENT
Allows enabling or disabling device ports, auto-configuration, and transmission speed settings.

NETWORK TOPOLOGY
Provides a visual representation of the network showing connected devices.

DHCP
Supports static and dynamic IP allocation, DHCP relay, server configuration, status monitoring, and static leases with MAC wildcards.

QOS / SMART QUEUE MANAGEMENT (SQM)
Provides traffic prioritization by source, destination, service, protocol, or port. Supports WMM and 802.11e.

DDNS
Supports over 77 service providers with manual configuration for others.

DNS OVER HTTPS
Enables secure DNS resolution by routing DNS queries over HTTPS.

NETWORK BACKUP
Supports mobile, VRRP, and wired backup options with automatic failover.

SSHFS
Supports mounting remote file systems via SSH.

TRAFFIC MANAGEMENT
Includes real-time monitoring with wireless signal charts and usage history.

SECURITY

AUTHENTICATION
Supports pre-shared key, digital certificates, X.509, TACACS+, internal and external RADIUS, IP blocking, login attempt blocking, time-based login restrictions, and a built-in random password generator.

FIREWALL (ADVANCED)
Includes preconfigured firewall rules via WebUI and unlimited customization via CLI. Supports DMZ, NAT, NAT-T, and NAT64.

ATTACK PREVENTION
Provides DDoS protection (SYN flood, SSH, HTTP/HTTPS), and prevents port scans such as SYN-FIN, SYN-RST, Xmas, NULL flags, and FIN scans.

VLAN
Supports port and tag-based VLAN separation.

MOBILE QUOTA CONTROL
Provides customizable data limits with period, start time, warning thresholds, and phone number association.

WEB FILTER
Supports blacklist and whitelist for website access control.

ACCESS CONTROL
Enables flexible control of SSH, web interface, CLI, and Telnet access.

CERTIFICATE MANAGER
Provides tools for creating CA, server, client, Let’s Encrypt, and SCEP certificates.

VPN

OPENVPN
Supports multiple clients and server instances with 27 encryption methods.

OPENVPN ENCRYPTION
DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256.

IPSEC
Supports XFRM, IKEv1, and IKEv2 with 14 encryption methods including 3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, and AES256GCM16.

GRE
Supports GRE tunnel and GRE over IPsec.

PPTP / L2TP
Supports simultaneous client/server instances, L2TPv3, and L2TP over IPsec.

STUNNEL
Adds TLS encryption to existing clients and servers without code changes.

DMVPN
Supports scalable IPsec VPNs with Phase 2, Phase 3, and Dual Hub support.

SSTP
Supports SSTP client instance.

ZEROTIER
Supports ZeroTier VPN client.

WIREGUARD
Supports WireGuard VPN client and server.

TINC
Supports encryption, authentication, and compression in tunnels for both client and server.

OPC UA
Supports client and server modes over TCP.

MODBUS
Supports client and server modes over TCP with custom register blocks.

SUPPORTED DATA FORMATS
8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD, DCBA, CDAB, BADC), HEX, ASCII.

DATA TO SERVER
Supports HTTP(S), MQTT, and Azure MQTT. Extracts parameters from multiple sources and protocols, sending them to a single server. Supports custom LUA scripting.

MQTT GATEWAY
Supports Modbus MQTT Gateway for sending commands and receiving data from Modbus Server through MQTT broker.

DNP3
Supports station and outstation modes over TCP.

DLMS / COSEM
Supports DLMS protocol for utility meter data exchange in client mode over TCP.

API
Supports Teltonika Networks Web API with configurable endpoints for data retrieval and control.

MONITORING & MANAGEMENT
Supports WebUI (HTTP/HTTPS) for status, configuration, firmware update, CLI, troubleshooting, and multiple event logs.

FOTA
Firmware update via server with automatic notifications.

SSH
Supports SSH v1 and v2.

SMS CONTROL
Supports SMS status and configuration.

CALL CONTROL
Allows reboot, status check, mobile data control, output control, and call handling with timers.

TR-069
Supports OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly Tech, and AVSystem.

MQTT
Supports MQTT broker and publisher.

SNMP
Supports SNMP v1, v2, v3, traps, and brute force protection.

JSON-RPC
Management API over HTTP/HTTPS.

RMS
Compatible with Teltonika Remote Management System (RMS).

IOT PLATFORMS
Supports ThingWorx, Cumulocity, Azure IoT Hub, and AWS IoT Core for monitoring, management, parameter uploads, direct method calls, and remote actions.

SYSTEM CHARACTERISTICS
Powered by an ARM Cortex-A7 1.2 GHz CPU with 128 MB DDR2 RAM and 512 MB SPI Flash storage.

FIRMWARE / CONFIGURATION
Firmware updates available via WebUI, FOTA, or RMS. Supports configuration profiles, backups, and updates without losing settings.

FIRMWARE CUSTOMIZATION
Runs RutOS (OpenWrt-based Linux OS) supporting BusyBox shell, Lua, C, C++, and Python. Provides SDK tools, GPL customization, and package manager for additional software.

INPUT / OUTPUT
Includes 2 digital inputs, 1 isolated input, 1 analog input (4–20 mA), configurable inputs and outputs, and 2 relay outputs. Supports event triggers via email, RMS, or SMS.

POWER

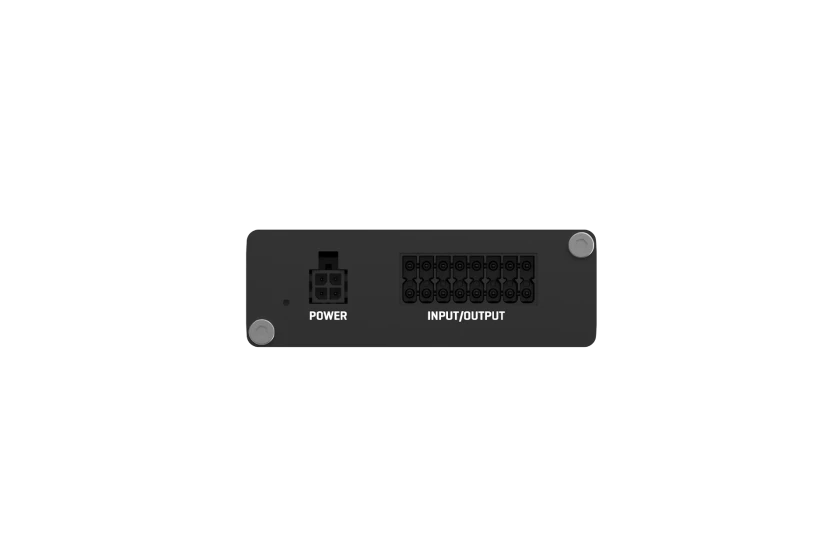

4-pin industrial DC power socket with 9–30 VDC input, reverse polarity, and surge protection (>31 VDC 10 µs max). Power consumption <5 W.

PHYSICAL INTERFACES

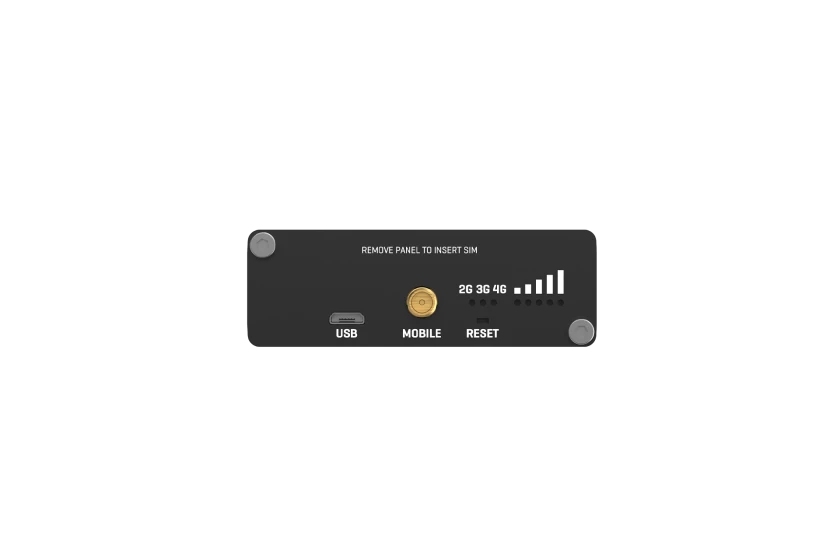

Includes digital and analog I/Os, relays, status LEDs, Mini SIM (2FF) slot, micro USB, SMA LTE antenna port, 1-Wire connector, and reset button.

PHYSICAL SPECIFICATIONS
Aluminium housing with dimensions 74.5 × 25 × 64.4 mm and weight 136 g. Mountable on DIN rail, wall, or flat surfaces.

OPERATING ENVIRONMENT
Operating temperature -40 °C to +75 °C and humidity 10%–90% non-condensing. IP30 ingress protection.

REGULATORY & TYPE APPROVALS
Certified for CE, UKCA, EAC, UCRF, ANRT, Kenya, ICASA, Anatel, NOM, RCM, and Giteki.

EMC EMISSIONS & IMMUNITY
Complies with Draft EN 301 489-1 V2.2.0, Draft EN 301 489-52 V1.1.0, EN 61000-4-2:2009, EN IEC 61000-4-3:2006 + A1:2008 + A2:2010, EN 61000-4-4:2012, EN 61000-4-5:2014, EN 61000-4-6:2014, and EN 61000-4-11:2004.

RF STANDARDS
EN 301 511 V12.5.1, EN 301 908-1 V13.1.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.1.1.

SAFETY STANDARDS
CE: EN 62368-1:2014 + A11:2017, EN IEC 62232:2017, EN 50385:2017.
RCM: AS/NZS 62368.1:2018.
CB: IEC 62368-1:2018.
