RUTM31

MOBILE MODULE
The device supports 5G Sub-6Ghz SA/NSA with download speeds of 2/2.6 Gbps DL (4×4 MIMO) and upload speeds of 1000/650 Mbps UL (2×2 MIMO). 4G LTE Cat 12 provides downlink up to 600 Mbps (2×2 MIMO) and Cat 13 uplink up to 150 Mbps. 3G connectivity offers 42.2 Mbps downlink and 11 Mbps uplink.

3GPP RELEASE
Release 15

SIM SWITCH
Supports 2 SIM cards with auto-switch triggers including weak signal, data limit, SMS limit, roaming, no network, network denied, data connection failure, and SIM idle protection.

STATUS AND MONITORING
Status reporting includes IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI, SINR, RSRP, RSRQ, EC/IO, RSCP), data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC.

SMS
SMS features include SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, and SMPP.

USSD
Supports sending and reading Unstructured Supplementary Service Data messages.

BLOCK AND ALLOW LIST
Operator block or allow list by country or individual operators.

BAND MANAGEMENT
Includes band lock and used band status display.

SIM IDLE PROTECTION SERVICE
Enables periodic switching to the unused SIM card to establish a data connection and prevent SIM card blocking.

SIM PIN CODE MANAGEMENT
Allows setting, changing, or disabling the SIM card PIN.

APN
Supports automatic APN configuration.

BRIDGE
Provides direct connection (bridge) between mobile ISP and device on LAN.

PASSTHROUGH
Router assigns its mobile WAN IP address to another device on LAN.

FRAMED ROUTING
Supports an IP network behind 5G UE.

WIRELESS

WIRELESS MODE
802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA).

WIFI SECURITY
WPA2-Enterprise (PEAP), WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF).

SSID/ESSID
SSID stealth mode and access control based on MAC address.

WI-FI USERS
Up to 150 simultaneous connections.

WIRELESS CONNECTIVITY FEATURES
Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k).

WIRELESS MAC FILTER
Allowlist, blocklist.

WIRELESS QR CODE GENERATOR
Once scanned, a user will automatically enter the network without needing to input login information.

TRAVELMATE
Forward Wi-Fi hotspot landing page to a subsequent connected device.

ETHERNET

WAN
1 x WAN port 10/100/1000 Mbps, compliant with IEEE 802.3, 802.3u, 802.3az standards, supports auto MDI/MDIX crossover.

LAN
1 x LAN port 10/100/1000 Mbps, compliant with IEEE 802.3, 802.3u, 802.3az standards, supports auto MDI/MDIX crossover.

NETWORK

ROUTING
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing.

NETWORK PROTOCOLS
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL).

VOIP PASSTHROUGH SUPPORT
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets.

CONNECTION MONITORING
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection.

FIREWALL
Port forward, traffic rules, custom rules, TTL target customization.

FIREWALL STATUS PAGE
View all firewall statistics, rules, and rule counters.

PORT MANAGEMENT
View device ports, enable/disable ports, configure auto-configuration, change transmission speed, and more.

NETWORK TOPOLOGY
Visual representation showing which devices are connected to others.

HOTSPOT
Captive portal, internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 customizable themes with upload/download options.

HOTSPOT 2.0
Wi-Fi standard enabling seamless, secure, and automatic connection to trusted wireless networks.

DHCP
Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards.

QOS / SMART QUEUE MANAGEMENT (SQM)
Traffic priority queuing by source/destination, service, protocol, or port; WMM, 802.11e.

DDNS
Supported by >77 service providers; others configurable manually.

DNS OVER HTTPS
Enables secure DNS resolution by routing DNS queries over HTTPS.

NETWORK BACKUP
Wi-Fi WAN, Mobile, VRRP, Wired options for automatic failover.

LOAD BALANCING
Balances Internet traffic over multiple WAN connections.

SSHFS
Mount remote file system via SSH protocol.

VRF SUPPORT
Initial virtual routing and forwarding (VRF) support.

TRAFFIC MANAGEMENT
Real-time monitoring, wireless signal charts, traffic usage history.

SECURITY

FIREWALL
Preconfigured rules via WebUI, unlimited configuration via CLI, DMZ, NAT, NAT-T, NAT64.

ATTACK PREVENTION
DDOS protection (SYN flood, SSH attack, HTTP/HTTPS attack), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL, FIN scan).

VLAN
Port and tag-based VLAN separation.

MOBILE QUOTA CONTROL
Custom data limits per SIM card.

WEB FILTER
Blacklist to block unwanted websites, Whitelist for allowed sites only.

ACCESS CONTROL
Flexible access control for SSH, Web interface, CLI, Telnet.

TPM
Identification and authentication module, TPM 2.0 standard.

CERTIFICATE MANAGER
Tool to create CA, server, client, Let’s Encrypt, and SCEP certificates.

802.1X
Port-based network access control client.

VPN

OPENVPN
Multiple clients and server simultaneously, 27 encryption methods.

OPENVPN ENCRYPTION
DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256.

IPSEC
XFRM, IKEv1, IKEv2 with 14 encryption methods (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16).

GRE
GRE tunnel, GRE over IPsec support.

PPTP, L2TP
Client/Server instances simultaneously; L2TPv3, L2TP over IPsec support.

STUNNEL
Adds TLS encryption to existing clients and servers without code changes.

DMVPN
Scalable IPsec VPNs, Phase 2 & 3, dual hub support.

SSTP
SSTP client instance support.

ZEROTIER
ZeroTier VPN client support.

WIREGUARD
WireGuard VPN client and server support.

TINCS
Encryption, authentication, compression; client/server support.

TAILSCALE
Encrypted point-to-point connections via WireGuard, speed and stability.

OPC UA
Supported modes: Client, Server; connection type: TCP.

MODBUS
Supported modes: Client, Server; connection type: TCP. Custom registers for reading/writing files inside router. Supported data formats: 8-bit (INT, UINT), 16-bit (INT, UINT MSB/LSB), 32-bit (float, INT, UINT ABCD/DCBA/CDAB/BADC), HEX, ASCII.

DATA TO SERVER
Protocol: HTTP(S), MQTT, Azure MQTT. Allows extracting parameters from multiple sources and sending to a single server; supports LUA scripting.

MQTT GATEWAY
Modbus MQTT Gateway; sends commands and receives data from MODBUS Server via MQTT broker.

DNP3
Supported modes: Station, Outstation; connection: TCP.

DLMS/COSEM
DLMS support; client mode, TCP connection.

API
Teltonika Networks Web API (beta) support: configurable API endpoints to retrieve/change data. Documentation: https://developers.teltonika-networks.com

MONITORING & MANAGEMENT

WEB UI
HTTP/HTTPS, status, configuration, firmware update, CLI, troubleshooting, multiple event log servers, firmware update notifications, system logs.

FOTA
Firmware update from server with automatic notifications.

SSH
SSH v1, v2.

SMS
SMS status, configuration.

CALL
Reboot, status, mobile data on/off, output on/off, answer/hang-up with timer, Wi-Fi on/off.

EMAIL
Receive email status alerts.

TR-069
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem.

MQTT
MQTT Broker, MQTT publisher.

SNMP
SNMP v1/v2/v3, SNMP Trap, brute force protection.

JSON-RPC
Management API over HTTP/HTTPS.

MODBUS
MODBUS TCP status/control.

RMS
Teltonika Remote Management System (RMS).

IOT PLATFORMS
ThingWorx, Cumulocity – Cloud of Things, Azure IoT Hub, AWS IoT Core. Monitors device status, network, operator, signal strength, supports reboot and firmware upgrades.

SYSTEM CHARACTERISTICS
CPU: MediaTek Dual-Core 880 MHz, MIPS1004Kc. RAM: 256 MB DDR3. FLASH: 16 MB serial NOR, 256 MB serial NAND.

FIRMWARE / CONFIGURATION
WEB UI: update FW from file/server, configuration profiles, backup. FOTA: firmware update. RMS: update multiple devices at once. Keep settings: update FW without losing configuration. Factory reset: restores all settings to default.

FIRMWARE CUSTOMISATION
OS: RutOS (OpenWrt based Linux). Languages: Busybox shell, Lua, C, C++. SDK provided for custom firmware. GPL customization allowed for branded firmware/web page.

INPUT / OUTPUT
2 x configurable digital I/O on 4-pin connector. Digital Input: 0-6V low, 8-50V high. Digital Output: max 30V, 300 mA. Event triggers via Email, RMS, SMS. I/O juggler allows condition-based events.

POWER
4-pin industrial DC power socket, 9-50 VDC input, reverse polarity and surge protection. Passive PoE (Mode B) 9-50 VDC. Idle power <3.9 W, Max <9 W.

PHYSICAL INTERFACES

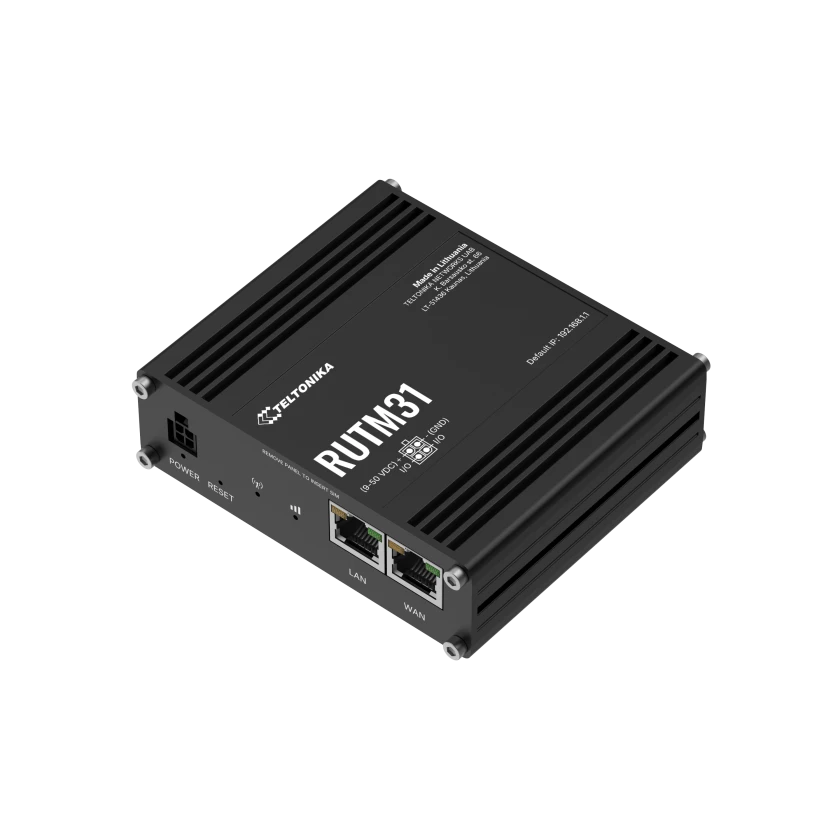

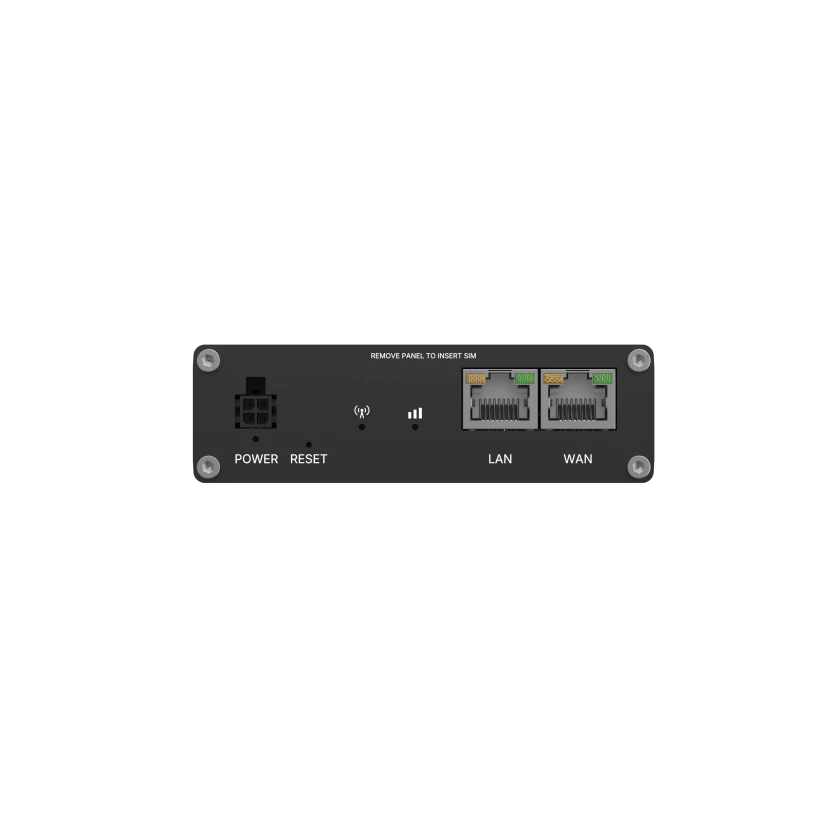

Ethernet: 2 x RJ45 10/100/1000 Mbps. I/O: 2 x digital I/O. LEDs: 1 x mobile connection type (RGB), 1 x mobile strength (RGB), 4 x LAN status, 1 x power. SIM: 2 x Mini SIM (2FF), 1.8V/3V, internal holders, optional eSIM. Power: 1 x 4-pin connector. Antennas: 4 x SMA Mobile, 2 x RP-SMA Wi-Fi. Reset: Reboot/User default/Factory reset.

PHYSICAL SPECIFICATION
Casing: Anodized aluminum. Dimensions (W x H x D): 100 x 30 x 93.7 mm. Weight: 319 g. Mounting: DIN rail, wall, flat surface (additional kit required).

OPERATING ENVIRONMENT
Temperature: -40°C to 65°C. Humidity: 10% to 90% non-condensing. IP Rating: IP30.

REGULATORY & TYPE APPROVALS

REGULATORY
CE, UKCA, CB, EAC, UCRF, RCM, WEEE.

EMC EMISSIONS & IMMUNITY
Standards: EN 55032:2015+A11:2020+A1:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021, EN 301 489-1 V2.2.3, EN 301 489-3 V2.3.2, EN 301 489-17 V3.2.4, EN 301 489-52 V1.2.1, AS/NZS CISPR 32:2015+A1:2020.

ESD
EN 61000-4-2:2009.

RADIATED IMMUNITY
EN IEC 61000-4-3:2020.

EFT
EN 61000-4-4:2012.

SURGE IMMUNITY (AC MAINS POWER PORT)
EN 61000-4-5:2014+A1:2017.

CS
EN 61000-4-6:2014.

DIP
EN 61000-4-11:2020.

RF EXPOSURE
Standards: EN 300 328 V2.2.2, EN 300 440 V2.2.1, EN 301 893 V2.1.1, EN 301 908-1 V15.2.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.2.1, EN 301 908-25 V15.1.1, AS/NZS 4268:2017+A1:2021, AS/CA S042.1:2022, AS/CA S042.4:2022, AS/CA S042.5:2022+A1:2022.

SAFETY
Standards: CE: EN IEC 62311:2020, RCM: AS/NZS 62368.1:2022, CB: EN IEC 62368-1:2020+A11:2020.
