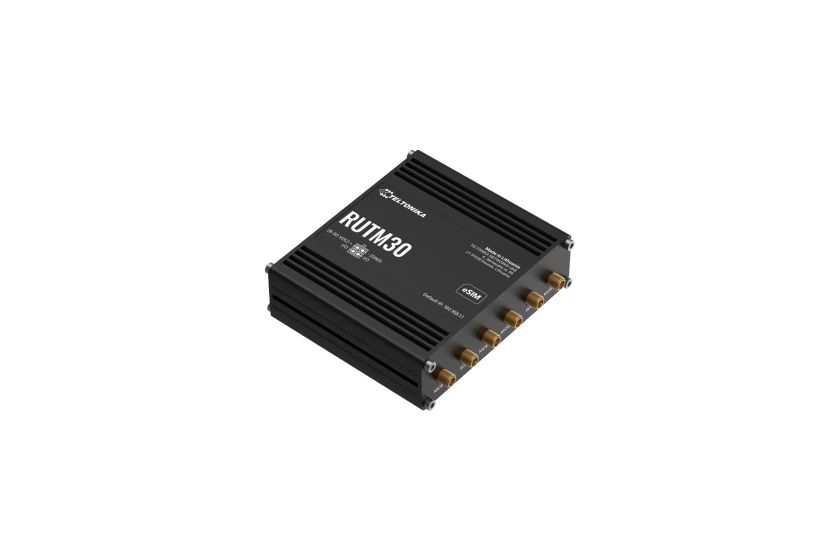

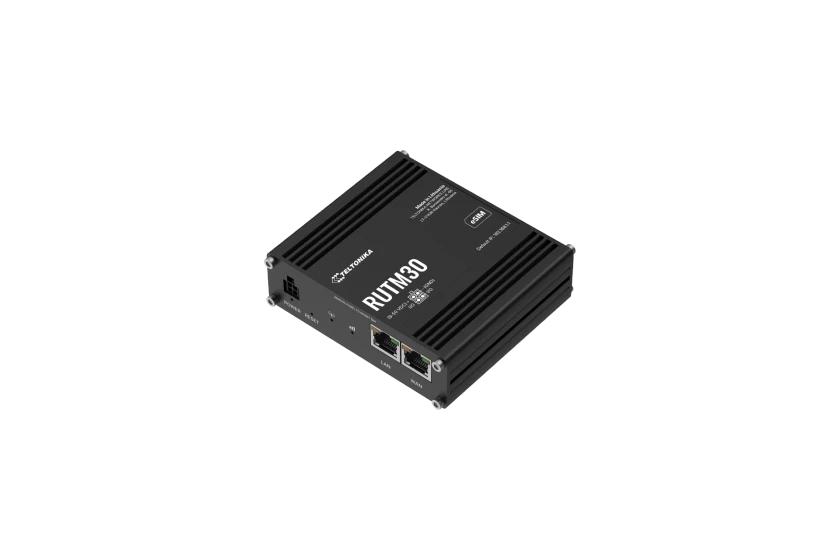

RUTM30

Description

MOBILE MODULE
The device supports 5G Sub-6 GHz SA/NSA with download speeds of 2.4 / 3.4 Gbps DL (4×4 MIMO) and upload speeds of 900 / 550 Mbps UL (2×2 MIMO). 4G LTE provides Cat 19 downlink up to 1.6 Gbps and Cat 18 uplink up to 200 Mbps. 3G connectivity offers 42 Mbps downlink and 5.76 Mbps uplink.

3GPP RELEASE
Release 16.

ESIM
Consumer type eSIM with profile download and removal operations, supporting up to seven profiles. Data plans are not included.

SIM SWITCH
Supports 2 x 2FF SIM and 1 x eSIM with automatic switching. Auto-switch triggers include weak signal, data limit, SMS limit, roaming, no network, network denied, and data connection failure.

STATUS
Status reporting includes IMSI, ICCID, operator, operator state, data connection state, network type, carrier aggregation, bandwidth, connected band, signal strength (RSSI, SINR, RSRP, RSRQ, EC/IO, RSCP), data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC.

SMS
Features include SMS status, configuration, email to SMS, SMS to email, SMS to HTTP, SMS to SMS, scheduled SMS, SMS auto-reply, and SMPP.

USSD
Supports sending and reading Unstructured Supplementary Service Data messages.

BLOCK / ALLOW LIST
Operator block or allow list by country or individual operators.

MULTIPLE PDN
Supports different PDNs for multiple network access and services.

BAND MANAGEMENT
Includes band lock and used band status display.

SIM IDLE PROTECTION SERVICE
Allows configuration to periodically switch to the unused SIM card and establish a data connection to prevent SIM blocking.

SIM PIN CODE MANAGEMENT
Enables setting, changing, or disabling the SIM card’s PIN.

APN
Auto APN configuration.

BRIDGE
Direct connection (bridge) between mobile ISP and device on LAN.

PASSTHROUGH
Router assigns its mobile WAN IP address to another device on LAN.

FRAMED ROUTING
Supports an IP network behind 5G UE.

WIRELESS
Wireless mode includes 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), and Station (STA).

WI-FI SECURITY
Supports WPA2-Enterprise (PEAP), WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF).

SSID / ESSID
Supports SSID stealth mode and access control based on MAC address.

WI-FI USERS
Up to 150 simultaneous connections.

WIRELESS CONNECTIVITY FEATURES
Supports wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k).

WIRELESS MAC FILTER
Allowlist and blocklist.

WIRELESS QR CODE GENERATOR
Allows automatic network access once the QR code is scanned.

TRAVELMATE
Forwards Wi-Fi hotspot landing page to a subsequent connected device.

ETHERNET
WAN: 1 x WAN port 10/100/1000 Mbps, compliant with IEEE 802.3, 802.3u, 802.3az, supports auto MDI/MDIX crossover.
LAN: 1 x LAN port 10/100/1000 Mbps, compliant with IEEE 802.3, 802.3u, 802.3az, supports auto MDI/MDIX crossover.

NETWORK
Routing supports static routing and dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP) with policy-based routing.

NETWORK PROTOCOLS
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On LAN (WOL).

VOIP PASSTHROUGH SUPPORT
H.323 and SIP-ALG protocol NAT helpers for proper VoIP packet routing.

CONNECTION MONITORING
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection.

FIREWALL
Port forward, traffic rules, custom rules, TTL target customization.

FIREWALL STATUS PAGE
View all firewall statistics, rules, and rule counters.

PORT MANAGEMENT
View and configure device ports, enable/disable, change speed, and toggle auto-configuration.

NETWORK TOPOLOGY
Visual representation of connected devices in the network.

HOTSPOT
Captive portal, internal/external Radius server, MAC authentication, SMS authorization, SSO, landing page, walled garden, user scripts, URL parameters, user groups, individual/group limitations, user management, 9 default themes with optional custom upload/download.

HOTSPOT 2.0
Wi-Fi standard for seamless, secure, automatic connection to trusted wireless networks.

DHCP
Static/dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases (MAC with wildcards).

QOS / SMART QUEUE MANAGEMENT (SQM)
Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e.

DDNS
Supported by 77+ service providers; others configurable manually.

DNS OVER HTTPS
Enables secure DNS resolution by routing queries over HTTPS.

NETWORK BACKUP
Wi-Fi WAN, Mobile, VRRP, Wired options for automatic failover.

LOAD BALANCING
Balances Internet traffic over multiple WAN connections.

SSHFS
Mount remote file system via SSH.

VRF SUPPORT
Initial virtual routing and forwarding (VRF) support.

TRAFFIC MANAGEMENT
Real-time monitoring, wireless signal charts, traffic usage history.

SECURITY
Firewall rules, DMZ, NAT, NAT-T, NAT64, attack prevention (DDoS, port scans), VLAN separation, mobile quota control, web filter, access control, TPM 2.0, certificate manager, 802.1x.

VPN
Supports OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale with multiple encryption options.

OPC UA / MODBUS / DNP3 / DLMS/COSEM
Client/server support with TCP connections, MODBUS TCP custom registers, DLMS standard protocol support.

DATA TO SERVER
HTTP(S), MQTT, Azure MQTT; custom LUA scripting; MQTT Gateway for MODBUS server.

API
Teltonika Networks Web API (beta) support.

MONITORING & MANAGEMENT
WEB UI, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, MODBUS, RMS, IoT Platforms (ThingWorx, Cumulocity, Azure IoT Hub, AWS IoT Core).

SYSTEM CHARACTERISTICS
CPU: MediaTek Dual-Core 880 MHz, MIPS1004Kc.
RAM: 256 MB DDR3.
FLASH Storage: 16 MB NOR, 256 MB NAND.

FIRMWARE / CONFIGURATION
WEB UI: FW update, configuration profiles, backup.
FOTA: Firmware update.
RMS: Update multiple devices at once.
Keep settings: Update FW without losing configuration.
Factory settings reset: Restores all system settings.

FIRMWARE CUSTOMISATION
OS: RutOS (OpenWrt based).
Languages: Busybox shell, Lua, C, C++.
SDK package for development, GPL customization supported.

INPUT / OUTPUT
2 x configurable digital I/O on 4-pin connector, email/RMS/SMS events, I/O juggler for event triggers.

POWER
4-pin DC power socket, 9-50 VDC input, reverse polarity & surge protection. PoE (passive) mode B 9-50 VDC. Idle <3.9 W, Max <9 W.

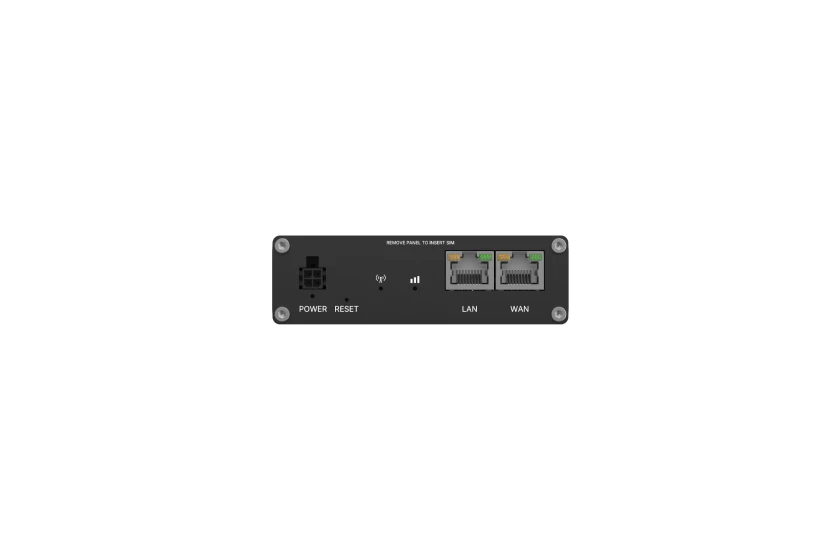

PHYSICAL INTERFACES
Ethernet: 2 x RJ45 10/100/1000 Mbps.
I/O: 2 x configurable digital I/O.
Status LEDs: Mobile type/strength, 4 x LAN, 1 x Power.
SIM: 2 x Mini SIM (2FF) 1.8 V/3 V.

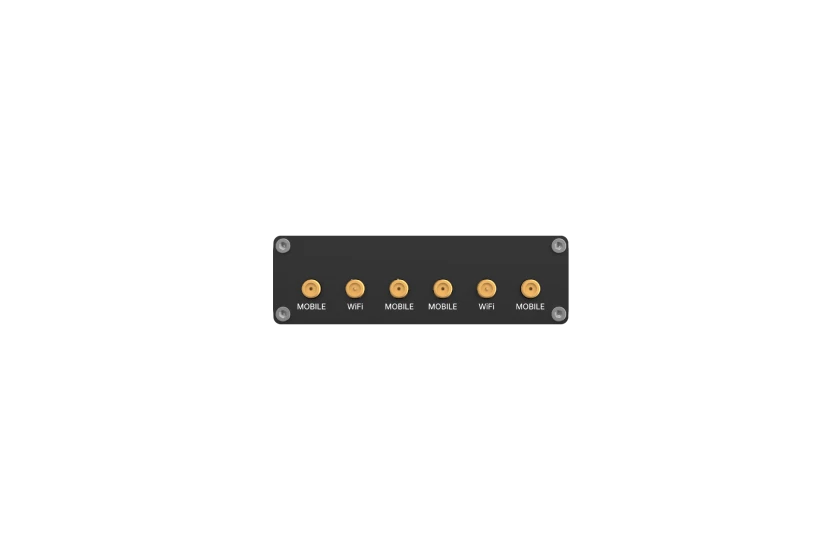

Antennas: 4 x SMA (Mobile), 2 x RP-SMA (Wi-Fi).
Reset: Reboot/User default/Factory reset.

PHYSICAL SPECIFICATION
Casing: Anodized aluminum.
Dimensions: 100 x 30 x 93.7 mm.
Weight: 319 g.
Mounting: DIN rail, wall, flat surface (kit required).

OPERATING ENVIRONMENT
Temperature: -40 °C to 75 °C.
Humidity: 10% to 90% non-condensing.
Ingress Protection: IP30.

REGULATORY & TYPE APPROVALS
CE, UKCA, CB, EAC, UCRF, RCM, R-NZ, WEEE.

EMC EMISSIONS & IMMUNITY
EN 55032:2015 + A11:2020 + A1:2020, EN 55035:2017 + A11:2020, EN IEC 61000-3-2:2019 + A1:2021, EN 301 489-1 V2.2.3, EN 301 489-3 V2.3.2, EN 301 489-17 V3.2.4, EN 301 489-52 V1.2.1.

RF STANDARDS
EN 300 328 V2.2.2, EN 300 440 V2.2.1, EN 301 893 V2.1.1, EN 301 908-1 V15.2.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.2.1, EN 301 908-25 V15.1.1.

SAFETY STANDARDS
CE: EN IEC 62311:2020, CB: EN IEC 62368-1:2020 + A11:2020, RCM: TBD.
