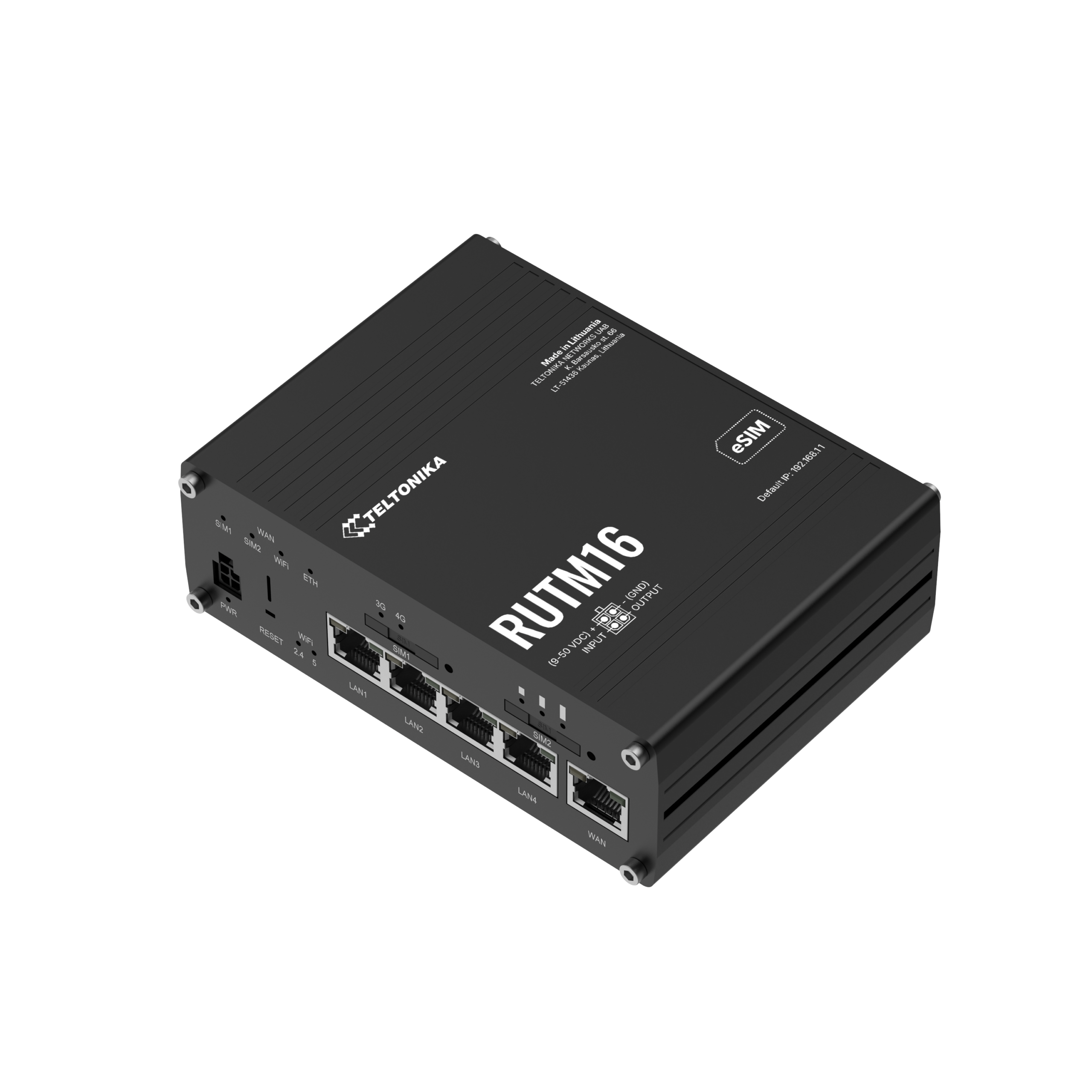

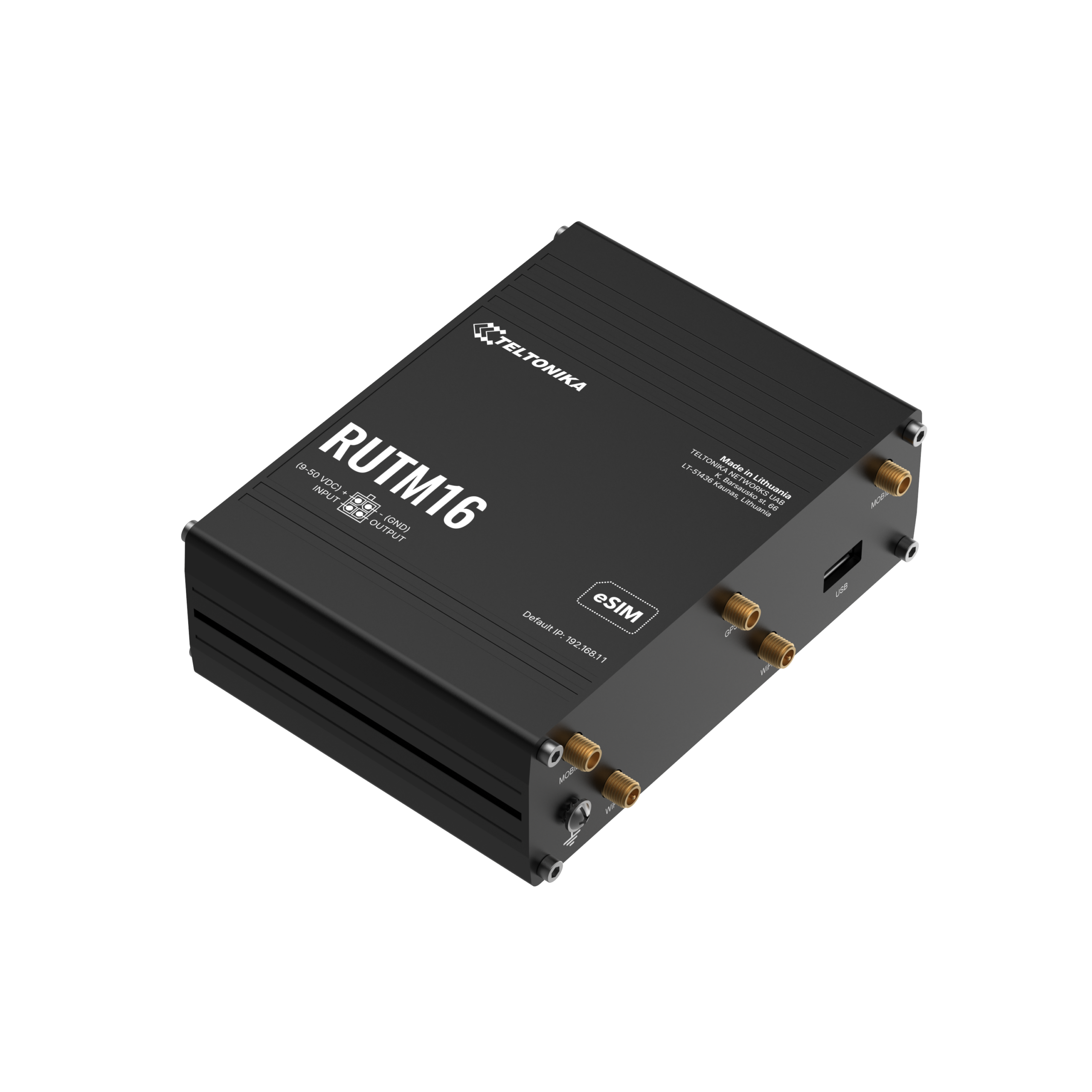

RUTM16

Description

MOBILE
Mobile module
4G LTE Cat 6 up to 300 DL / 50 UL Mbps; 3G up to 42 DL / 5.76 UL Mbps

3GPP Release
Release 12

eSIM
Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans

SIM switch
Dual SIM cards and eSIM, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail

Status
IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC

SMS
SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

USSD
Supports sending and reading Unstructured Supplementary Service Data messages

Block/Allow list
Operator block/allow list by country or individual operators

Multiple PDN
Possibility to use different PDNs for multiple network access and services

Band management
Band lock, used band status display

SIM idle protection service
Periodic switch to unused SIM to prevent SIM blocking

SIM PIN code management
Set, change, or disable SIM PIN

APN
Auto APN

Bridge
Direct connection between mobile ISP and LAN device

Passthrough
Assigns mobile WAN IP to LAN device

WIRELESS
Wireless mode
802.11b/g/n/ac Wave 2 (Wi-Fi 5), up to 867 Mbps, dual band, MU-MIMO

Wi-Fi security
WPA2-Enterprise (PEAP), WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, auto cipher modes, client separation, EAP-TLS with PKCS#12, disable auto-reconnect, 802.11w PMF

SSID / ESSID
SSID stealth mode, MAC-based access control

Wi-Fi users
Up to 150 simultaneous connections

Wireless connectivity features
Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)

Wireless MAC filter
Allowlist, blocklist

Wireless QR code generator
QR-based automatic Wi-Fi access

TravelMate
Forwards Wi-Fi hotspot landing page to connected device

ETHERNET
WAN
1 × WAN port 10/100/1000 Mbps, IEEE 802.3, 802.3u, 802.3az, auto MDI/MDIX

LAN
4 × LAN ports 10/100/1000 Mbps, IEEE 802.3, 802.3u, 802.3az, auto MDI/MDIX

NETWORK
Routing
Static routing, dynamic routing (BGP, OSPFv2, RIP v1/v2, EIGRP, NHRP), policy-based routing

Network protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake on LAN, VXLAN

VoIP passthrough support
H.323 and SIP-ALG NAT helpers

Connection monitoring
Ping reboot, Wget reboot, periodic reboot, LCP and ICMP link inspection

Firewall
WebUI-enabled rules, unlimited CLI rules, DMZ, NAT, NAT-T, NAT64

Firewall status page
Statistics, rules, counters

Port management
Enable/disable ports, speed control, auto-configuration

Network topology
Visual representation of connected devices

HOTSPOT
Captive portal, internal/external RADIUS, MAC authentication, SMS authorization, SSO, internal/external landing pages, walled garden, scripts, URL parameters, user groups, per-user/group limits, user management, 9 customizable themes

Hotspot 2.0
Seamless secure Wi-Fi connectivity standard

DHCP
Static and dynamic IP allocation, relay, server configuration, static leases with MAC wildcards

QOS / SQM
Traffic prioritization by source, destination, service, protocol or port, WMM, 802.11e

DDNS
Support for 77+ providers, manual configuration supported

DNS over HTTPS
Secure DNS resolution over HTTPS

NETWORK BACKUP
Wi-Fi WAN, mobile, VRRP, wired failover

LOAD BALANCING
Multi-WAN traffic balancing

SSHFS
Mount remote filesystem via SSH

VRF SUPPORT
Initial VRF support

TRAFFIC MANAGEMENT
Real-time monitoring, signal charts, traffic history

SECURITY
802.1X
Port-based network access control

Authentication
PSK, digital certificates, X.509, TACACS+, RADIUS, IP/login blocking, time-based lockout, random password generator

Attack prevention
DDoS protection, port scan prevention, SYN-FIN, SYN-RST, X-mas, NULL, FIN scans

VLAN
Port-based and tag-based VLANs

Mobile quota control
Data limits, schedules, warnings, phone numbers

Web filter
Website allowlist and blocklist

Access control
SSH, WebUI, CLI, Telnet access management

Certificate manager
CA, server, client, Let’s Encrypt, SCEP certificates

VPN
OpenVPN (client/server), IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale

INDUSTRIAL PROTOCOLS
OPC UA, MQTT Gateway, MODBUS, DNP3, DLMS/COSEM

MONITORING & MANAGEMENT
WebUI, FOTA, SSH, SMS, TR-069, MQTT, SNMP, JSON-RPC, RMS

SYSTEM CHARACTERISTICS
MediaTek dual-core 880 MHz CPU, 256 MB DDR3 RAM, 16 MB NOR + 256 MB NAND flash

FIRMWARE CUSTOMISATION
RutOS (OpenWrt-based), SDK, GPL customization, package manager

LOCATION TRACKING
GNSS (GPS, GLONASS, BeiDou, Galileo, QZSS), geofencing, NMEA, NTRIP

INTERFACES & POWER
Ethernet, USB 2.0, digital I/O, passive PoE, 9–50 VDC input

PHYSICAL SPECIFICATION
Anodized aluminum housing, 132 × 44.2 × 104 mm, 530 g, DIN rail / wall / flat mount

OPERATING ENVIRONMENT
-40 °C to 75 °C, 10–90% RH non-condensing, IP30

REGULATORY
CE / UKCA, FCC, Giteki, WEEE
