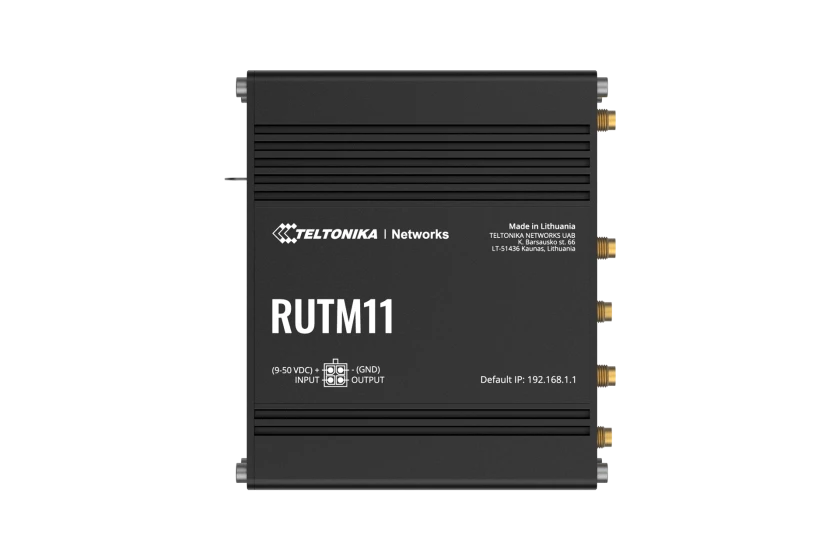

RUTM11

MOBILE MODULE
The device supports 4G LTE Cat 6 up to 300 DL/50 UL Mbps; 3G up to 42 DL/5.76 UL Mbps.

3GPP RELEASE
Release 12.

SIM SWITCH
Supports 2 SIM cards with auto-switch cases including weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, and SIM idle protection.

STATUS AND MONITORING
Status reporting includes IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC.

SMS
SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP.

USSD
Supports sending and reading Unstructured Supplementary Service Data messages.

BLOCK/ALLOW LIST
Operator block or allow list by country or separate operators.

MULTIPLE PDN
Supports different PDNs for multiple network access and services.

BAND MANAGEMENT
Includes band lock and used band status display.

SIM IDLE PROTECTION SERVICE
Provides the possibility to configure the router to periodically switch to the unused SIM card and establish a data connection to prevent the SIM card from being blocked.

SIM PIN CODE MANAGEMENT
Enables setting, changing, or disabling the SIM card’s PIN.

APN
Auto APN.

BRIDGE
Direct connection (bridge) between mobile ISP and device on LAN.

PASSTHROUGH
Router assigns its mobile WAN IP address to another device on LAN.

WIRELESS

Wireless mode
802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO).

Wi-Fi security
WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF).

SSID/ESSID
SSID stealth mode and access control based on MAC address.

Wi-Fi users
Up to 150 simultaneous connections.

Wireless Connectivity Features
Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k).

Wireless MAC filter
Allowlist, blocklist.

Wireless QR code generator
Once scanned, a user will automatically enter your network without needing to input login information.

TravelMate
Forward Wi-Fi hotspot landing page to a subsequent connected device.

ETHERNET

WAN
1 x WAN port 10/100/1000 Mbps, compliant with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover.

LAN
3 x LAN ports, 10/100/1000 Mbps, compliant with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover.

NETWORK

Routing
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing.

Network protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN.

VoIP passthrough support
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets.

Connection monitoring
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection.

Firewall
Port forward, traffic rules, custom rules, TTL target customisation.

Firewall status page
View all Firewall statistics, rules, and rule counters.

Port management
View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and more.

Network topology
Visual representation of your network, showing which devices are connected to which other devices.

DHCP
Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards.

QoS / Smart Queue Management (SQM)
Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e.

DDNS
Supported by >77 service providers, others can be configured manually.

DNS over HTTPS
DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS.

Network backup
Wi-Fi WAN, Mobile, VRRP, Wired options, each usable as automatic Failover.

Load balancing
Balances Internet traffic over multiple WAN connections.

Hotspot
Captive portal, internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optional ability to upload/download custom hotspot themes.

SSHFS
Possibility to mount remote file system via SSH protocol.

VRF support
Initial virtual routing and forwarding (VRF) support.

Traffic Management
Real-time monitoring, wireless signal charts, traffic usage history.

SECURITY

802.1X
Port-based network access control client.

Authentication
Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator.

Firewall
Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64.

Attack prevention
DDOS prevention (SYN flood, SSH, HTTP/HTTPS attacks), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks).

VLAN
Port and tag-based VLAN separation.

Mobile quota control
Mobile data limit, customizable period, start time, warning limit, phone number.

WEB filter
Blacklist for blocking unwanted websites, Whitelist for specifying allowed sites only.

Access control
Flexible access control of SSH, Web interface, CLI, and Telnet.

Certificate Manager
Certificate creation tool allows creation of CA, server, client, Let’s Encrypt, SCEP certificates.

VPN

OpenVPN
Multiple clients and a server can run simultaneously, 27 encryption methods.

OpenVPN Encryption
DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256.

IPsec
XFRM, IKEv1, IKEv2 with 14 encryption methods.

GRE
GRE tunnel, GRE tunnel over IPsec support.

PPTP, L2TP
Client/Server instances run simultaneously, L2TPv3, L2TP over IPsec support.

Stunnel
Proxy adding TLS encryption functionality to existing clients and servers.

DMVPN
Phase 2 & 3, dual hub support.

SSTP
SSTP client instance support.

ZeroTier
ZeroTier VPN client support.

WireGuard
WireGuard VPN client and server support.

Tinc
Encryption, authentication, compression in tunnels; client and server support.

Tailscale
Encrypted point-to-point connections using WireGuard protocol.

OPC UA
Client, Server; TCP connection.

MODBUS
Server, Client; TCP, USB; custom register block requests.

DATA TO SERVER
HTTP(S), MQTT, Azure MQTT; extract parameters from multiple sources, send to a single server; LUA scripting supported.

MQTT Gateway
Modbus MQTT Gateway to send commands & receive data via MQTT broker.

DNP3
Station, Outstation; TCP, USB.

DLMS/COSEM
Client; TCP, USB.

API
Teltonika Networks Web API (beta) support: https://developers.teltonika-networks.com.

MONITORING & MANAGEMENT

WEB UI
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, event logs, system log, kernel log, Internet status.

FOTA
Firmware update from server, automatic notification.

SSH
SSH v1/v2.

SMS
SMS status, configuration.

CALL
Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with timer.

EMAIL
Receive email message status alerts.

TR-069
Supports OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem.

MQTT
MQTT Broker, MQTT publisher.

SNMP
SNMP v1/v2/v3, SNMP Trap, Brute force protection.

RMS
Teltonika Remote Management System.

IoT PLATFORMS
ThingWorx, Cumulocity, Azure IoT Hub, AWS IoT Core; monitoring, reboot, firmware upgrade, direct method support, plug & play provisioning.

SYSTEM CHARACTERISTICS
CPU: MediaTek Dual-core 880 MHz, MIPS1004Kc.
RAM: 256 MB DDR3.
FLASH: 16 MB serial NOR flash, 256 MB serial NAND flash.

FIRMWARE / CONFIGURATION
WEB UI, FOTA, RMS, Keep settings, Factory reset.

FIRMWARE CUSTOMISATION
Operating system: RutOS (OpenWrt based Linux OS).
Supported languages: Busybox shell, Lua, C, C++.
Development tools: SDK package.
GPL customization: Custom firmware, branding, web pages.
Package Manager: Install additional software.

LOCATION TRACKING
GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS.
Coordinates via WebUI, SMS, TAVL, RMS.
NMEA 0183. NTRIP protocol supported.
Geofencing: multiple configurable zones.

USB
USB 2.0; Samba share, USB-to-serial; external HDD, flash drive, additional modem, printer, USB-serial adapter.
Storage: FAT, FAT32, exFAT, NTFS (read-only), ext2/3/4.

INPUT / OUTPUT
Input: 1 x Digital Input, 0–6 V low, 8–50 V high.
Output: 1 x Digital Output, Open collector, max 50 V, 300 mA.
Events: Email, RMS, SMS.
I/O juggler for event conditions.

POWER
Connector: 4-pin industrial DC socket.
Input voltage: 9–50 VDC, reverse polarity & surge protection.
PoE (passive): LAN1, Mode B, 9–50 VDC.
Power consumption: Idle < 3.9 W, Max < 12.3 W.

PHYSICAL INTERFACES
Ethernet: 4 x RJ45 10/100/1000 Mbps.
I/Os: 1 x Digital Input, 1 x Digital Output.
Status LEDs: 4 WAN type, 2 Mobile type, 5 Mobile strength, 8 LAN, 1 Power, 2 Wi-Fi.
SIM: 2 Mini SIM slots (1.8V/3V).

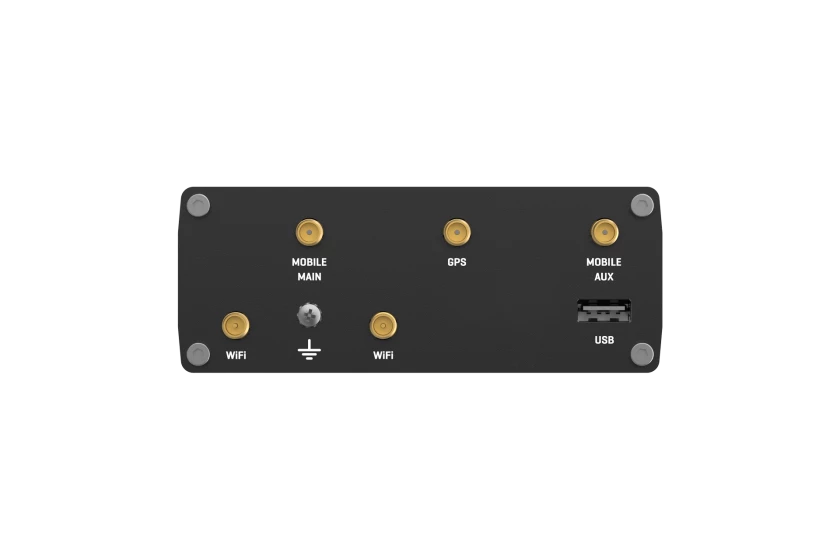

Antennas: 2 SMA Mobile, 2 RP-SMA Wi-Fi, 1 SMA GNSS.
USB: 1 x USB A.
Reset: Reboot/User default/Factory reset.
Other: 1 x Grounding screw.

PHYSICAL SPECIFICATION
Casing: Anodized aluminum.
Dimensions: 115 x 44.2 x 95.1 mm.
Weight: 460 g.
Mounting: DIN rail, wall mount, flat surface.

OPERATING ENVIRONMENT
Temperature: -40°C to 75°C.
Humidity: 10–90% non-condensing.
Ingress protection: IP30.

REGULATORY & TYPE APPROVALS
CE, UKCA, RCM, CB, UN ECE R10 (E-mark).

EMC EMISSIONS & IMMUNITY
Standards: EN 55032:2015 + A11:2021, EN 55035:2017 + A11:2020, EN IEC 61000-3-2:2019 + A1:2021, EN 61000-3-3:2013 + A1:2019 + A2:2021, EN 301 489-1 V2.2.3, EN 301 489-3 V2.1.1, EN 301 489-17 V3.2.4, EN 301 489-19 V2.2.1, EN 301 489-52 V1.2.1.
ESD: EN 61000-4-2:2009.
Radiated Immunity: EN IEC 61000-4-3:2020.
EFT: EN 61000-4-4:2012.
Surge: EN 61000-4-5:2014 + A1:2017.
CS: EN 61000-4-6:2014.
DIP: EN 61000-4-11:2020.

RF STANDARDS
EN 301 908-1 V15.2.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.2.1, EN 303 413 V1.2.1, EN 300 328 V2.2.2, EN 301 893 V2.1.1, EN 300 440 V2.2.1.

SAFETY
CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020.
RCM: AS/NZS 62368.1:2022.
CB: IEC62368-1:2018.

SAFETY (ORDINARY LOCATIONS)
CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020.
RCM: AS/NZS 62368.1:2022.
CB: IEC62368-1:2018.
