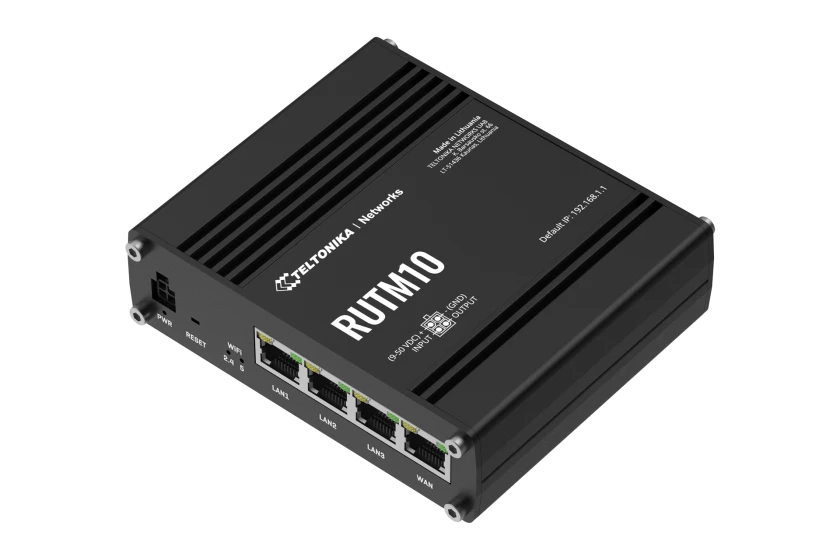

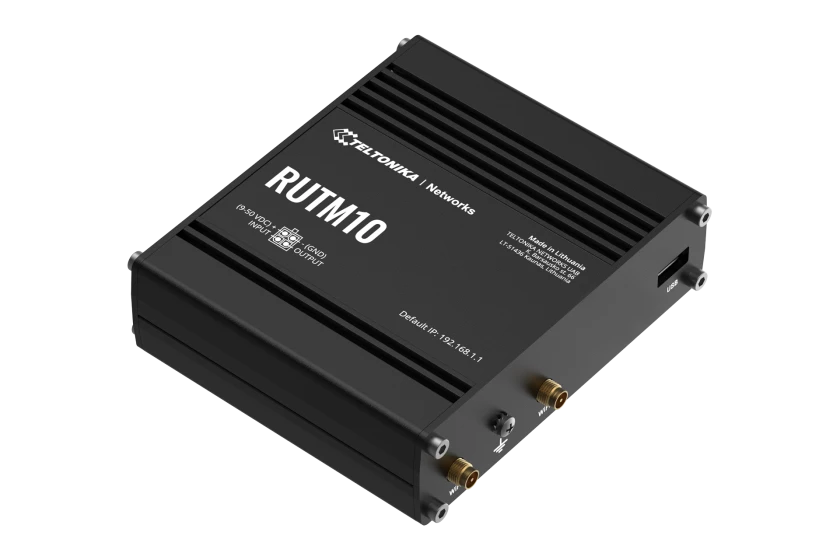

RUTM10

Description

WIRELESS MODULE
The device supports 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), and Station (STA).

WI-FI SECURITY
Supports WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, and 802.11w Protected Management Frames (PMF).

SSID/ESSID
Supports SSID stealth mode and access control based on MAC address.

WI-FI USERS
Supports up to 150 simultaneous connections.

WIRELESS CONNECTIVITY FEATURES
Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k).

WIRELESS MAC FILTER
Allowlist and blocklist.

WIRELESS QR CODE GENERATOR
Once scanned, a user will automatically enter your network without needing to input login information.

TRAVELMATE
Forwards Wi-Fi hotspot landing page to a subsequent connected device.

ETHERNET MODULE
WAN: 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover.

LAN: 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover.

NETWORK MODULE
Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing.

NETWORK PROTOCOLS
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN.

VOIP PASSTHROUGH SUPPORT
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets.

CONNECTION MONITORING
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection.

FIREWALL
Port forward, traffic rules, custom rules, TTL target customisation.

FIREWALL STATUS PAGE
View all Firewall statistics, rules, and rule counters.

PORT MANAGEMENT
View device ports, enable/disable each of them, turn auto-configuration on/off, change transmission speed, and more.

NETWORK TOPOLOGY
Visual representation of your network, showing connected devices.

DHCP
Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases (MAC with wildcards).

QOS / SMART QUEUE MANAGEMENT (SQM)
Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e.

DDNS
Supported >77 service providers; others configurable manually.

DNS OVER HTTPS
DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS.

NETWORK BACKUP
Wi-Fi WAN, VRRP, Wired options for automatic failover.

LOAD BALANCING
Balance Internet traffic over multiple WAN connections.

HOTSPOT
Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user/group limitations, user management, 9 default customisable themes, option to upload/download customised hotspot themes.

SSHFS
Possibility to mount remote file system via SSH protocol.

VRF SUPPORT
Initial virtual routing and forwarding (VRF) support.

TRAFFIC MANAGEMENT
Real-time monitoring, wireless signal charts, traffic usage history.

SECURITY MODULE
802.1X: Port-based network access control client.

AUTHENTICATION
Pre-shared key, digital certificates, X.509 certificates, TACACS+, internal & external RADIUS authentication, IP & login attempts block, time-based login blocking, built-in random password generator.

FIREWALL
Preconfigured rules via WebUI, unlimited configuration via CLI, DMZ, NAT, NAT-T, NAT64.

ATTACK PREVENTION
DDOS prevention (SYN flood, SSH, HTTP/HTTPS attacks), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL, FIN scan attacks).

VLAN
Port and tag-based VLAN separation.

WEB FILTER
Blacklist and Whitelist for site access control.

ACCESS CONTROL
Flexible access control of SSH, Web interface, CLI, and Telnet.

CERTIFICATE MANAGER
Tool to create CA, server, client, Let’s Encrypt, and SCEP certificates.

VPN MODULE
Supports OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale with multiple encryption methods and client/server instances.

INDUSTRIAL PROTOCOLS
OPC UA: Client and Server over TCP.
MODBUS: Client and Server over TCP/USB, supports custom registers and various data formats.
DATA TO SERVER: Protocols HTTP(S), MQTT, Azure MQTT; custom LUA scripting to send multiple parameters to a single server.
MQTT GATEWAY: Modbus MQTT gateway for commands and data exchange.
DNP3: Station, Outstation over TCP/USB.
DLMS/COSEM: Client support over TCP/USB.
API: Teltonika Networks Web API (beta) support.

MONITORING & MANAGEMENT
WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event logs.
FOTA: Firmware update from server, automatic notifications.
SSH: v1, v2.
EMAIL: Service alert notifications.
TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem.
MQTT: Broker, publisher.
SNMP: v1, v2, v3, traps, brute force protection.
JSON-RPC: Management API over HTTP/HTTPS.
RMS: Teltonika Remote Management System.
IOT PLATFORMS: Cumulocity Cloud, Azure IoT Hub with Data to Server and Device Provisioning Service integration.

SYSTEM CHARACTERISTICS
CPU: MediaTek, Dual-Core, 880 MHz, MIPS1004Kc.
RAM: 256MB DDR3.
FLASH STORAGE: 16 MB serial NOR flash, 256 MB serial NAND flash.

FIRMWARE / CONFIGURATION
WEB UI: Update FW from file, check FW on server, configuration profiles, backup.
FOTA: Update FW.
RMS: Update FW/config for multiple devices.
KEEP SETTINGS: Update FW without losing configuration.
FACTORY SETTINGS RESET: Full reset restores all system settings, IP, PIN, and user data.

FIRMWARE CUSTOMISATION
OPERATING SYSTEM: RutOS (OpenWrt based Linux OS).
SUPPORTED LANGUAGES: Busybox shell, Lua, C, C++.
DEVELOPMENT TOOLS: SDK package with build environment provided.
GPL CUSTOMIZATION: Custom firmware and web page application branding.
PACKAGE MANAGER: Install additional software on the device.

USB MODULE
DATA RATE: USB 2.0.
APPLICATIONS: Samba share, USB-to-serial.
EXTERNAL DEVICES: HDD, flash drive, additional modem, printer, USB-serial adapter.
STORAGE FORMATS: FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4.

INPUT / OUTPUT
INPUT: 1 x Digital Input, 0–6 V logic low, 8–50 V logic high.
OUTPUT: 1 x Digital Output, Open collector, max 50 V, 300 mA.
EVENTS: Email, RMS.
I/O JUGGLER: Set I/O conditions to initiate events.

POWER MODULE
CONNECTOR: 4-pin industrial DC power socket.
INPUT VOLTAGE RANGE: 9–50 VDC, reverse polarity protection, surge protection >51 VDC 10μs max.
POE (PASSIVE): Power via LAN1 port, Mode B, 9–50 VDC, not compatible with IEEE802.3af/at/bt.
POWER CONSUMPTION: Idle <3.51 W, Max <8.65 W.

PHYSICAL INTERFACES

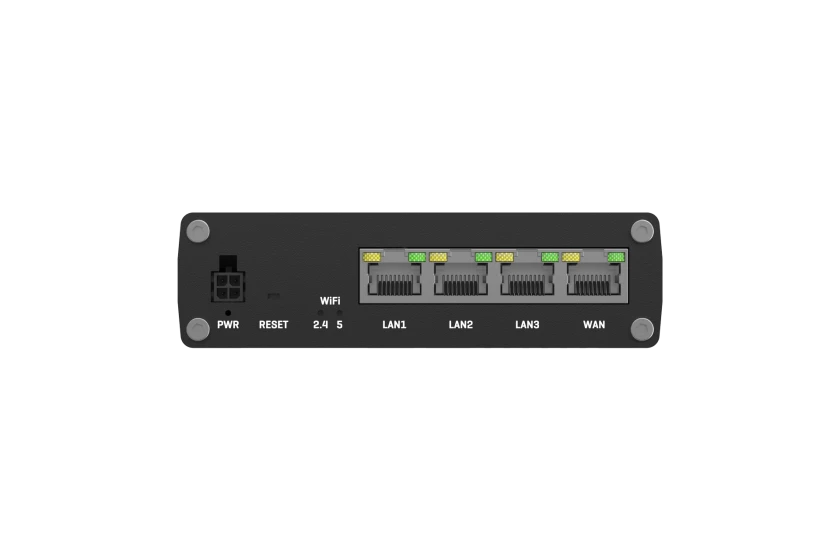

ETHERNET: 4 x RJ45 ports, 10/100/1000 Mbps.
I/OS: 1 x Digital Input, 1 x Digital Output on 4-pin power connector.
STATUS LEDS: 8 x LAN, 1 x Power, 2 x 2.4G/5G Wi-Fi LEDs.

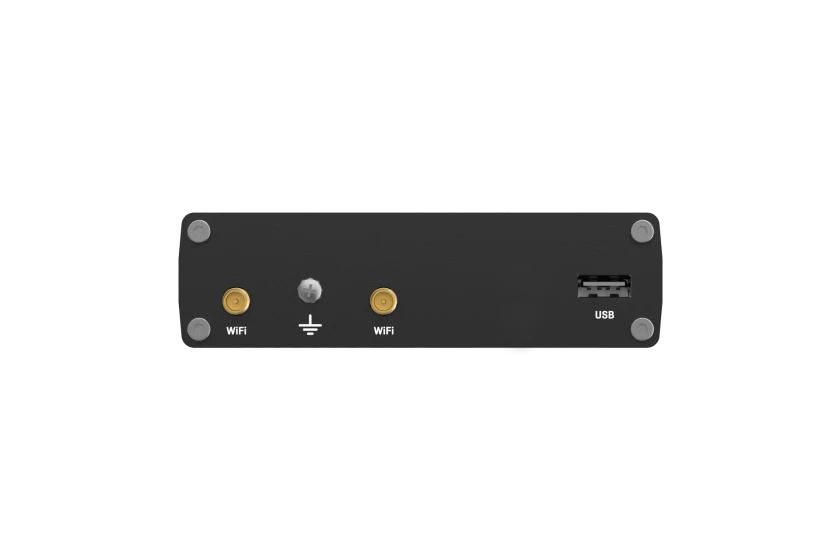

ANTENNAS: 2 x RP-SMA for Wi-Fi.
USB: 1 x USB A port.
RESET: Reboot/User default reset/Factory reset button.
OTHER: 1 x Grounding screw.

PHYSICAL SPECIFICATION
CASING MATERIAL: Anodized aluminum housing and panels.
DIMENSIONS (W x H x D): 115 x 32.2 x 95.2 mm.
WEIGHT: 359 g.
MOUNTING OPTIONS: DIN rail, wall mount, flat surface (requires additional kit).

OPERATING ENVIRONMENT
TEMPERATURE: -40 °C to 75 °C.
HUMIDITY: 10% to 90% non-condensing.
INGRESS PROTECTION RATING: IP30.

REGULATORY & TYPE APPROVALS
REGULATORY: CE, UKCA, RCM, CB, UN ECE R10 (E-mark).

EMC EMISSIONS & IMMUNITY
STANDARDS: EN 55032:2015 + A11:2021, EN 55035:2017 + A11:2020, EN IEC 61000-3-2:2019 + A1:2021, EN 61000-3-3:2013 + A1:2019 + A2:2021, EN 301 489-1 V2.2.3, EN 301 489-3 V2.1.1, EN 301 489-17 V3.2.4, EN 301 489-52 V1.2.1.

ESD: EN 61000-4-2:2009.
RADIATED IMMUNITY: EN IEC 61000-4-3:2020.
EFT: EN 61000-4-4:2012.
SURGE IMMUNITY (AC MAINS POWER PORT): EN 61000-4-5:2014 + A1:2017.
CS: EN 61000-4-6:2014.
DIP: EN IEC 61000-4-11:2020.

RF STANDARDS
EN 301 908-1 V15.2.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.2.1, EN 300 328 V2.2.2, EN 301 893 V2.1.1, EN 300 440 V2.2.1.

SAFETY STANDARDS
CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020.
RCM: AS/NZS 62368.1:2022.
CB: IEC 62368-1:2018.
