RUT276

Description

Mobile
Mobile module
5G Sub-6Ghz SA 223 Mbps DL, 123 Mbps UL; 4G LTE Cat 4 – LTE 195 Mbps DL, 105 Mbps UL
3GPP Release
Release 17
Status
IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, mobile signal graphs, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC
SMS
SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD
Supports sending and reading Unstructured Supplementary Service Data messages
Block/Allow list
Operator block/allow list (by country or separate operators)
Multiple PDN
Possibility to use different PDNs for multiple network access and services
Band management
Band lock, used band status display
SIM PIN code management
Setting, changing, or disabling SIM PIN
APN
Auto APN
Bridge
Direct connection between mobile ISP and LAN device
Passthrough
Router assigns mobile WAN IP address to LAN device
Framed routing
Support for IP network behind 5G UE

Wireless
Wireless mode
IEEE 802.11b/g/n (Wi-Fi 4) AP, Client (STA), Mesh (802.11s), Multi-AP
Wi-Fi security
WPA2-Enterprise (PEAP), WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE, AES-CCMP, TKIP, auto-cipher, client separation, EAP-TLS with PKCS#12, disable auto-reconnect, 802.11w PMF
SSID/ESSID
SSID stealth mode, MAC-based access control
Wi-Fi users
Up to 50 simultaneous connections
Wireless connectivity features
Fast roaming (802.11r), RRM (802.11k), BSS transition (802.11v), client isolation, hide SSID, WMM
Wireless MAC filter
Allowlist, blocklist
Wireless QR code generator
Automatic network entry via QR scan
TravelMate
Forward Wi-Fi hotspot landing page to subsequent device

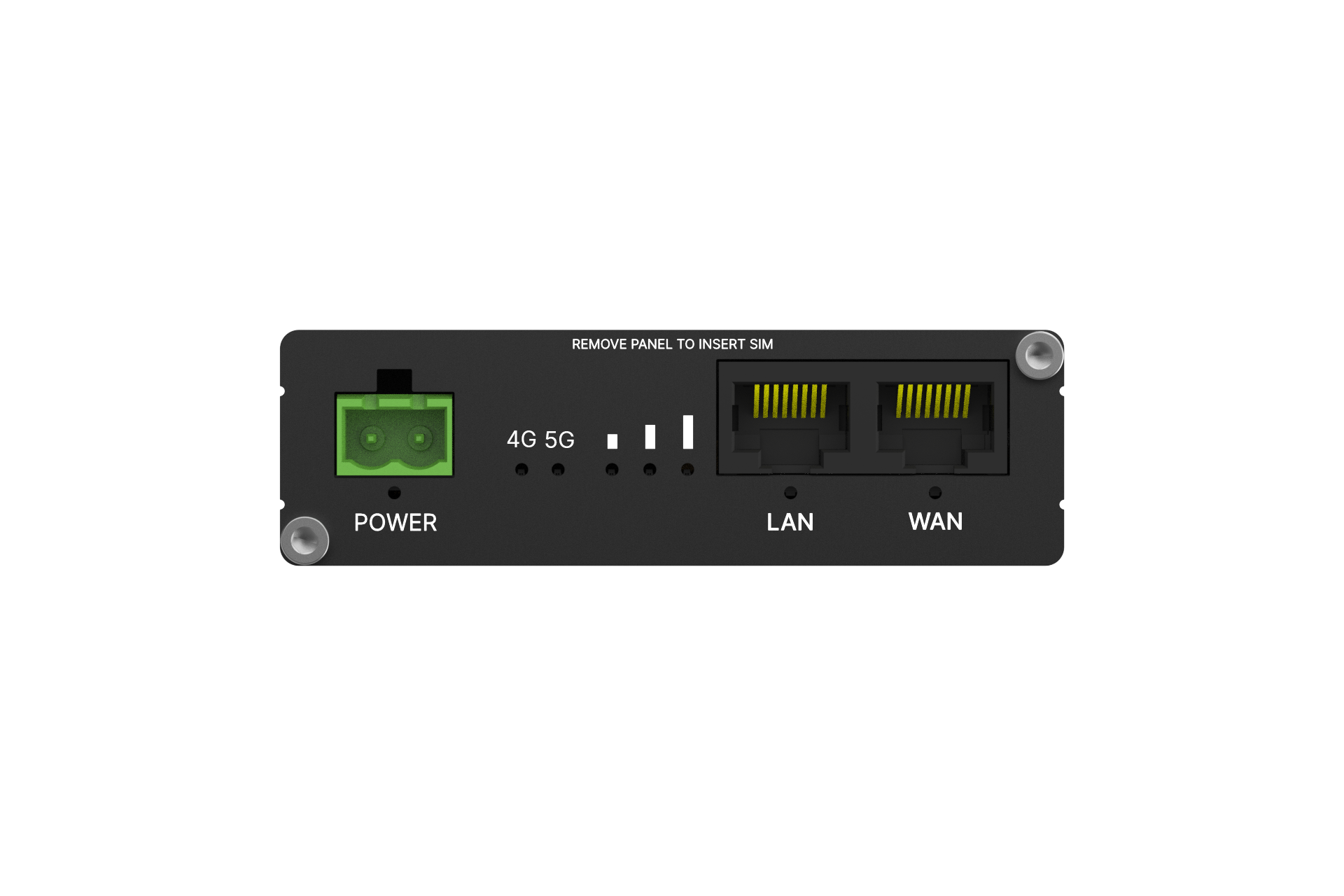

Ethernet
LAN
1 × LAN port, 10/100 Mbps, IEEE 802.3, 802.3u, 802.3az, auto MDI/MDIX
WAN
1 × WAN port, 10/100 Mbps, IEEE 802.3, 802.3u, 802.3az, auto MDI/MDIX

Network
Routing
Static routing, dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), policy-based routing
Network protocols
IPv4, IPv6, PPP, ARP, IPsec, NAT, TCP, UDP, ICMP, GRE, ESP, RIP, OSPF, BGP, EIGRP, NHRP
Connection monitoring
Ping reboot, Wget reboot, periodic reboot, LCP, ICMP
Firewall
IPv4, IPv6, stateful firewall, logging, zone-based firewall, custom rules, DMZ, statistics
Firewall status page
Firewall statistics, rules, counters
Ports management
Enable/disable ports, auto-configuration, speed control
Network topology
Visual representation of connected devices
DHCP
Static/dynamic IP allocation, relay, server configuration, static leases with MAC wildcards
QoS / SQM
Traffic prioritization by source, destination, protocol, port, WMM, 802.11e
DNS over HTTPS
Secure DNS resolution via HTTPS proxy
DDNS
Support for 77+ providers
Network backup
Wi-Fi WAN, mobile, VRRP, wired failover
Load balancing
Multiple WAN traffic balancing

Hotspot
Captive portal, internal/external RADIUS, MAC authentication, SMS authorization, SSO, landing pages, walled garden, user groups, limits, management, themes
Hotspot 2.0
Seamless secure Wi-Fi roaming standard
SSHFS
Remote filesystem mounting via SSH
VRF support
Initial VRF support
Traffic management
Real-time monitoring, signal charts, usage history

Security
Authentication
PSK, X.509 certificates, TACACS+, RADIUS, login blocking, random password generator
Firewall
WebUI presets, CLI configuration, DMZ, NAT, NAT-T, NAT64
Attack prevention
DDoS, SYN flood, SSH, HTTP/HTTPS, port scan protection
VLAN
Port-based and tag-based VLANs
Mobile quota control
Custom SIM data limits
Web filter
Website allowlist and blocklist
Access control
SSH, WebUI, CLI, Telnet access control
Certificate Manager
CA, server, client, Let’s Encrypt, SCEP
802.1X
Port-based authentication client and server

VPN
OpenVPN
Client and server, 27 encryption methods
IPsec
IKEv1/IKEv2, XFRM, multiple encryption methods
GRE
GRE tunnels, GRE over IPsec
PPTP / L2TP
Client/server, L2TPv3, IPv6
Stunnel
TLS encryption proxy
DMVPN
Phase 2/3, dual hub
SSTP
Client support
ZeroTier
Client support
WireGuard
Client and server
Tinc
Encrypted tunnels with compression
EoIP
Ethernet over IP tunneling
OpenConnect
Multi-protocol SSL VPN client

System Characteristics
CPU
Mediatek 580 MHz, MIPS 24KEc
RAM
128 MB DDR2
Flash
32 MB SPI

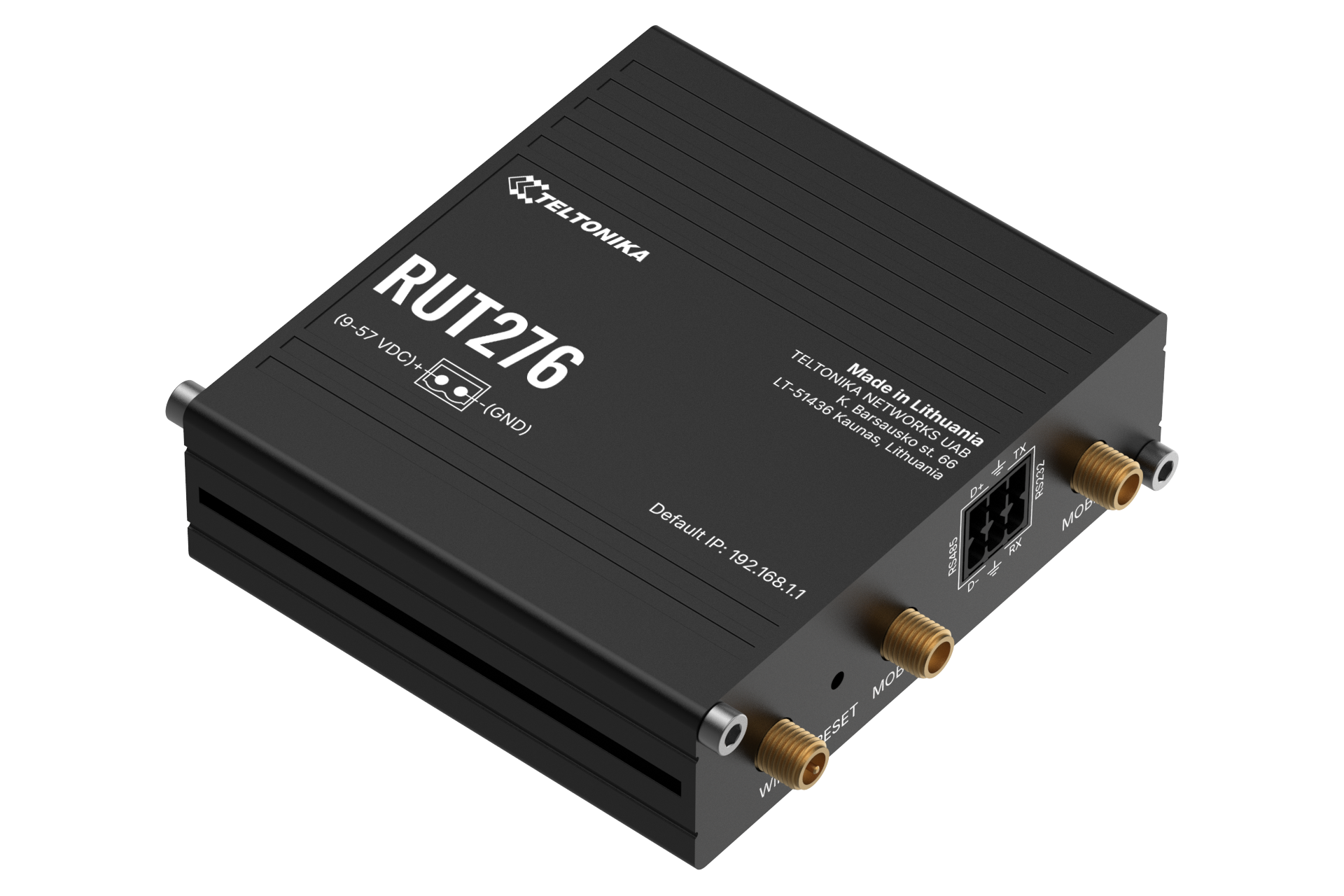

Physical Specification
Aluminum casing, 83 × 25 × 83 mm, 132 g, DIN rail, wall, flat mounting

Regulatory & Safety
CE, UKCA, RCM, EMC, RF, ESD, immunity and safety standards
