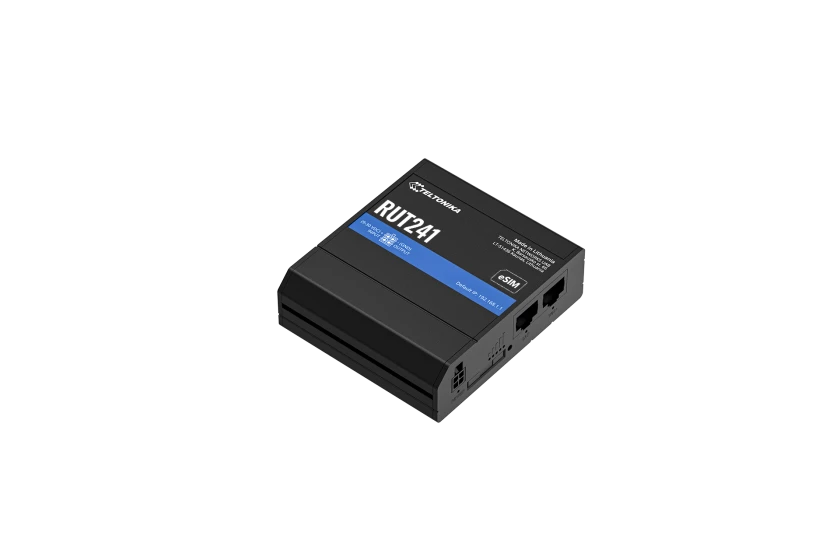

RUT241

Description

MOBILE MODULE
4G LTE Cat 4 up to 150 Mbps DL / 50 Mbps UL; 3G up to 21 Mbps DL / 5.76 Mbps UL; 2G up to 236.8 kbps DL / UL

3GPP RELEASE
Release 9

SIM SWITCH
2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection

STATUS
IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSRP, RSRQ, SINR, RSSI, EC/IO, RSCP), data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC

SMS
Status, configuration, email to SMS, SMS to email, SMS to HTTP, SMS to SMS, scheduled SMS, SMS auto-reply, SMPP

USSD
Send and read USSD messages

BLOCK/ALLOW LIST
Operator blacklist/whitelist by country or operator

MULTIPLE PDN
Different PDNs for multiple network access and services

BAND MANAGEMENT
Band lock, used band status display

SIM PIN CODE MANAGEMENT
SIM card PIN code management: set, change, disable

APN
Auto APN, configuration

BRIDGE
Direct connection between mobile ISP and device on LAN

PASSTHROUGH
Router assigns its mobile WAN IP address to device on LAN

WIRELESS MODE
802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)

WI-FI SECURITY
WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)

SSID / ESSID
SSID stealth mode, MAC-based access control

WI-FI USERS
Up to 50 simultaneous connections

WIRELESS CONNECTIVITY FEATURES
Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)

WIRELESS MAC FILTER
Allowlist, blocklist

WIRELESS QR CODE GENERATOR
Connect to Wi-Fi instantly without entering credentials

TRAVELMATE
Wi-Fi hotspot landing page forwarding

WAN
1 × WAN port, 10/100 Mbps, IEEE 802.3, IEEE 802.3u, 802.3az standards, auto MDI/MDIX crossover

LAN
1 × LAN port, 10/100 Mbps, IEEE 802.3, IEEE 802.3u standard, auto MDI/MDIX crossover

ROUTING
Static, dynamic (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), policy-based routing

NETWORK PROTOCOLS
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake on LAN (WOL), VXLAN

VOIP PASSTHROUGH SUPPORT
H.323, SIP-ALG NAT helpers

CONNECTION MONITORING
Ping reboot, Wget reboot, periodic reboot, LCP and ICMP link inspection

FIREWALL
Port forwarding, traffic rules, custom rules, TTL target

FIREWALL STATUS PAGE
Statistics, rules, counters

PORT MANAGEMENT
View and control ports, enable/disable, auto-configuration, transmission speed

NETWORK TOPOLOGY
Visual representation of network with connected devices

HOTSPOT
Captive portal, internal/external RADIUS, RADIUS MAC authentication, SMS authorization, SSO authentication, customizable landing page, walled garden, user management, theming (9 default themes)

DHCP
Static and dynamic, DHCP relay, server configuration, status, static leases, MAC address wildcards

QOS AND SQM
Traffic prioritization by source, destination, service, protocol, port, WMM, 802.11e

DYNAMIC DNS
Over 77 providers, manual configuration

DNS OVER HTTPS
Proxy support

NETWORK BACKUP AND FAILOVER
Wi-Fi WAN, mobile, VRRP, wired options

LOAD BALANCING
Traffic balancing across multiple WAN connections

SSHFS
Remote file system mounting via SSH

TRAFFIC MANAGEMENT
Real-time monitoring, wireless signal graphs, usage history

SECURITY – AUTHENTICATION
Pre-shared key, digital certificates, X.509, TACACS+, internal/external RADIUS, IP blocking, login attempt blocking, time-based rules, random password generator

FIREWALL (ADVANCED)
Preconfigured rules via WebUI, unlimited rules via CLI, DMZ, NAT, NAT-T, NAT64

ATTACK PREVENTION
DoS protection (SYN flood, SSH, HTTP/HTTPS), port scan prevention (SYN-FIN, SYN-RST, Xmas, NULL flags, FIN scan)

VLAN
Port-based and tag-based VLAN separation

MOBILE QUOTA CONTROL
Mobile data limit control with custom period, start day, data limit, warning, phone number

WEB FILTER
Blacklist, whitelist

ACCESS CONTROL
Flexible SSH, WebUI, CLI, Telnet access

CERTIFICATE MANAGER
Create CA, server, client, Let’s Encrypt, SCEP certificates

802.1X
Port-based network access control

VPN
OpenVPN client/server (multiple instances, 27 encryption methods)
IPsec (IKEv1, IKEv2, 14 encryption methods)
GRE tunnel (GRE over IPsec)
PPTP, L2TP (L2TPv3, L2TP over IPsec)
Stunnel, DMVPN (Phase 2/3, dual hub)
SSTP client, ZeroTier client
WireGuard client/server
Tinc client/server

INDUSTRIAL PROTOCOLS
OPC UA client/server, Modbus client/server (TCP), DNP3 station/outstation, DLMS/COSEM client

DATA TO SERVER
Protocols: HTTP(S), MQTT, Azure MQTT
Sources: multiple parameters and protocols
Custom Lua scripting

MQTT GATEWAY
Modbus MQTT gateway, data forwarding

API
Teltonika Web API, customizable endpoints

MONITORING AND MANAGEMENT
WebUI, firmware updates, troubleshooting, logs
FOTA, SSH, SMS control, call control
TR-069, MQTT, SNMP, JSON-RPC, RMS

IOT PLATFORMS
ThingWorx, Cumulocity, Azure IoT Hub, AWS IoT Core

SYSTEM CHARACTERISTICS
CPU: MediaTek MIPS 24KEc, 580 MHz
RAM: 128 MB DDR2 SDRAM
Flash: 16 MB SPI Flash
RutOS (OpenWrt-based), SDK tools, GPL customization, package manager

INPUT / OUTPUT
Digital input: 0–6 V low, 8–30 V high
Digital output: max 30 V, open drain, max 300 mA
Event reporting: email, RMS, SMS

POWER
Input voltage: 9–30 VDC
Protection: reverse polarity, surge protection
Passive PoE via LAN (not IEEE 802.3af/at compliant)
Consumption: < 6.5 W max

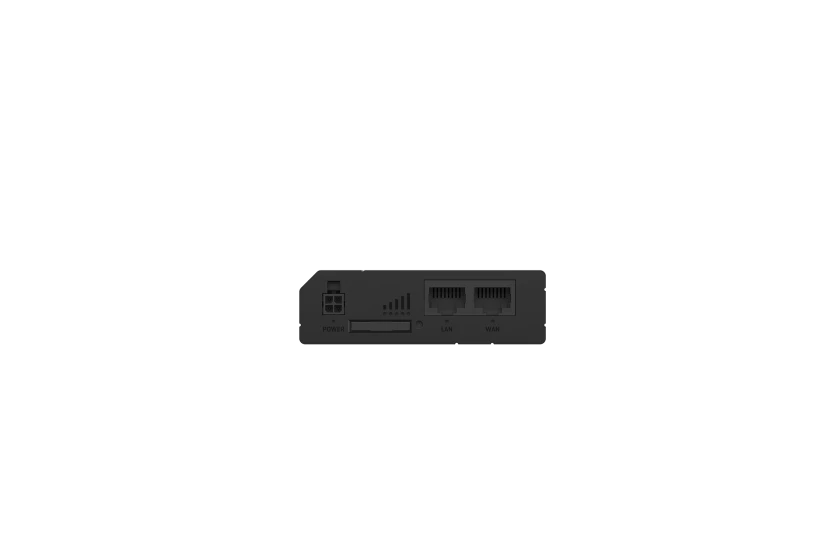

PHYSICAL INTERFACES
Ethernet: 2 × RJ45, 10/100 Mbps
I/O: 4-pin connector
LEDs: power, signal strength, connection status, network type
SIM: 1 × Mini SIM (2FF)

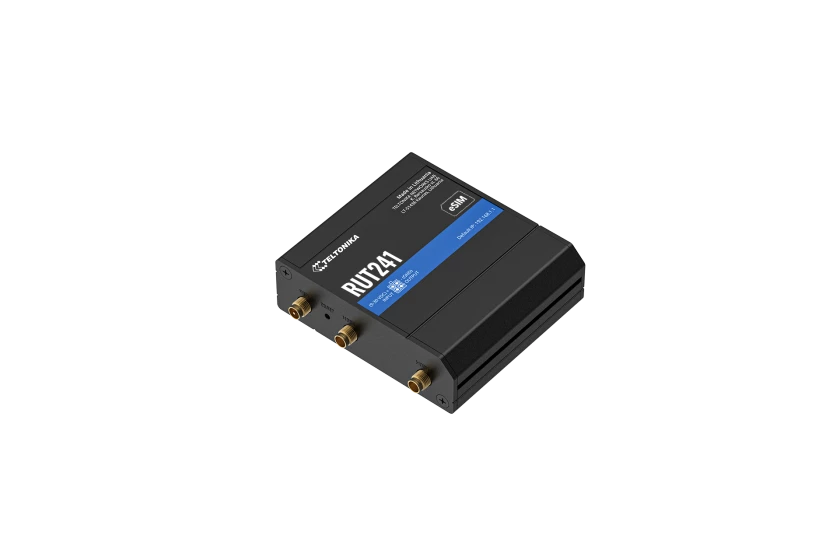

Antennas: 2 × SMA (LTE), 1 × RP-SMA (Wi-Fi)
Reset button

PHYSICAL SPECIFICATIONS
Casing: aluminum with plastic panels
Dimensions: 83 × 25 × 74 mm
Weight: 125 g
Mounting: DIN rail, wall, flat surface

OPERATING ENVIRONMENT
Operating temperature: −40 °C to +75 °C
Operating humidity: 10% to 90% non-condensing
Ingress protection: IP30

REGULATORY & TYPE APPROVALS
CE, UKCA, ANRT, ICASA, FCC, IC, PTCRB, RCM, KC, Giteki, IMDA, E-mark, CB, UL/CSA, RoHS, REACH, R118
Mobile operators: AT&T, Verizon, T-Mobile, U.S. Cellular
EMC: EN 55032, EN 55035, EN 61000-3 series, EN 301 489, EN 301 908

SAFETY
EN IEC 62368-1, EN IEC 62311, EN 50665
AS/NZS 62368.1
IEC 62368-1
UL 62368-1, CAN/CSA C22.2 No. 62368-1
