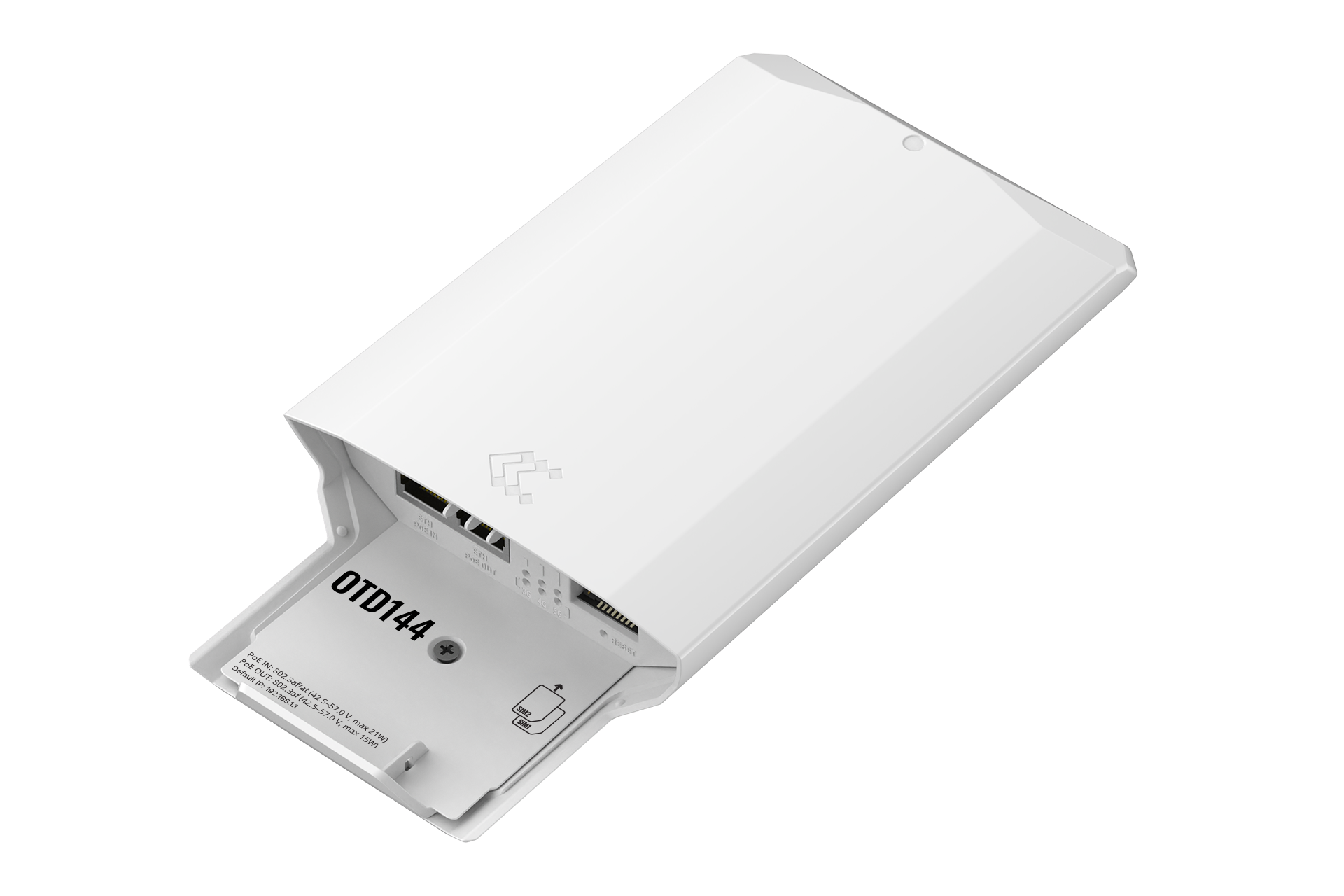

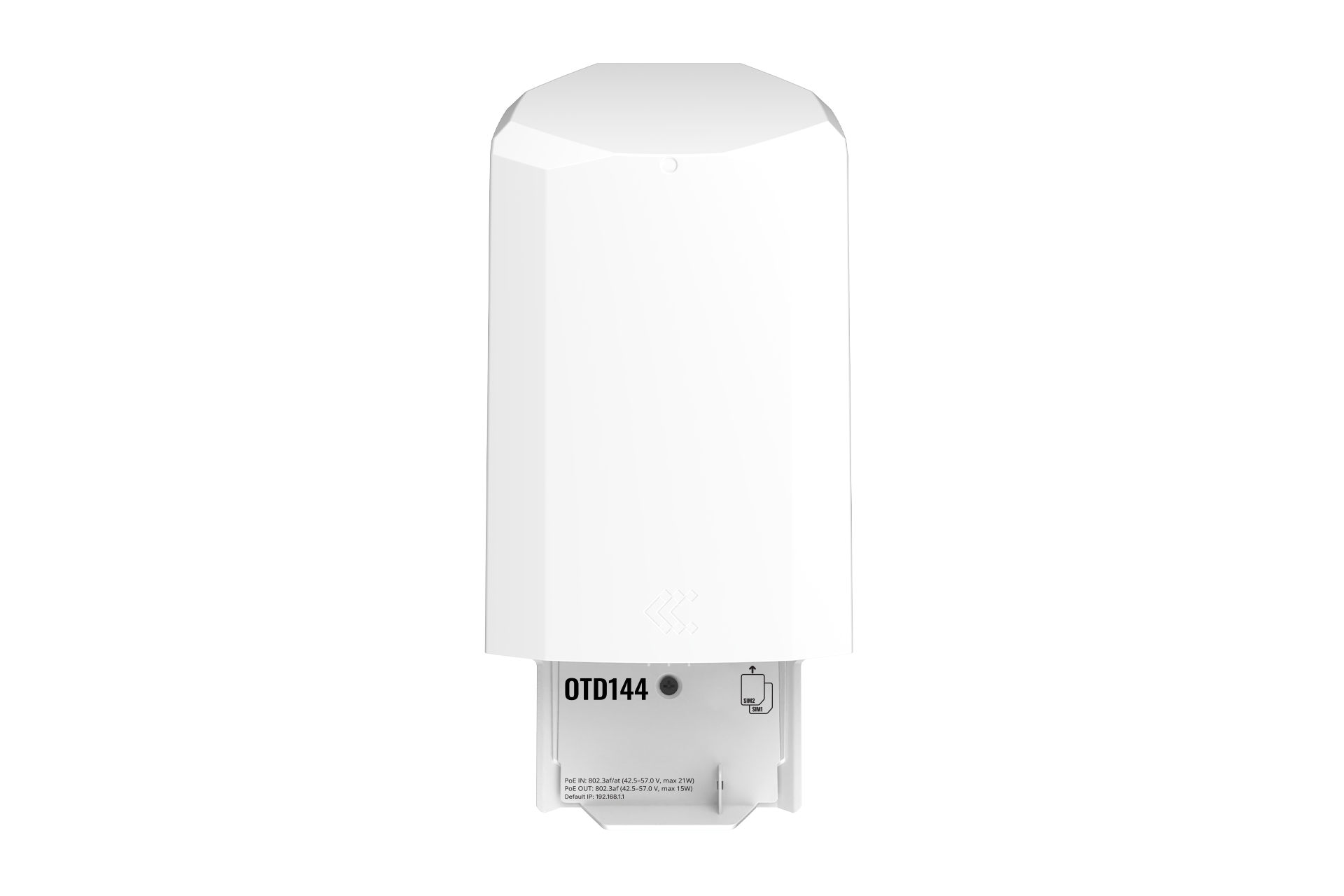

OTD144

Description

MOBILE
Mobile connectivity features and services

MOBILE MODULE
4G LTE up to 150 Mbps DL / 50 Mbps UL; 3G up to 21 Mbps DL / 5.76 Mbps UL; 2G up to 236.8 kbps DL / 236.8 kbps UL

3GPP RELEASE
Release 9

SIM SWITCH
2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection failure, SIM idle protection

STATUS
IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC

SMS
SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS auto-reply, SMPP

USSD
Supports sending and reading Unstructured Supplementary Service Data messages

BLOCK / ALLOW LIST
Operator block and allow list by country or individual operators

BAND MANAGEMENT
Band lock, used band status display

SIM PIN CODE MANAGEMENT
Set, change, or disable SIM card PIN

APN
Automatic APN configuration

BRIDGE
Direct bridge connection between mobile ISP and LAN device

PASSTHROUGH
Mobile WAN IP address assigned directly to LAN device

WIRELESS
Wireless networking capabilities

WIRELESS MODE
802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)

WI-FI SECURITY
WPA2-Enterprise (PEAP), WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames

SSID / ESSID
SSID stealth mode, MAC-based access control

WI-FI USERS
Up to 100 simultaneous connections

WIRELESS CONNECTIVITY FEATURES
Wireless mesh (802.11s), fast roaming (802.11r), radio resource measurement (802.11k), BSS transition management (802.11v), client isolation, hide SSID, WMM

WIRELESS MAC FILTER
Allowlist, blocklist

WIRELESS QR CODE GENERATOR
QR-based automatic Wi-Fi access

TRAVELMATE
Forwards Wi-Fi hotspot landing page to subsequent connected device

ETHERNET
Wired network interfaces

LAN
2 × Ethernet ports (configurable as WAN), 10/100 Mbps, IEEE 802.3, 802.3u, 802.3az compliance, auto MDI/MDIX

NETWORK
Networking and routing features

ROUTING
Static routing, dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), policy-based routing

NETWORK PROTOCOLS
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake-on-LAN (WOL), VXLAN

VOIP PASSTHROUGH SUPPORT
H.323 and SIP-ALG NAT helpers

CONNECTION MONITORING
Ping reboot, Wget reboot, periodic reboot, LCP and ICMP link inspection

FIREWALL
Port forwarding, traffic rules, custom rules, TTL target customization

FIREWALL STATUS PAGE
Firewall statistics, rules, and rule counters

PORT MANAGEMENT
Enable/disable ports, auto-configuration, speed configuration

NETWORK TOPOLOGY
Visual representation of connected network devices

DHCP
Static and dynamic IP allocation, DHCP relay, server configuration, static leases with MAC wildcards

QOS / SMART QUEUE MANAGEMENT
Traffic prioritization by source, destination, service, protocol, or port; WMM, 802.11e

DDNS
Support for over 77 service providers

DNS OVER HTTPS
Secure DNS resolution via HTTPS

NETWORK BACKUP
VRRP and wired failover options

HOTSPOT
Captive portal with internal/external RADIUS, MAC authentication, SMS authorization, SSO, landing pages, walled garden, user scripts, user groups, per-user limits, customizable themes

SSHFS
Remote file system mounting via SSH

TRAFFIC MANAGEMENT
Real-time monitoring, wireless signal charts, traffic usage history

SECURITY
System and network security features

AUTHENTICATION
Pre-shared keys, digital certificates, X.509, TACACS+, internal and external RADIUS, login attempt blocking, time-based login blocking, random password generator

FIREWALL SECURITY
Preconfigured firewall via WebUI, full CLI configuration, DMZ, NAT, NAT-T, NAT64

ATTACK PREVENTION
DDoS protection, SSH brute-force prevention, HTTP/HTTPS attack prevention, port scan protection

VLAN
Port- and tag-based VLAN separation

MOBILE QUOTA CONTROL
Mobile data limits with configurable periods, warnings, and notifications

WEB FILTER
Website block and allow lists

ACCESS CONTROL
Access control for SSH, WebUI, CLI, Telnet

CERTIFICATE MANAGER
CA, server, client, Let’s Encrypt, and SCEP certificate management

802.1X
Port-based network access control server

VPN
OpenVPN, IPsec, GRE, PPTP, L2TP, DMVPN, WireGuard, ZeroTier, SSTP, Stunnel, Tinc

OPENVPN
Multiple client and server instances, 27 encryption methods

IOT & INDUSTRIAL PROTOCOLS
MQTT, Modbus TCP, OPC UA, DNP3, DLMS/COSEM, SNMP, JSON-RPC, REST API, Lua scripting

MONITORING & MANAGEMENT
Web UI, FOTA, SSH, SMS, email alerts, TR-069, MQTT broker, SNMP, JSON-RPC, RMS

IOT PLATFORMS
ThingWorx, Cumulocity, Azure IoT Hub, AWS IoT Core

SYSTEM CHARACTERISTICS
Mediatek MIPS 24KEc 580 MHz CPU, 128 MB RAM, 16 MB flash

FIRMWARE & CONFIGURATION
RutOS (OpenWrt-based Linux), firmware update, configuration backup, RMS management, factory reset

FIRMWARE CUSTOMISATION
BusyBox shell, Lua, C, C++, Python, Java support via package manager, SDK availability, GPL customization

POE
PoE In: 1 port, IEEE 802.3af/at
PoE Out: 1 port, IEEE 802.3af Alternative B, up to 15 W

POWER
RJ45 power input, 42.5–57 VDC, power consumption idle < 2.5 W, max < 6 W, PoE max < 21 W

PHYSICAL INTERFACES
2 × RJ45 Ethernet ports, 2 × internal mobile antennas

PHYSICAL SPECIFICATION

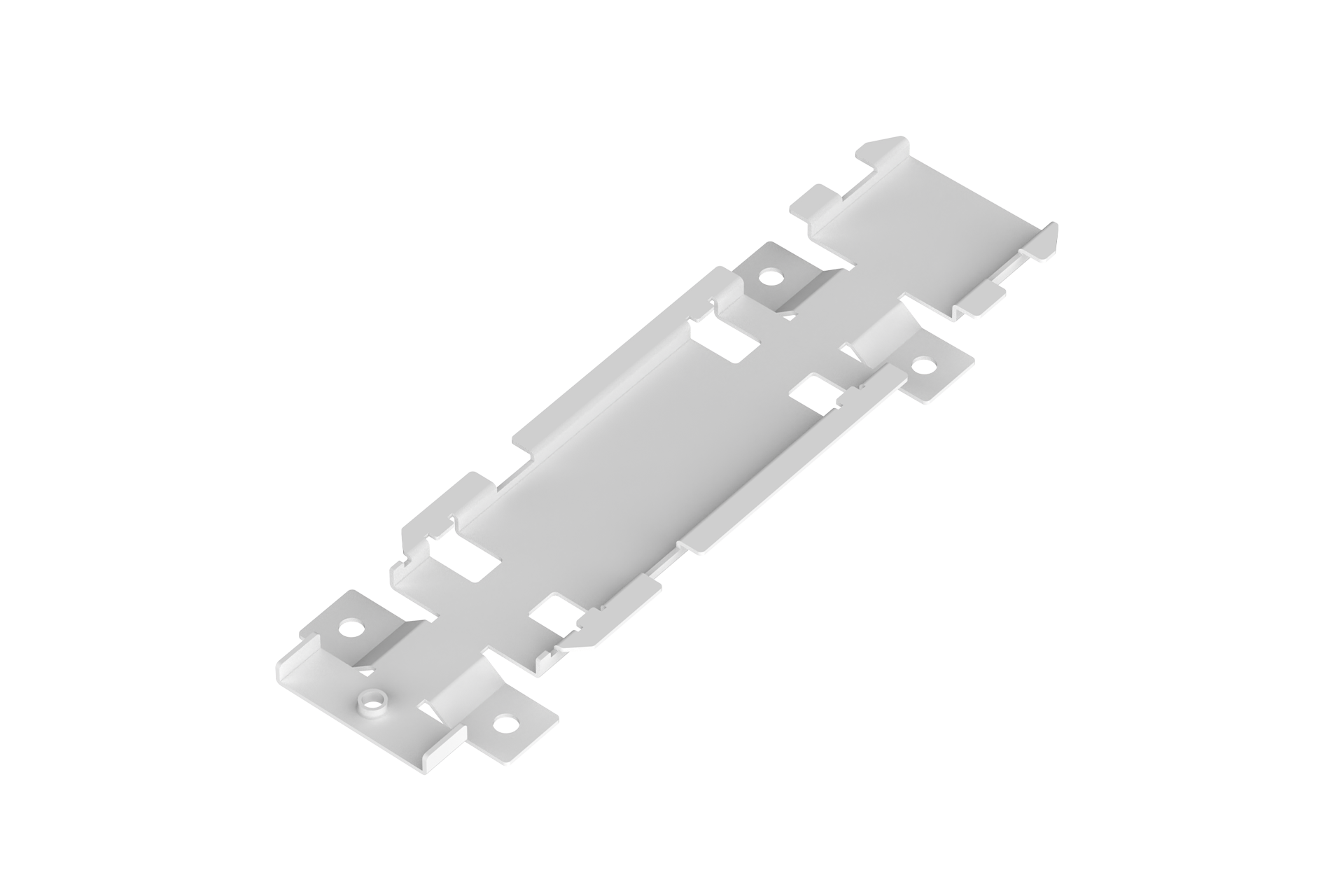

Plastic housing (PC+ASA), 110 × 49.3 × 235 mm, 315 g, mounting bracket included

OPERATING ENVIRONMENT
Operating temperature -40 °C to 75 °C, humidity 10% to 90% non-condensing, IP55

REGULATORY & TYPE APPROVALS
CE, UKCA, CB, RCM, WEEE, EAC, UCRF
