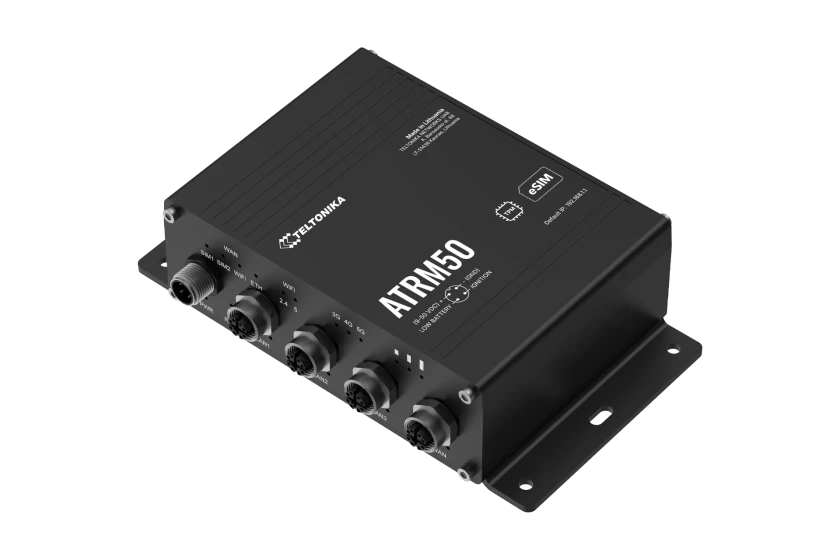

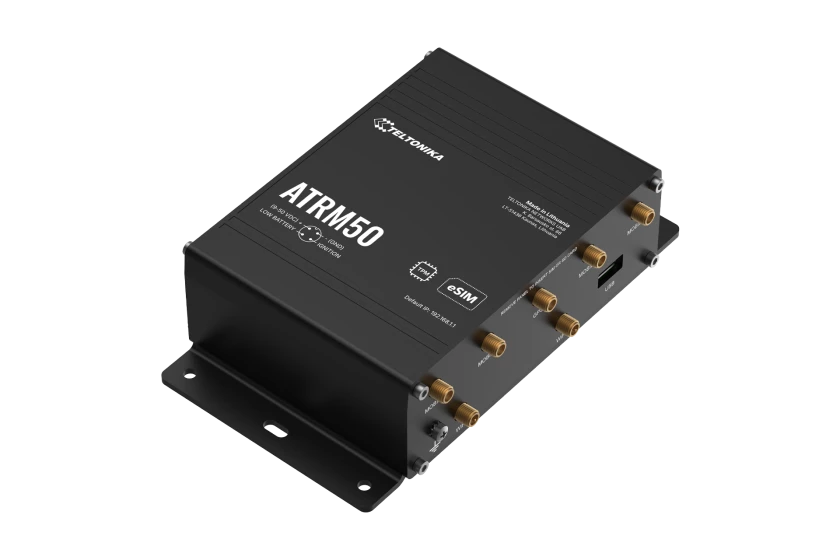

ATRM50

Description

MOBILE MODULE
5G Sub-6 GHz SA, NSA; 2.4/3.4 Gbps DL (4×4 MIMO), 900/550 Mbps UL (2×2 MIMO); 4G LTE DL Cat 19 1.6 Gbps (4×4 MIMO), UL Cat 18 200 Mbps; 3G 42 Mbps DL / 5.76 Mbps UL

3GPP RELEASE
Release 16

ESIM
Consumer-type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans

SIM SWITCH
Dual SIM cards and eSIM, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection failure

STATUS
IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC

SMS
SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS auto-reply, SMPP

USSD
Supports sending and reading Unstructured Supplementary Service Data messages

BLOCK / ALLOW LIST
Operator block and allow list by country or individual operators

MULTIPLE PDN
Support for different PDNs for multiple network access and services

BAND MANAGEMENT
Band lock, used band status display

SIM IDLE PROTECTION SERVICE
Periodic switching to unused SIM to prevent SIM blocking

SIM PIN CODE MANAGEMENT
Set, change, or disable SIM PIN code

APN
Automatic APN configuration

BRIDGE
Direct bridge connection between mobile ISP and LAN device

PASSTHROUGH
Mobile WAN IP address assigned directly to LAN device

FRAMED ROUTING
Support for IP network behind 5G UE

WIRELESS MODE
802.11b/g/n/ac Wave 2 (Wi-Fi 5), up to 867 Mbps, dual band, MU-MIMO

WI-FI SECURITY
WPA2-Enterprise (PEAP), WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, auto cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames

SSID / ESSID
SSID stealth mode, MAC-based access control

WI-FI USERS
Up to 150 simultaneous wireless clients

WIRELESS CONNECTIVITY FEATURES
Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)

WIRELESS MAC FILTER
Allowlist and blocklist

WIRELESS QR CODE GENERATOR
QR-based automatic Wi-Fi access

TRAVELMATE
Forwards Wi-Fi hotspot landing page to subsequent connected device

WAN
1 × WAN port 10/100/1000 Mbps, IEEE 802.3, 802.3u, 802.3az compliance, auto MDI/MDIX

LAN
3 × LAN ports 10/100/1000 Mbps, IEEE 802.3, 802.3u, 802.3az compliance, auto MDI/MDIX

NETWORK
Static IP, DHCP server/client, PPPoE, Dynamic DNS, port forwarding, DMZ, MAC clone, UPnP, VLAN

SECURITY
NAT firewall, Stateful Packet Inspection (SPI), custom and predefined service monitoring, Internet service filtering by domain, keyword or URL, remote management, IP block/allow list, trusted IPs, MAC filtering, SYN flood protection, Ping of Death protection, DNS rebinding protection, DHCP snooping, ARP protection, static ARP, LAN static MAC binding, VLAN
Content filtering with whitelist/blacklist, category-based filtering, keyword-based filtering
DNS security including DNS server settings, DNS proxy, DNS relay, DNS encryption, DNS over HTTPS (DoH), DNS over TLS (DoT), DNS-based content filtering

VPN
PPTP, L2TP, GRE, DMVPN, OpenVPN, WireGuard, IPsec

IOT
MQTT, Modbus TCP, Modbus UDP, Modbus RTU, SNMP, JSON-RPC, REST API, Lua scripting, Node-RED

SYSTEM CHARACTERISTICS
CPU: Quad-core ARM Cortex-A53 1.5 GHz
RAM: 512 MB DDR3
Flash memory: 256 MB NAND
Storage expansion: microSD up to 128 GB
Reset button, real-time clock with battery backup, hardware and software watchdog

POWER
9–36 VDC input, power consumption < 12 W, passive PoE 9–36 VDC, 4-pin industrial power connector

INTERFACES
USB: 1 × USB 2.0
Serial: 1 × RS232, 1 × RS485
GPIO: 4 × digital I/O, 1 × analog input
Audio: 1 × 3.5 mm jack (optional)

LED INDICATORS
Power, status, mobile signal, Wi-Fi, LAN, WAN, VPN, SIM, programmable LEDs

MECHANICAL CHARACTERISTICS
135 × 90 × 45 mm, 450 g, aluminum housing, DIN rail and wall mounting

ENVIRONMENTAL CHARACTERISTICS
Operating temperature -40 °C to +75 °C
Storage temperature -45 °C to +85 °C
Operating humidity 5% to 95% non-condensing

CERTIFICATIONS
CE, FCC, RoHS, WEEE, REACH, E-Mark, CB Scheme, RCM, IC, Anatel, PTCRB, GCF

SAFETY
EN 62368-1, EN 60950-1, IEC 62368-1
