ALTOS

Description

MOBILE MODULE
The device supports 5G NR with download speeds up to 4.0 Gbps and upload speeds up to 900 Mbps. 4G LTE Cat 19 provides downlink up to 1.6 Gbps and uplink up to 200 Mbps. 3G connectivity offers 42 Mbps downlink and 5.76 Mbps uplink.

3GPP RELEASE
Release 17.

STATUS AND MONITORING
Status reporting includes IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI, SINR, RSRP, RSRQ, EC/IO, RSCP), data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC.

SMS
Features include SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS auto-reply, and SMPP.

USSD
Supports sending and reading Unstructured Supplementary Service Data messages.

BLOCK / ALLOW LIST
Operator block or allow list by country or individual operators.

BAND MANAGEMENT
Includes band lock and used band status display.

SIM PIN CODE MANAGEMENT
Enables setting, changing, or disabling the SIM card’s PIN.

APN
Auto APN.

BRIDGE
Direct connection (bridge) between mobile ISP and device on LAN.

PASSTHROUGH
Router assigns its mobile WAN IP address to another device on LAN.

WIRELESS
Wireless mode includes 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), dual band, 2×2 MIMO, Access Point (AP).

WI-FI SECURITY
WPA-PSK, WPA2-PSK, WPA3-SAE, WPA-EAP, WPA2-EAP, WPA3-EAP, OWE; CCMP and TKIP ciphers.

WI-FI USERS
Up to 128 simultaneous connections.

WIRELESS QR CODE GENERATOR
Once scanned, a user will automatically enter your network without needing to input login information.

ETHERNET
LAN: 1 × LAN port 10/100/1000 Mbps, IEEE 802.3/u/az standards, supports auto MDI/MDIX crossover.
WAN/LAN: 1 × WAN/LAN port 10/100/1000/2500 Mbps, IEEE 802.3/u/az standards, supports auto MDI/MDIX crossover.

NETWORK
Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing.
Protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On LAN (WOL).
VoIP passthrough: H.323 and SIP-ALG NAT helpers.
Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection.

FIREWALL
Port forward, traffic rules, custom rules, TTL target customization. Status page shows all firewall statistics, rules, and rule counters.

NETWORK TOPOLOGY
Visual representation of the network, showing device connections.

DHCP
Static/dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases (MAC with wildcards).

DDNS
Supported >77 service providers; others configurable manually.

NETWORK BACKUP
Mobile, VRRP, Wired options, each usable as automatic failover.

LOAD BALANCING
Balance Internet traffic over multiple WAN connections.

HOTSPOT
Captive portal, internal/external Radius server, Radius MAC authentication, SMS authorization, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual/group limitations, user management, 9 default customizable themes, option to upload/download custom hotspot themes.

SSHFS
Possibility to mount remote file system via SSH protocol.

TRAFFIC MANAGEMENT
Real-time monitoring, wireless signal charts, traffic usage history.

SECURITY
Authentication: Pre-shared key, digital certificates, X.509, TACACS+, internal/external RADIUS authentication, IP/login block, time-based login blocking, built-in random password generator.
Firewall: Preconfigured rules via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64.
Attack prevention: DDoS (SYN flood, SSH, HTTP/HTTPS), port scan (SYN-FIN, SYN-RST, X-mas, NULL, FIN).
VLAN: Port and tag-based separation.
Mobile quota control: Custom data limits for SIM card.
Web filter: Blacklist/Whitelist.
Access control: Flexible SSH, Web, CLI, Telnet access.
Certificate Manager: Let’s Encrypt and SCEP certificate generation.

VPN
OpenVPN: Multiple clients/server simultaneously, 27 encryption methods.
IPsec: XFRM, IKEv1, IKEv2, 14 encryption methods (3DES, DES, AES128/192/256, AES-GCM variants).
GRE: GRE tunnel, GRE over IPsec.
PPTP, L2TP: Client/Server, L2TPv3, L2TP over IPsec.
Stunnel: TLS encryption for existing clients/servers.
DMVPN: Scalable IPsec VPN, Phase 2/3, Dual Hub.
SSTP: Client support.
ZeroTier, WireGuard, Tinc, Tailscale: VPN client/server support with encryption and authentication.

INDUSTRIAL PROTOCOLS
BACnet: Router mode, USB and TCP, multiple BACnet/IP interfaces, network number assignment, BDT entries for BBMD.
OPC UA: Client/Server, TCP.
MODBUS: Client/Server, custom register blocks, supports INT, UINT, float, HEX, ASCII formats.
Data to Server: HTTP(S), MQTT, Azure MQTT; parameter extraction from multiple sources with custom LUA scripting.
Modbus MQTT Gateway: Send/receive MODBUS data via MQTT broker.
DNP3: Station, Outstation, TCP/USB.
DLMS/COSEM: Client, TCP.
API: Teltonika Web API (beta), configurable endpoints.

MONITORING & MANAGEMENT
WEB UI: HTTP/HTTPS, status, configuration, firmware update, CLI, troubleshoot, logs.
FOTA: Firmware update from server, automatic notifications.
SSH: v1, v2.
SMS: Status/configuration.
Call: Reboot, status, mobile data toggle, output control, Wi-Fi toggle.
Email: Service status alerts.
TR-069: Multiple ACS clients supported.
MQTT: Broker/publisher.
SNMP: v1/v2/v3, Trap, brute force protection.
JSON-RPC: HTTP/HTTPS API.
RMS: Teltonika Remote Management System.
IoT Platforms: ThingWorx, Cumulocity, Azure IoT Hub, AWS IoT Core.

SYSTEM CHARACTERISTICS
CPU: Qualcomm.
RAM: 1 GB LPDDR4.
FLASH: 8 GB eMMC.

FIRMWARE / CONFIGURATION
WEB UI: FW update from file, server check, configuration profiles, backup.
FOTA: Firmware update.
RMS: Update FW/config for multiple devices.
Keep settings: Update FW without losing configuration.
Factory reset: Restores all system settings to default.

FIRMWARE CUSTOMISATION
OS: RutOS (OpenWrt-based Linux).
Languages: Busybox shell, Lua, C, C++.
Development tools: SDK with build environment.
GPL customization: Create custom branded firmware/web page.
Package Manager: Install additional software.

POWER
Connector: Barrel jack.
Input voltage: 12 VDC.
Power consumption: Idle < 8 W, Max < 24 W.

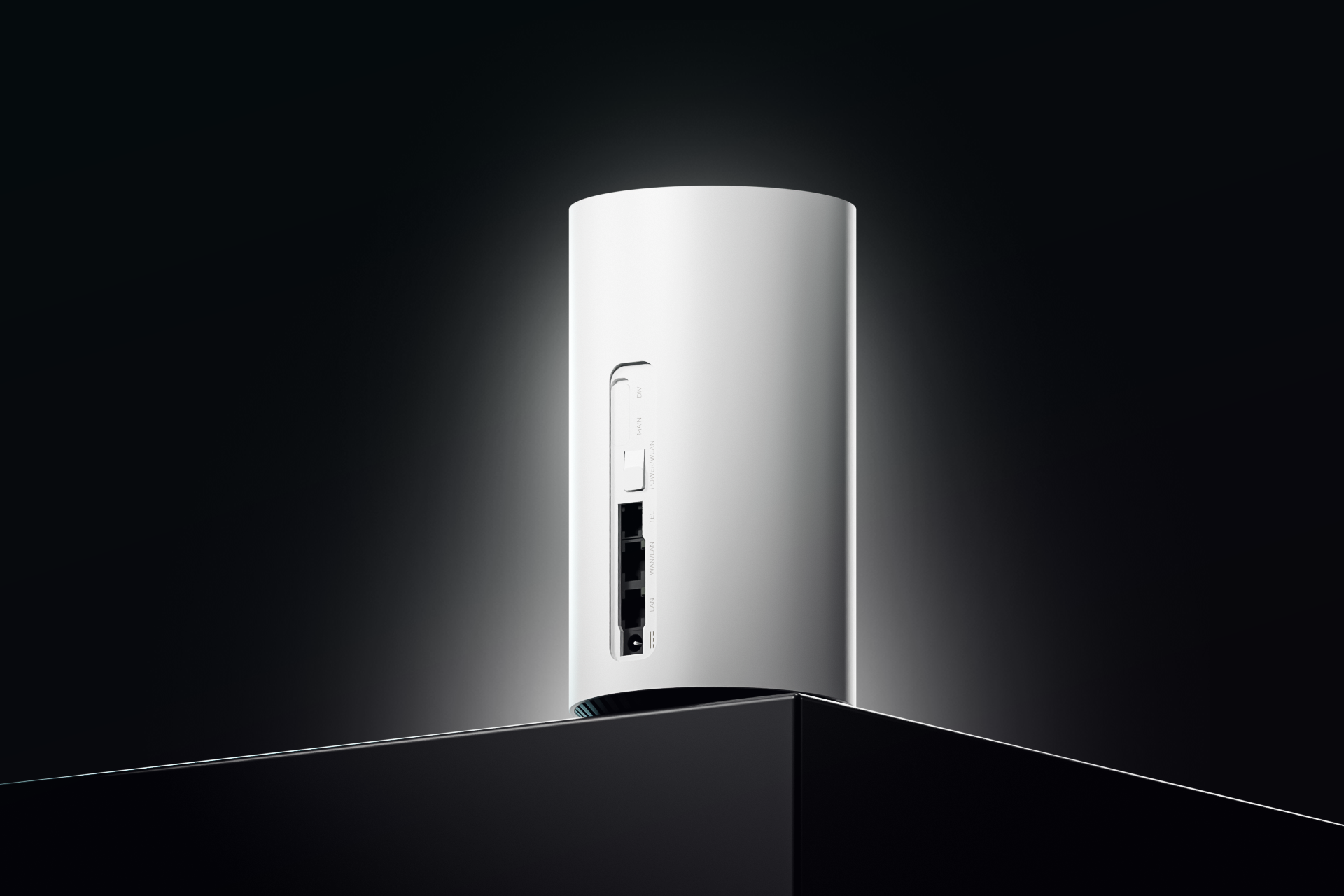

PHYSICAL INTERFACES
Ethernet: 1 × RJ45 10/100/1000 Mbps, 1 × RJ45 10/100/1000/2500 Mbps.
Telephone: 1 × RJ11.

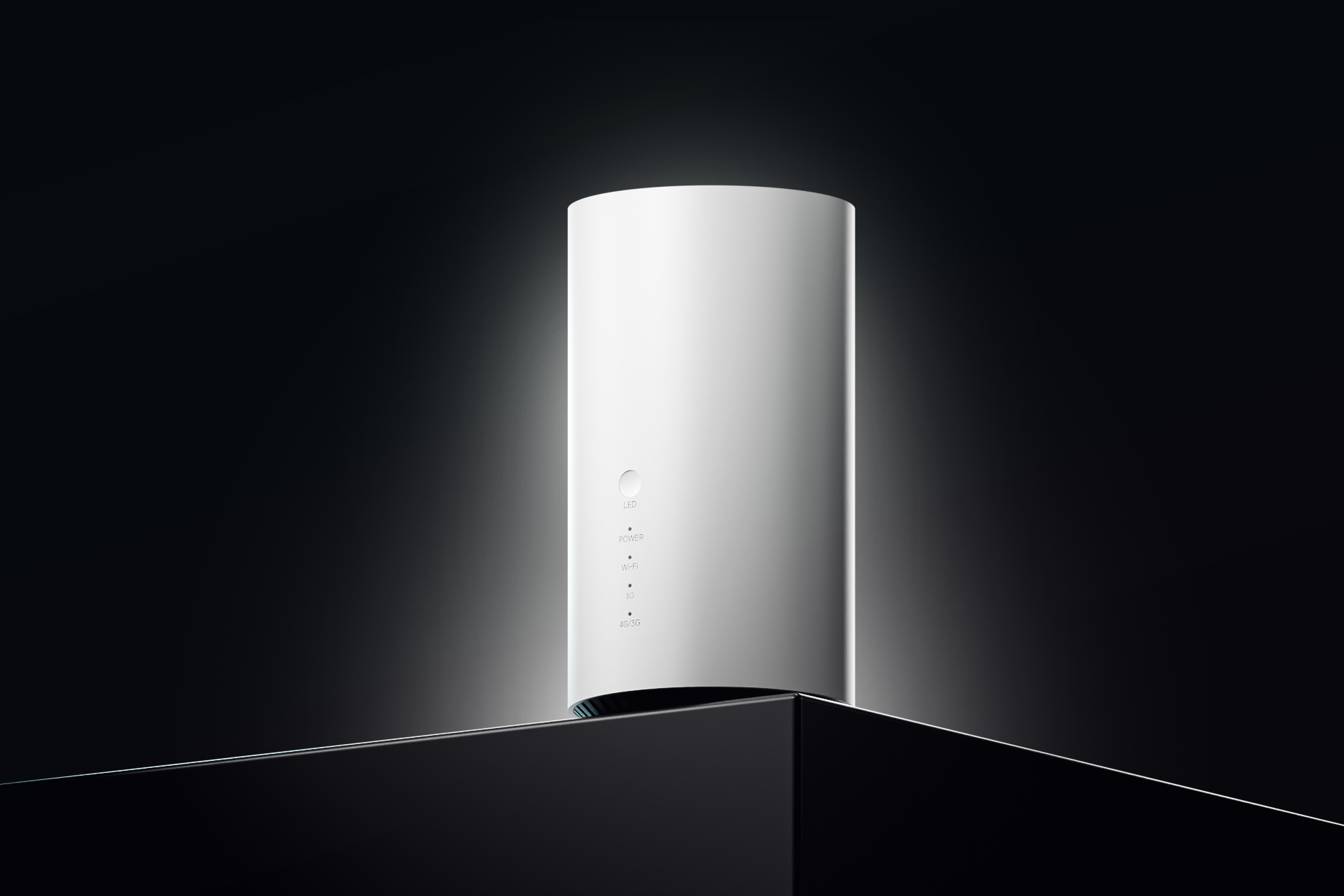

Status LEDs: 1 × Power, 1 × Wi-Fi, 2 × Mobile type, 2 × LAN.

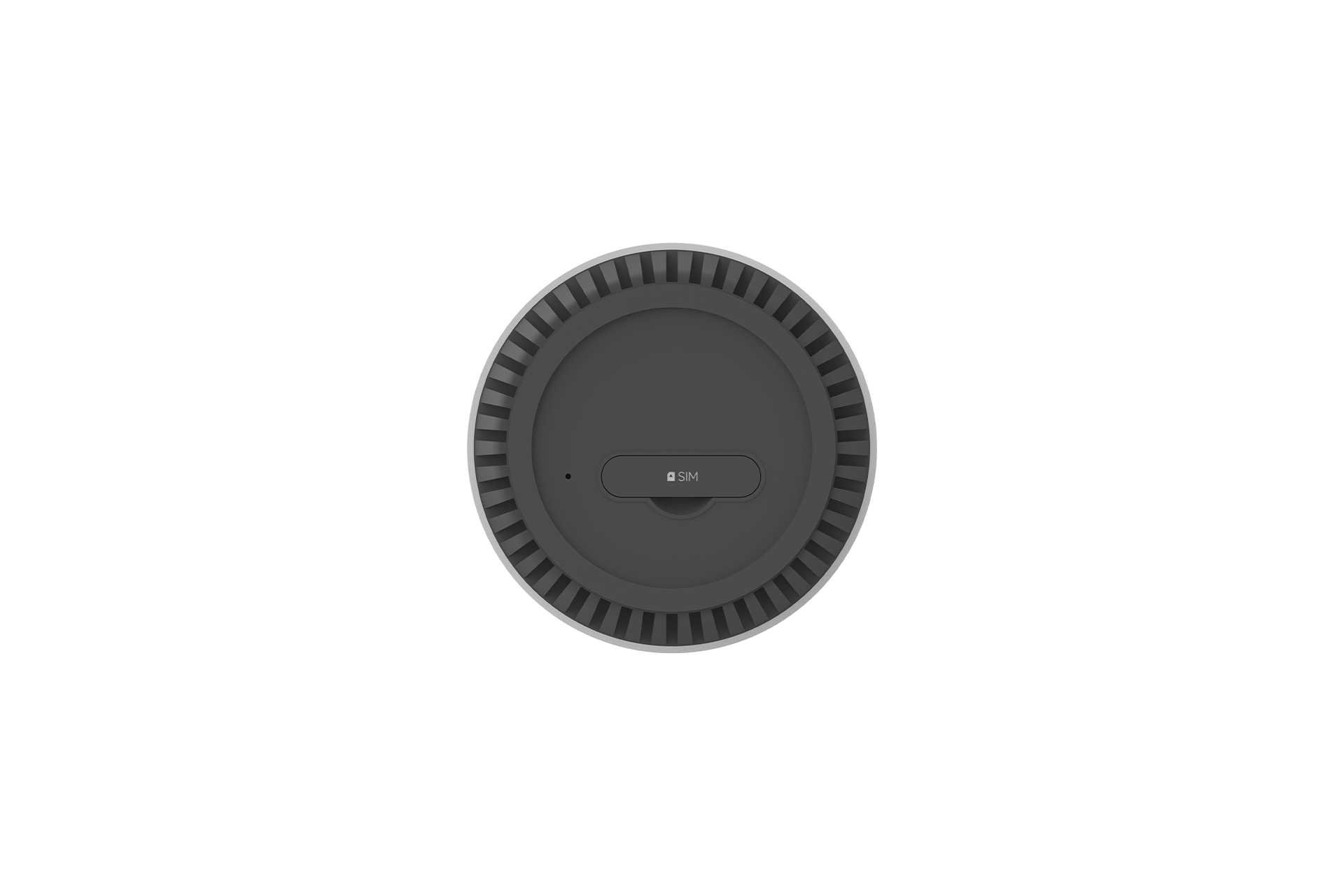

SIM: 1 × Nano SIM (4FF).
Antennas: 6 × Mobile internal, 2 × Wi-Fi internal.
USB: 1 × Micro USB (virtual network interface).
Buttons: Power/WLAN, Reset (Reboot/User default/Factory).

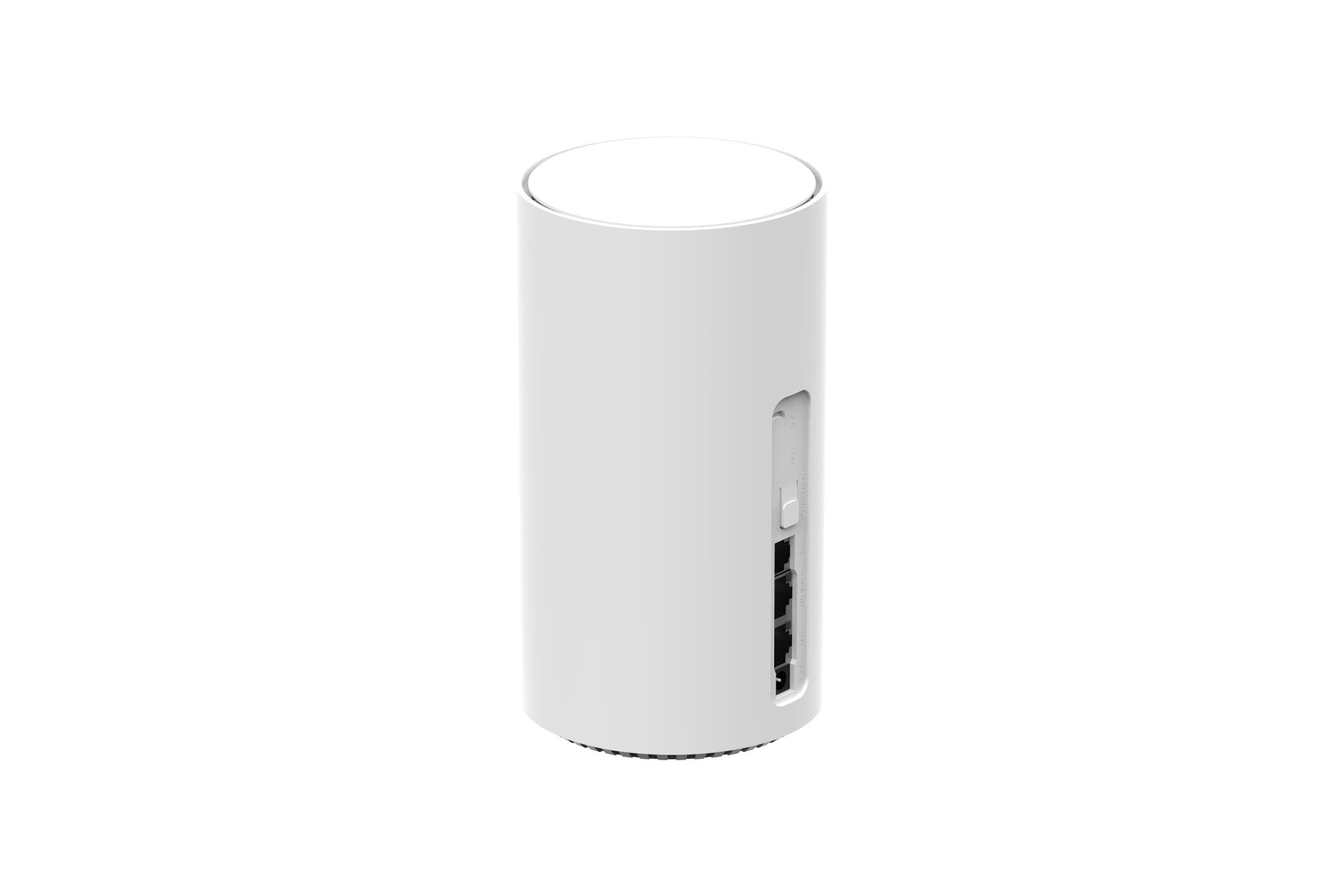

PHYSICAL SPECIFICATION
Casing: Plastic panels.
Dimensions: Ø 100 mm × 185 mm.
Weight: 720 g.
Mounting: Flat surface placement.

OPERATING ENVIRONMENT
Temperature: 0 °C to 45 °C.
Humidity: 5–95% non-condensing.
Ingress protection: IP30.

REGULATORY & TYPE APPROVALS
Regulatory: CE, UKCA, EAC, UCRF, RCM, CB, WEEE.

EMC EMISSIONS & IMMUNITY
Standards: EN 55032:2015 + A11:2020 + A1:2020; EN 55035:2017 + A11:2020; EN 301 489-1 V2.2.3; EN 301 489-3 V2.3.2; EN 301 489-17 V3.2.4; EN 301 489-52 V1.2.1.

RF
Standards: EN 300 328 V2.2.2; EN 301 893 V2.1.1; EN 301 908-1 V15.2.1; EN 301 908-2 V13.1.1; EN 301 908-13 V13.3.1; EN 301 908-25 V15.1.1.

SAFETY
Standards: CE: EN IEC 62311:2020; RCM: AS/NZS 62368.1:2022; CB: EN IEC 62368-1:2020 + A11:2020.
